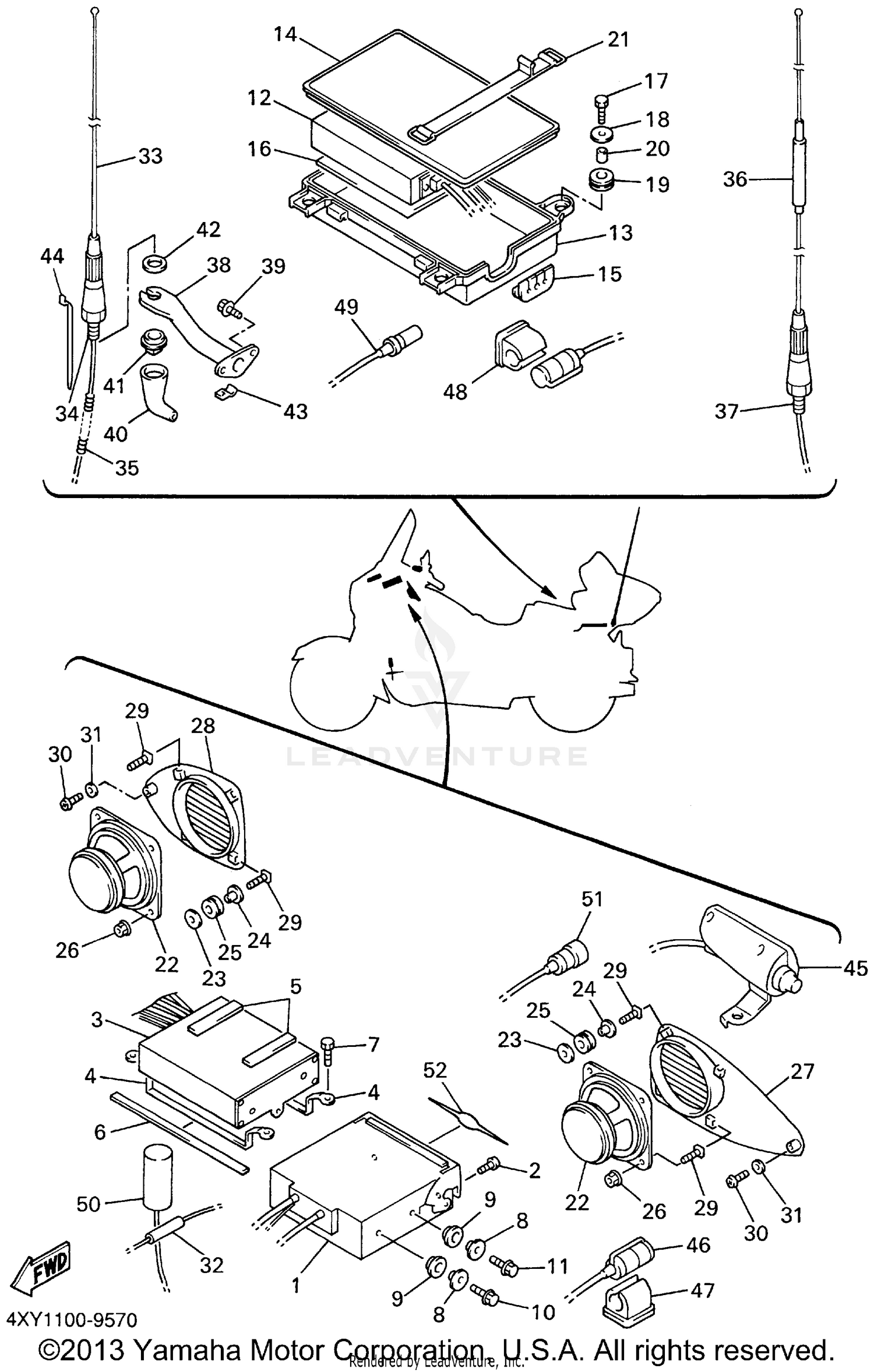

Audio Equipment 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CASSETTE DECK ASSEMBLY
4XY-88150-00-P1
|
$1,011.99 | ||
|
Unavailable |
|||
|
#
CASSETTE DECK ASSEMBLY
4XY-88150-00-P0
|
$1,011.99 | ||
|
Unavailable |
|||
|
#2
SCREW,PANHEAD
98507-04012-00
Superseded by 98517-04012-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#3
AMP. POWER
4XY-88132-00-00
Superseded by 4XY-88132-01-00
|
$1,730.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BRACKET, RADIO
4XY-88114-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
DAMPER
4XY-88158-00-00
|
$0.60 | ||
|
Available to order. Add to View Price |
|||
|
#6
DAMPER
4XY-88149-00-00
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, HEXAGON
97007-05010-00
Superseded by 97027-05010-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR
90387-06024-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
GROMMET
90480-14429-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE
95027-06014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, FLANGE (SMALL HEAD)
95024-06012-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#12
BLACK BOX, CB
4XY-88182-00-00
Superseded by 4XY-88182-01-00
|
$1,036.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
COVER 1
4XY-8818B-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
COVER 2
4XY-8818C-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
GASKET, CB
4XY-8818E-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
SEAT 1
4XY-8818D-00-00
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT
97007-06025-00
Superseded by 97017-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER PLAIN
90201-06380-00
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
|
#19
GROMMET
90480-14450-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
COLLAR
90387-0714B-00
Superseded by 90387-07020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
BAND, BATTERY
4J2-82131-01-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
SPEAKER 1
4XY-88161-00-00
|
$126.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, PLATE
90201-05036-00
Superseded by 90201-061A5-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
COLLAR
90387-06737-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
GROMMET
90480-13163-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT, FLANGE
95707-05500-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
GRILLE, SPEAKER 1
4XY-88163-00-P1
|
$136.99 | ||
|
Unavailable |
|||
|
#
GRILLE, SPEAKER 1
4XY-88163-00-P0
|
$185.99 | ||
|
Unavailable |
|||
|
#28
GRILLE, SPEAKER 2
4XY-88173-00-P0
|
$185.99 | ||
|
Unavailable |
|||
|
#
GRILLE, SPEAKER 2
4XY-88173-00-P1
|
$136.99 | ||
|
Unavailable |
|||
|
#29
BOLT
4XY-28333-00-00
|
$0.85 | ||
|
Available to order. Add to View Price |
|||
|
#30
SCREW, TAPPING
97707-40012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
WASHER
92907-04600-00
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#32
FILTER, NOISE
4XY-88188-00-00
|
$120.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
POLE, ANTENNA
4XY-88141-00-00
|
$151.99 | ||
|
Unavailable |
|||
|
#34
CABLE
4XY-88146-00-00
|
$450.99 | ||
|
Unavailable |
|||
|
#35
TUBE
4XY-82139-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
POLE, CB ANTENNA
4XY-88143-00-00
|
$247.99 | ||
|
Unavailable |
|||
|
#37
EXTENSION, CORD
4XY-88147-00-00
|
$111.99 | ||
|
Unavailable |
|||
|
#38
BRACKET, ANTENNA
4XY-88144-00-00
Superseded by 4XY-88144-01-00
|
$112.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
BOLT, FLANGE (SMALL HEAD)
95024-06012-00
|
$4.15 | ||
|
Unavailable |
|||
|
#40
COVER
4XY-88145-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
SPACER
4XY-8814A-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
DAMPER 2
4XY-8814C-00-00
|
$3.30 | ||
|
Unavailable |
|||
|
#43
CLAMP
90464-05188-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#44
CLAMP
90464-13073-00
Superseded by 90464-15195-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#45
REMOTE CONTROL 1
4XY-88168-00-00
|
$767.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
CORD, HEAD SET 1
4XY-88196-00-00
|
$116.99 | ||
|
Available to order. Add to View Price |
|||
|
#47
HOLDER, CONNECTOR
4XY-88195-00-00
Superseded by 4XY-88195-01-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#48
HOLDER, CONNECTOR
4XY-88195-00-00
Superseded by 4XY-88195-01-00
|
$11.49 | ||
|
Unavailable |
|||
|
#49
CORD, CB
4XY-88186-00-00
Superseded by 4XY-88186-01-00
|
$220.99 | ||
|
Available to order. Add to View Price |
|||
|
#50
CONDENSER, SMOOTHING
1NL-81965-01-00
|
$99.99 | ||
|
Available to order. Add to View Price |
|||
|
#51
CORD, EXTENSION
4XY-88192-00-00
Superseded by 4XY-88192-01-00
|
$116.99 | ||
|
Available to order. Add to View Price |
|||
|
#52
EMBLEM 3D
4XY-2839B-00-00
|
$115.99 | ||
|
Unavailable |
|||
