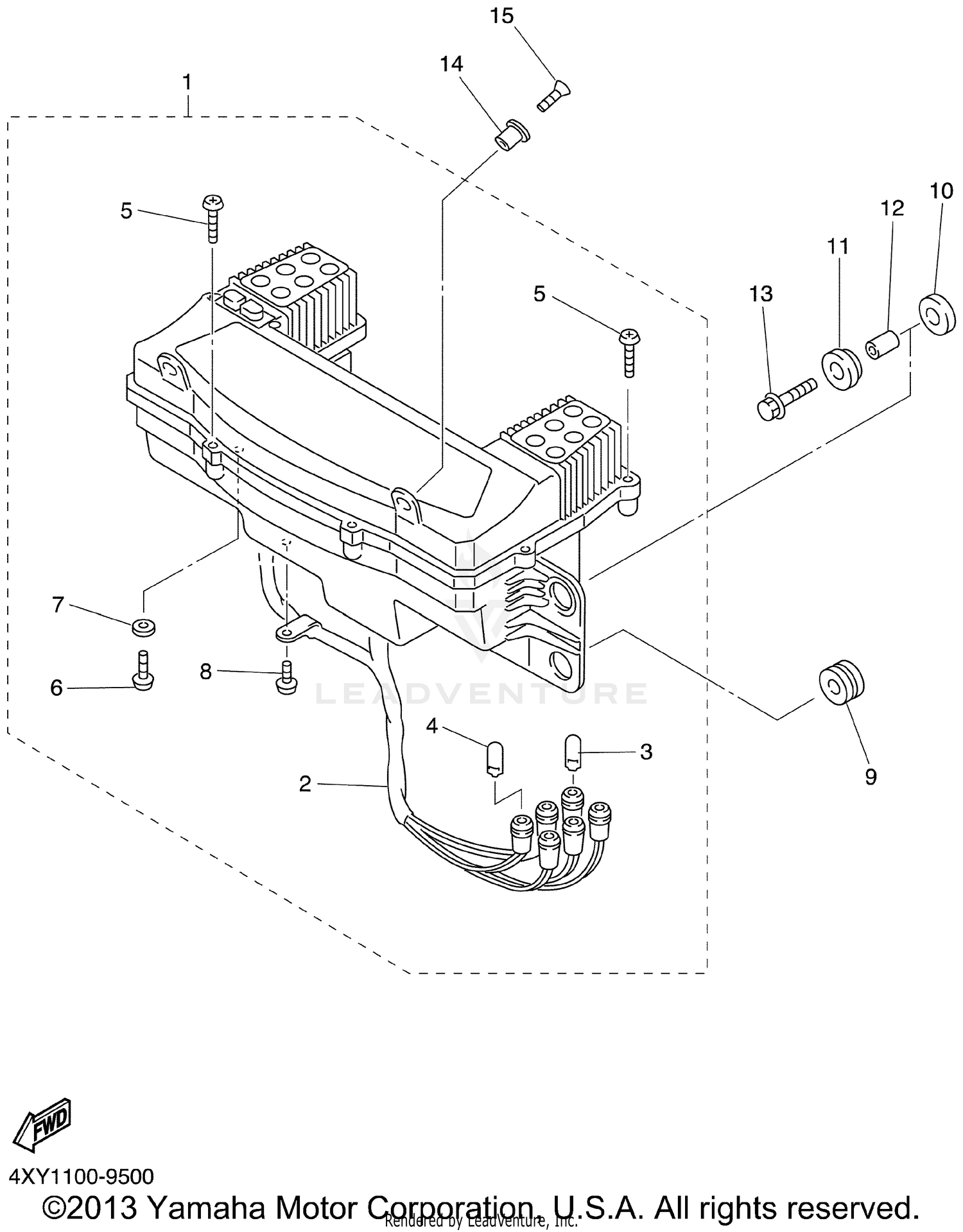

Meter Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPEEDOMETER ASSY (MPH)
4XY-83500-00-00
Superseded by 4XY-83500-01-00
|
$1,183.99 | ||
|
Unavailable |
|||
|
#2
SOCKET CORD ASSY
4XY-83509-00-00
|
$173.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BULB (12V-3W)
2UJ-83517-00-00
Superseded by 42X-83517-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BULB (12V-1.7W, T6.5)
3FV-83517-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW, TAPPING
97707-30014-00
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, PAN HEAD
98507-03010-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, SPRING
92907-03100-00
Superseded by 92990-03100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW, TAPPING
90164-04023-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
GROMMET
90480-14102-00
Superseded by 90480-14023-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
DAMPER
4XY-8338V-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
DAMPER 2
4XY-83393-00-00
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR
90387-064W3-00
Superseded by 90387-06144-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE
95807-06025-00
Superseded by 95817-06025-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT
90179-05523-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, FLAT HEAD
98707-05016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
