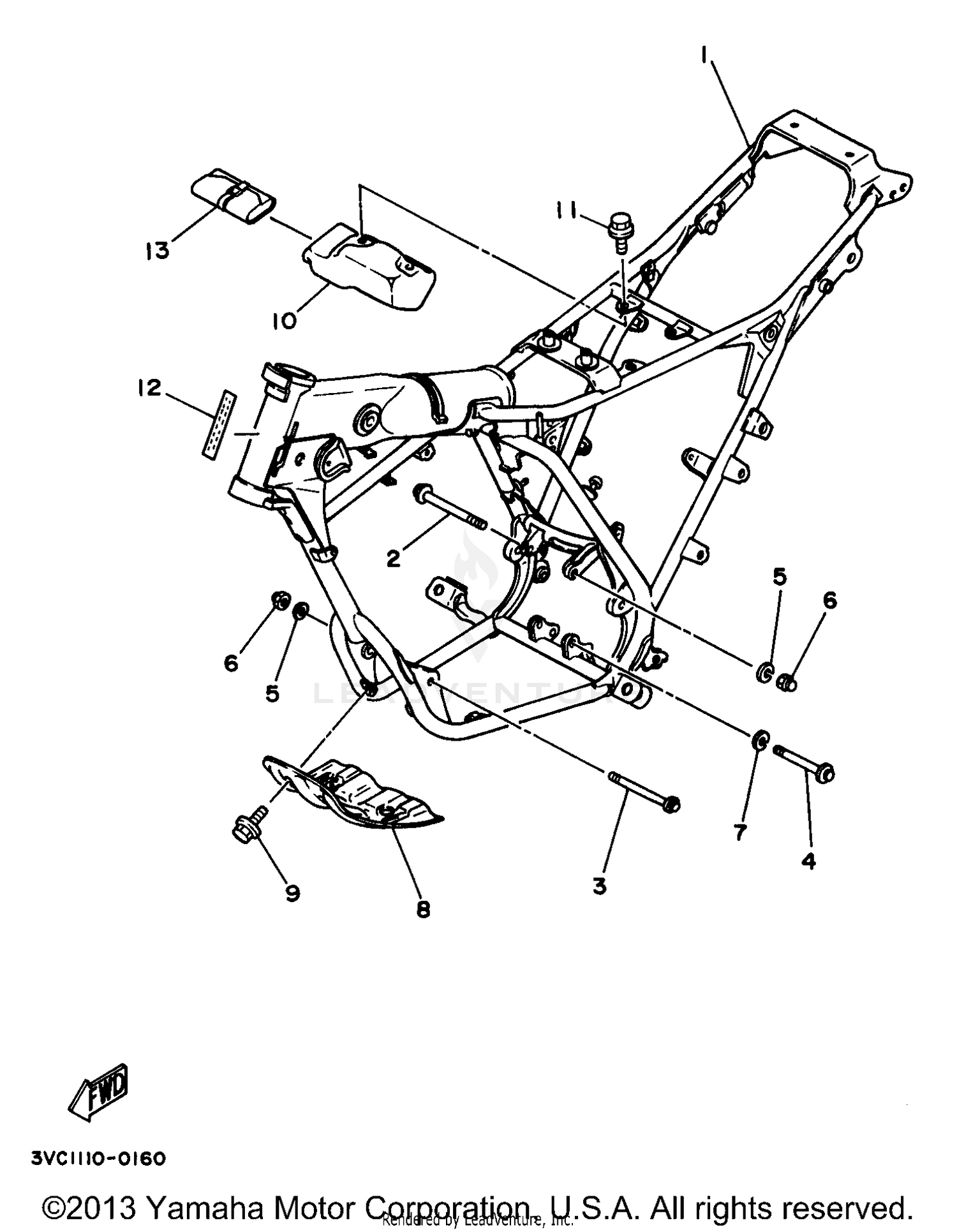

Frame Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRAME COMP.
3VC-F1110-02-35
|
$1,474.99 | ||
|
Unavailable |
|||
|
#2
BOLT, FLANGE
90105-08099-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, FLANGE
90105-08120-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, WASHER BASED
90105-10037-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, SPRING
92907-08100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT
90179-08859-00
|
$0.05 | ||
|
Unavailable |
|||
|
#7
WASHER, SPRING
92907-10100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
PROTECTOR, ENGINE
5L9-F1471-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#9
BOLT, WITH WASHER
97502-06212-00
|
$0.31 | ||
|
Unavailable |
|||
|
#10
BOX COMP.
5L9-F1170-00-00
|
$24.99 | ||
|
Unavailable |
|||
|
#11
BOLT, HEXAGON W/W
97502-06510-00
Superseded by 97E95-06510-00
|
$0.75 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLATE, EPA U50
3VC-2179X-00-00
|
$15.49 | ||
|
Unavailable |
|||
|
#13
TOOL KIT
5L9-F8100-20-00
Superseded by 4VW-F8100-01-00
|
$73.99 | ||
|
Unavailable |
|||
