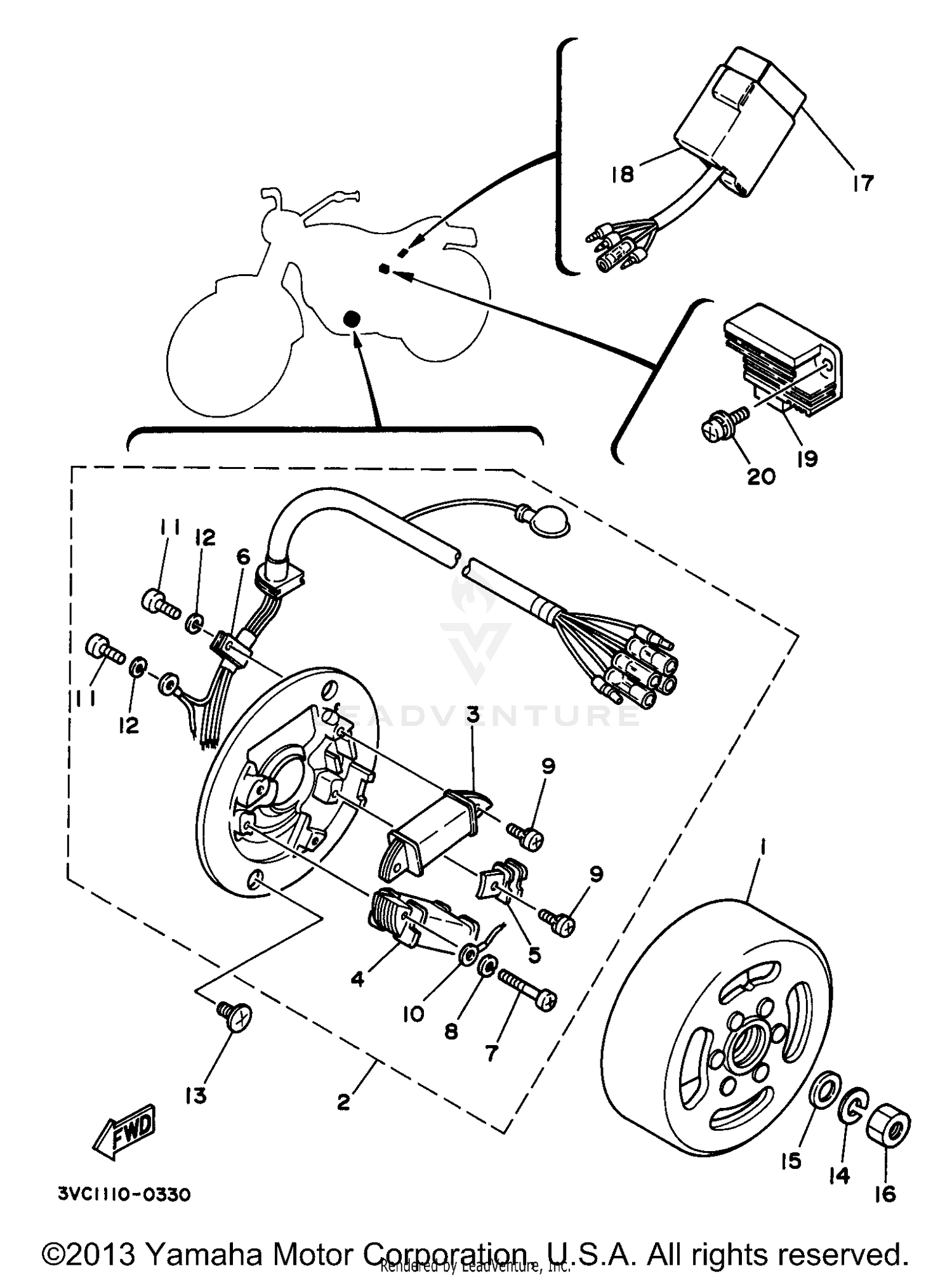

Generator Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
ROTOR ASSEMBLY
23K-H5550-00-00
|
$410.99 | ||
|
Unavailable |
|||
|
#2
BASE ASSEMBLY
42L-H5560-00-00
|
$313.99 | ||
|
Unavailable |
|||
|
#3
COIL, CHARGE
4Y4-85520-M0-00
Superseded by 4Y4-85520-M1-00
|
$44.99 | ||
|
Unavailable |
|||
|
#4
COIL, LIGHTING 1
42L-H1313-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
COIL, PULSER
23L-85580-M0-00
|
$64.99 | ||
|
Unavailable |
|||
|
#6
CLAMP
90461-05036-00
|
$1.85 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW, PAN HEAD
98502-04030-00
Superseded by 98507-04030-00
|
$1.55 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, SPRING
92902-04100-00
Superseded by 92990-04100-00
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW,PANHEAD
97602-04112-00
Superseded by 98517-04012-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#10
TERMINAL, EARTH 2
2H3-H5569-00-00
|
$3.40 | ||
|
Unavailable |
|||
|
#11
SCREW, PAN HEAD
98502-04008-00
Superseded by 98580-04008-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, SPRING
92902-04100-00
Superseded by 92990-04100-00
|
$0.80 | ||
|
Unavailable |
|||
|
#13
SCREW, TAPPING
97702-06012-00
|
|||
|
Unavailable |
|||
|
#14
WASHER, SPRING
92902-12100-00
Superseded by 92990-12100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLATE
90201-12593-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, HEXAGON
90170-12067-00
Superseded by 90170-12347-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
C.D.I. UNIT ASSEMBLY
23K-85540-M0-00
|
$132.99 | ||
|
Unavailable |
|||
|
#18
BAND
23K-H5546-01-00
|
$9.56 | ||
|
Unavailable |
|||
|
#19
RECTIFIER/REG ASSEMBLY
22J-81960-60-00
Superseded by 22J-81960-92-00
|
$119.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW, PAN HEAD WITH WASHER
97602-05316-00
Superseded by 97602-05316-09
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
