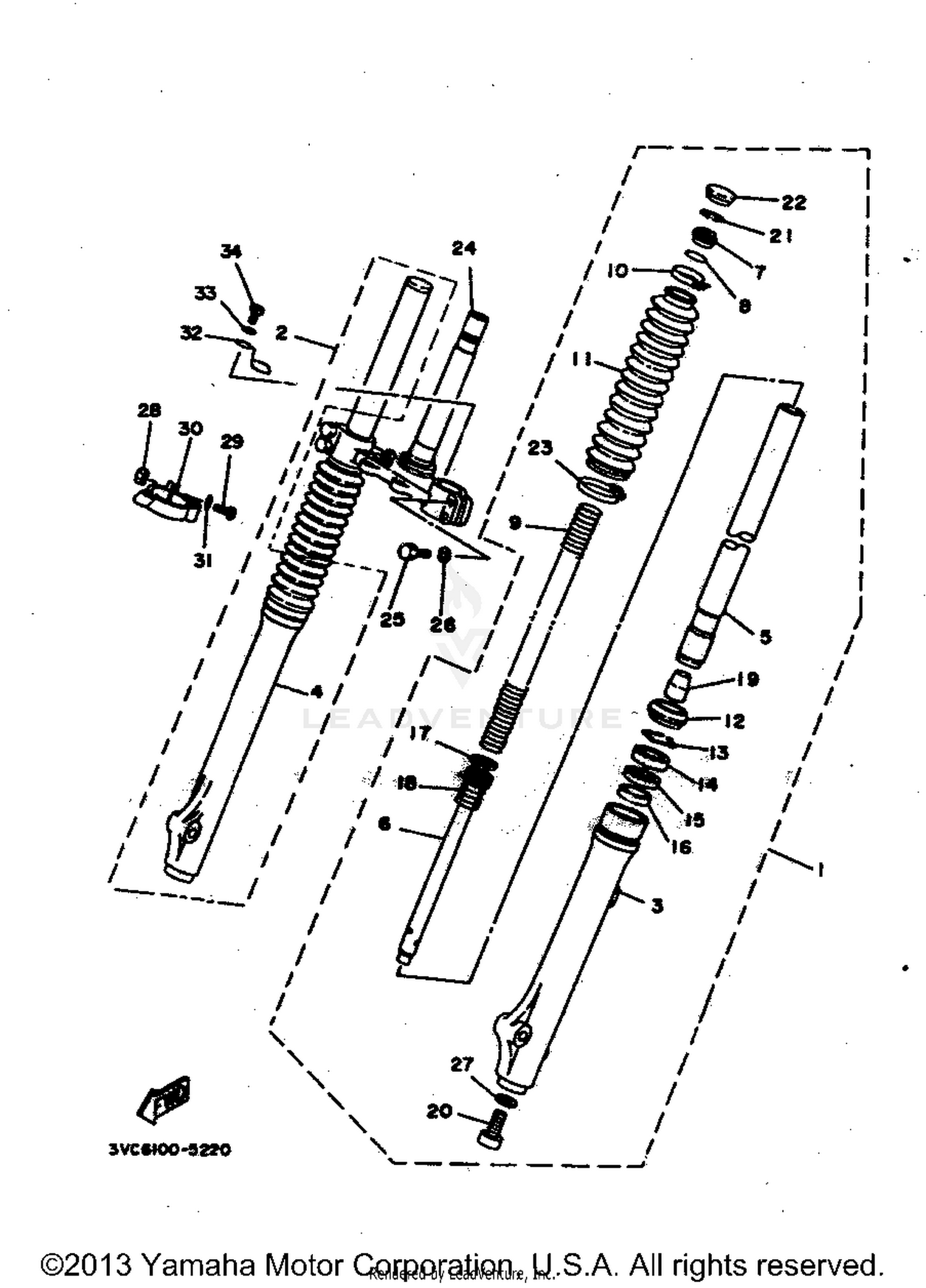

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FORK ASSEMBLY (L.H)
2TW-F3102-F0-00
|
$502.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
FRONT FORK ASSEMBLY (R.H)
2TW-F3103-F0-00
|
$453.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
TUBE, OUTER (LEFT)
2TW-F3126-A0-00
|
$296.99 | ||
|
Unavailable |
|||
|
#4
TUBE, OUTER (RIGHT)
2TW-F3136-A0-00
|
$167.99 | ||
|
Unavailable |
|||
|
#5
INNER TUBE COMP.1
2TW-F3110-A0-00
|
$191.99 | ||
|
Unavailable |
|||
|
#6
PISTON, FRONT FORK
2TW-F3171-A0-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, CAP
2TW-F3111-A0-00
|
$17.49 | ||
|
Unavailable |
|||
|
#8
O-RING
35E-23114-00-00
Superseded by 93210-24709-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, FRONT FORK
2TW-F3141-A0-00
|
$45.99 | ||
|
Unavailable |
|||
|
#10
BAND
4AN-F3192-00-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOOT
2TW-F3191-F0-00
|
$118.99 | ||
|
Unavailable |
|||
|
#12
SEAL, DUST
2TW-F3144-A0-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
RING, SNAP
34X-23156-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
OIL SEAL
2TW-F3145-A0-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
O-RING
10V-23147-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
METAL, SLIDE 1
10V-23125-00-00
|
$7.32 | ||
|
Unavailable |
|||
|
#17
RING, PISTON FRONT FORK (2F3-
1T4-23157-01-00
|
$11.99 | ||
|
Unavailable |
|||
|
#18
SPRING, REBOUND
2TW-F3151-A0-00
|
$11.49 | ||
|
Unavailable |
|||
|
#19
SPACER, OIL LOCK
4AN-F3166-00-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, HEXAGON SOCKET HEAD
3M7-23181-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
RING, SNAP
1UA-23153-00-00
|
$4.73 | ||
|
Available to order. Add to View Price |
|||
|
#22
CAP, FRONT FORK
2TW-F3168-A0-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
BAND
4AN-F3192-10-00
|
$2.13 | ||
|
Available to order. Add to View Price |
|||
|
#24
UNDER BRACKET COMP
2TW-F3340-01-33
Superseded by 2TW-F3340-10-35
|
$367.99 | ||
|
Unavailable |
|||
|
#25
BOLT
97313-08030-00
Superseded by 97013-08030-00
|
$2.44 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, SPRING
92902-08100-00
Superseded by 92907-08100-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
GASKET
90201-10801-09
Superseded by 509-23158-L0-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
NUT
95380-05600-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
SCREW, PAN HEAD
98580-05020-00
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#30
HOLDER, CABLE
4AN-F3317-00-00
Superseded by 34X-23317-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
WASHER, PLAIN
92990-05200-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#32
GUIDE, CABLE
4AN-F331E-00-00
|
$1.75 | ||
|
Available to order. Add to View Price |
|||
|
#33
WASHER, SPRING
92906-06100-00
Superseded by 92907-06100-00
|
$4.16 | ||
|
Available to order. Add to View Price |
|||
|
#34
SCREW,PAN
98516-06012-00
Superseded by 98517-06012-00
|
$3.70 | ||
|
Available to order. Add to View Price |
|||
