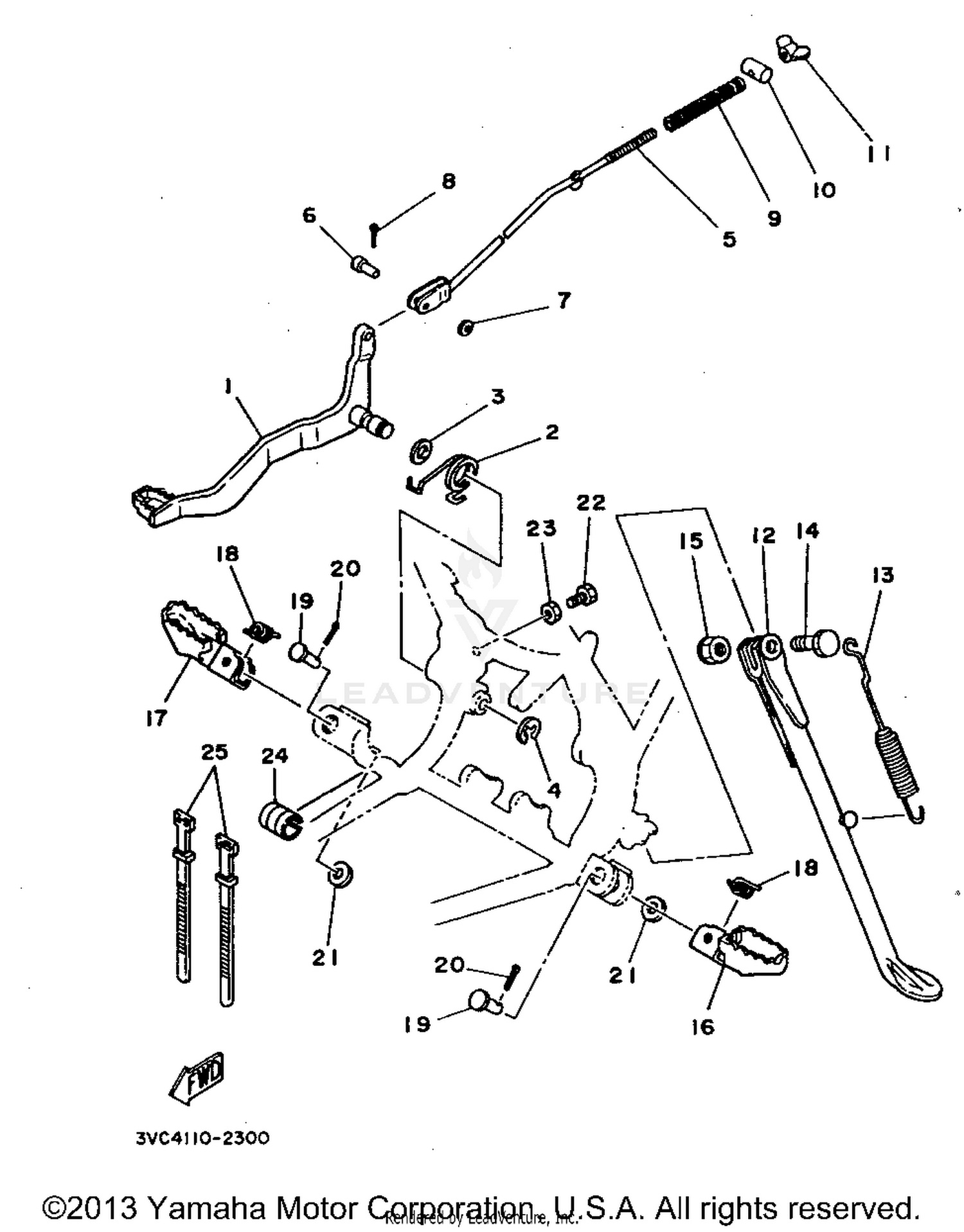

Stand - Footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL, BRAKE
5L9-F7211-01-00
|
$57.99 | ||
|
Unavailable |
|||
|
#2
SPRING, TORSION
90508-32354-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, PLATE
90201-14212-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
CIRCLIP
93430-10801-09
Superseded by 99006-10600-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
ROD, BRAKE
1W2-27231-00-00
|
$14.49 | ||
|
Unavailable |
|||
|
#6
PIN, CLEVIS
90240-06006-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER
92907-06200-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIN. COTTER
91401-25020-00
Superseded by 91490-25020-00
|
$3.12 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, COMPRESSION
90501-10801-09
Superseded by 90501-10W00-00
|
$2.75 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN
90249-12800-09
Superseded by 90249-12008-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT
90179-06411-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
STAND, SIDE
2TW-F7311-00-00
|
$82.99 | ||
|
Unavailable |
|||
|
#13
SPRING, TENSION
90507-29008-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT
90109-10622-09
Superseded by 90109-10W14-00
|
$1.90 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT,SELF-LOCKING
90185-10802-00
|
|||
|
Unavailable |
|||
|
#16
FOOTREST 1
4AN-F7411-00-00
|
$16.99 | ||
|
Unavailable |
|||
|
#17
FOOTREST 2
4AN-F7421-00-00
|
$15.99 | ||
|
Unavailable |
|||
|
#18
SPRING, TORSION
90508-20023-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
PIN, CLEVIS
91702-08039-09
Superseded by 91701-08039-00
|
$4.30 | ||
|
Available to order. Add to View Price |
|||
|
#20
PIN. COTTER
91401-25020-00
Superseded by 91490-25020-00
|
$3.12 | ||
|
Unavailable |
|||
|
#21
WASHER, PLATE
90201-08085-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT
97023-06020-00
Superseded by 97024-06020-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT, U FLANGE
95601-06200-00
Superseded by 95604-06200-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
DAMPER
2TW-F742A-00-00
|
$28.99 | ||
|
Unavailable |
|||
|
#25
BAND, SWITCH CORD
5L9-H3936-00-00
|
$0.85 | ||
|
Unavailable |
|||
