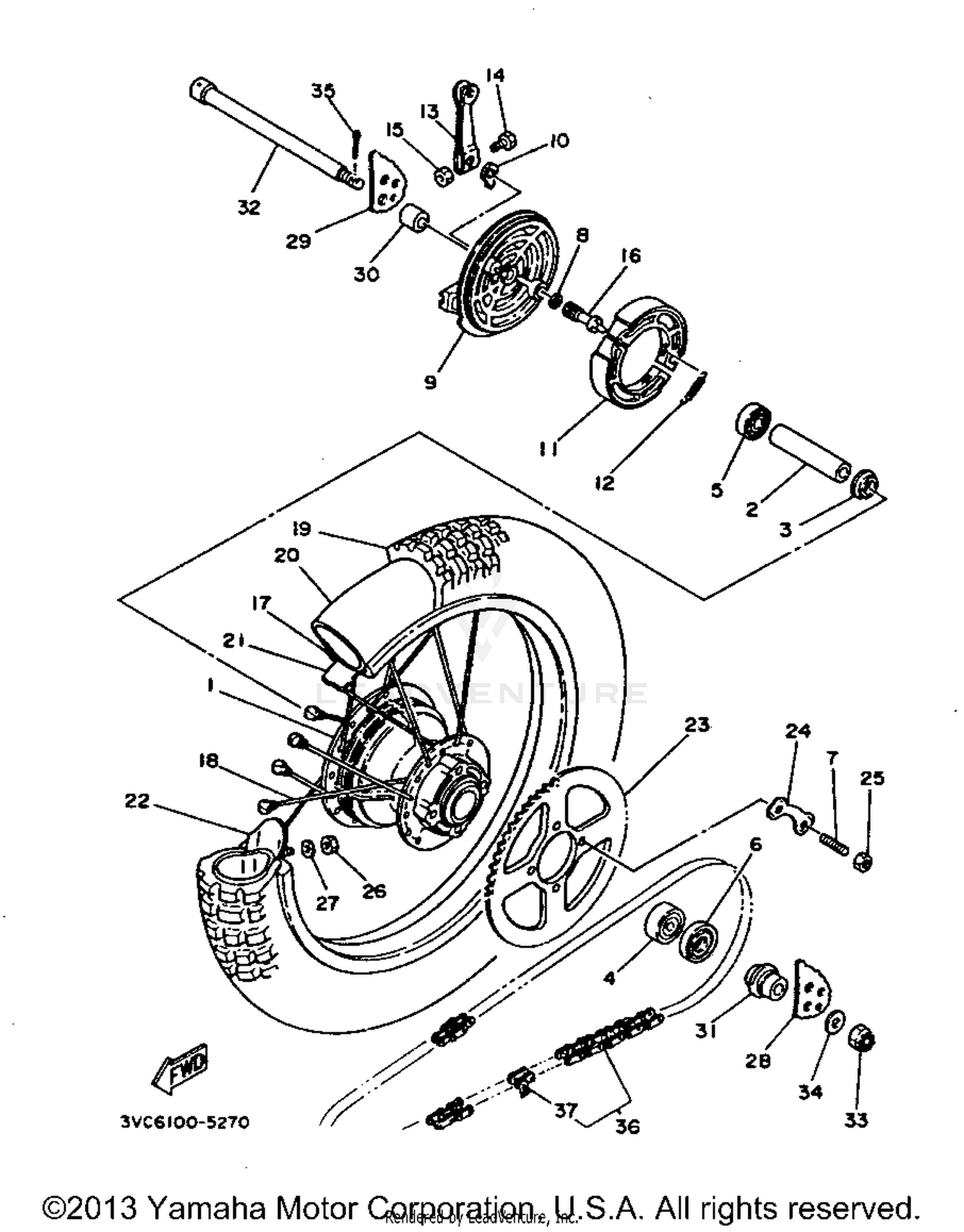

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB, REAR
10V-25311-00-98
|
$249.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPACER
90560-15313-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
FLANGE, SPACER
146-25115-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING
93306-30202-00
Superseded by 93306-30212-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BEARING
93306-20209-00
Superseded by 93306-20205-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
OIL SEAL
93106-26005-00
|
$6.75 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, STUD
90116-10390-00
|
$2.70 | ||
|
Available to order. Add to View Price |
|||
|
#8
SEAL, CAMSHAFT
148-25359-00-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLATE, BRAKE SHOE
10V-25321-00-98
|
$135.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLATE, INDICATOR
3Y6-2533A-01-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BRAKE SHOE KIT
3KG-W2536-00-00
Superseded by 3KG-W253E-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPRING, TENSION
90506-15260-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
LEVER, CAMSHAFT 1
1E2-25155-00-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT
90101-06278-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT
95307-06600-00
Superseded by 95317-06600-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#16
CAMSHAFT
2RH-25351-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
RIM (2.15-18)
94421-18183-00
Superseded by 94421-18854-00
|
$182.99 | ||
|
Unavailable |
|||
|
#18
SPOKE SET, REAR
10V-25304-01-00
|
$81.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
TIRE (100/100-18 59P MT21 TT)
94110-188F3-00
|
$203.15 | ||
|
Unavailable |
|||
|
#20
TUBE (4.10-18)
94211-18850-00
Superseded by 94241-18153-00
|
$93.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BAND, RIM (4.50-18)
94325-18801-09
|
$4.56 | ||
|
Unavailable |
|||
|
#22
SPACER, BEAD
1T2-25394-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
SPROCKET, DRIVEN (51T)
53V-25451-50-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER
10V-25412-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT, WITH WASHER
95701-10500-00
Superseded by 95704-10500-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT
95333-08600-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, PLAIN
92990-08200-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#28
PULLER, CHAIN 1
1W2-25388-01-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
PULLER, CHAIN 2
1W2-25389-01-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
COLLAR
90387-15115-00
|
$13.99 | ||
|
Unavailable |
|||
|
#31
COLLAR, WHEEL
23K-F5383-00-00
|
$12.99 | ||
|
Unavailable |
|||
|
#32
AXLE, WHEEL (2A6-25381-00-00)
5X3-25381-00-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
NUT, CASTLE
90171-14020-00
Superseded by 90171-14056-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
WASHER, PLATE
90201-15238-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
PIN, COTTER
91401-30030-00
Superseded by 91490-30030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
SET, CHAIN
94580-88120-00
Superseded by 94A40-08120-00
|
$70.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
JOINT, CHAIN
94680-30001-00
Superseded by 94682-51001-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
