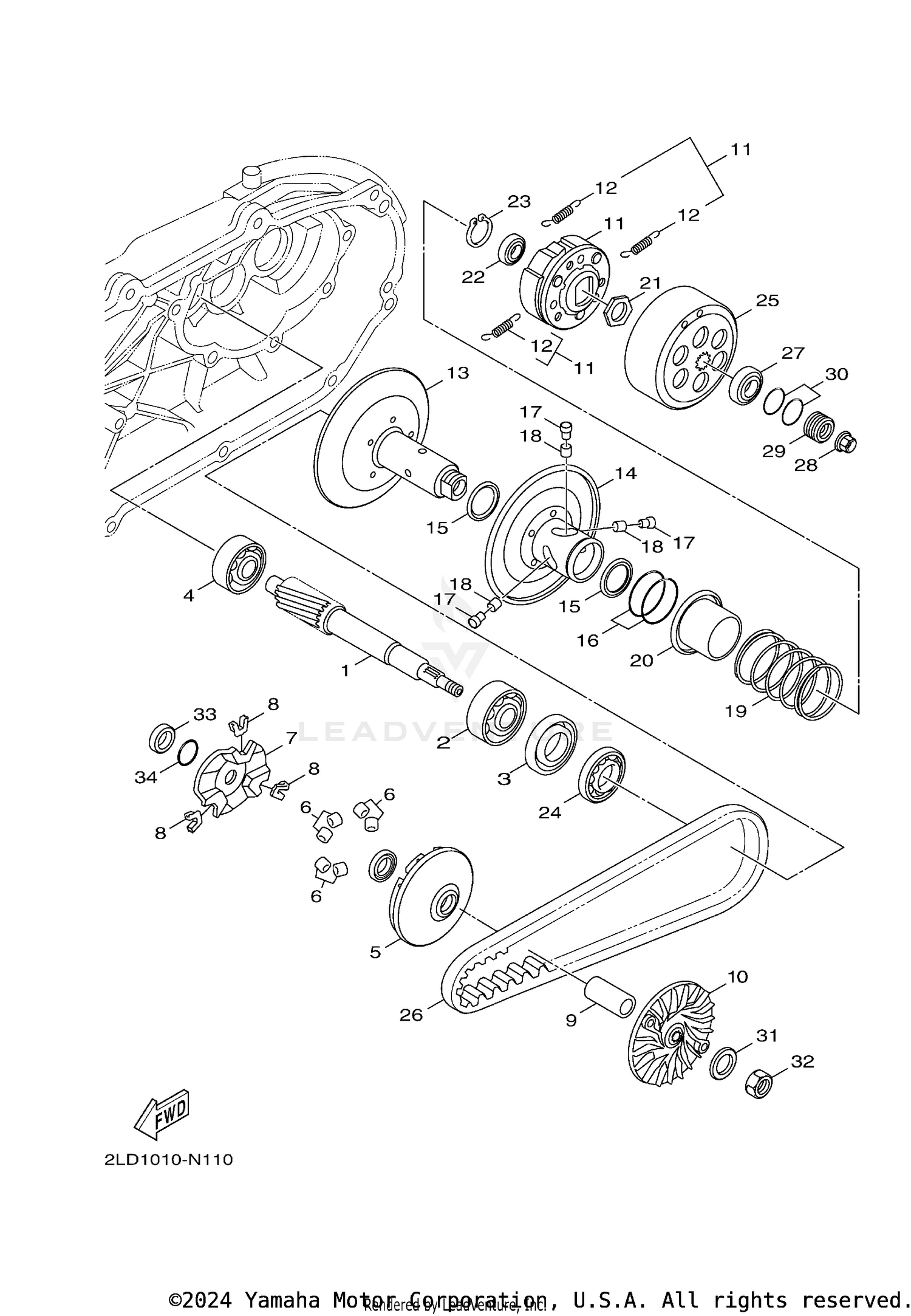

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GEAR, PRIMARY DRIVE
1DK-E6111-00-00
|
$59.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BEARING
93306-272X6-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
OIL SEAL
93102-22820-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING
93306-302Y1-00
Superseded by 93306-30212-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
PRIMARY SLIDING SHEAVE COMP.
1DK-E7620-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
WEIGHT
1DK-E7632-00-00
Superseded by 1DK-E7632-01-00
|
$3.65 | ||
|
Unavailable |
|||
|
#7
CAM
1DK-E7623-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
SLIDER
1DK-E7653-00-00
Superseded by 1DK-E7653-01-00
|
$2.70 | ||
|
Unavailable |
|||
|
#9
COLLAR, GUIDE
1DK-E7674-10-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHEAVE, PRIMARY FIXED
1DK-E7611-00-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLUTCH CARRIER ASSY
1DK-E6620-00-00
|
$86.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPRING, CLUTCH WEIGHT 1
1DK-E6626-00-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#13
SECONDARY FIXED SHEAVE COMP.
1DK-E7660-00-00
Superseded by 1DK-WE766-00-00
|
$82.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SECONDARY SLIDING SHEAVE
1DK-E7670-00-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SEAL
1DK-E7465-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
SEAL
1DK-E7465-10-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#17
PIN, GUIDE
1DK-E7664-00-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#18
COLLAR, GUIDE
1DK-E7674-00-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPRING, SECONDARY
1DK-E7683-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
SEAT, SECONDARY SPRING
1DK-E7684-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT
1DK-E7668-00-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#22
SECONDARY FIXED SHEAVE COMP.
1DK-E7678-00-00
Superseded by 1DK-WE766-00-00
|
$82.99 | ||
|
Unavailable |
|||
|
#23
CIRCLIP
1DK-E5744-00-00
|
$0.76 | ||
|
Unavailable |
|||
|
#24
BEARING
1DK-E7678-10-00
|
$90.28 | ||
|
Unavailable |
|||
|
#25
CLUTCH HOUSING COMP.
1DK-E6611-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
V-BELT
1DK-E7641-00-00
|
$52.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
BEARING
93306-082Y4-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
NUT
90179-10803-00
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#29
SPACER
52S-E7649-00-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
O-RING
93210-28802-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#31
WASHER PLATE
90201-12837-00
|
$3.00 | ||
|
Unavailable |
|||
|
#32
NUT
90179-12019-00
|
$4.45 | ||
|
Unavailable |
|||
|
#33
COLLAR
52S-E6375-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
O-RING
93210-16804-00
|
$0.50 | ||
|
Available to order. Add to View Price |
|||
