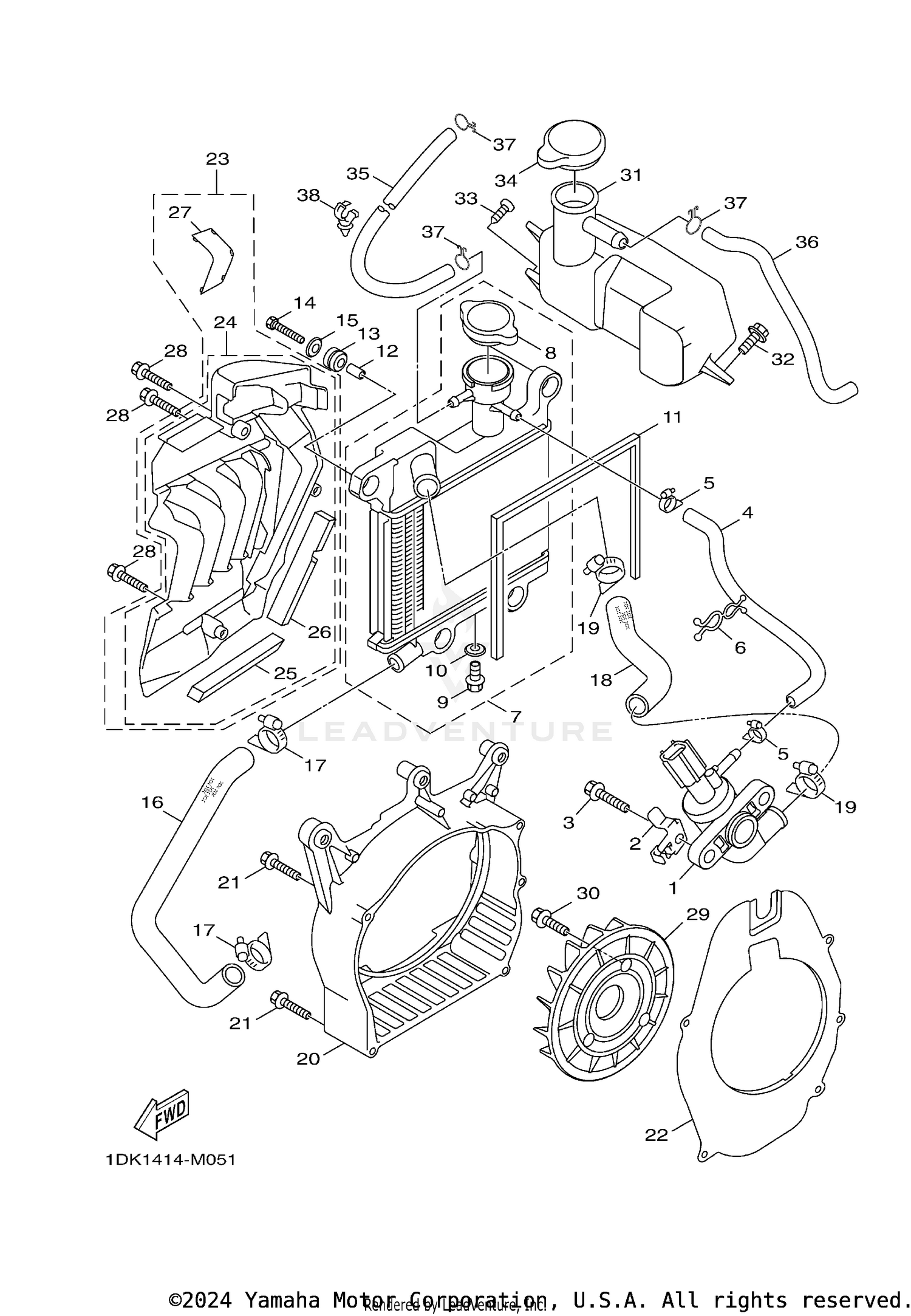

Radiator Hose Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
THERMOSTAT ASSY
52S-12410-00-00
|
$103.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
STAY
1DK-E2443-00-00
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, FLANGE
95022-06020-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIPE, BREATHER
52S-E2463-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLIP
90467-08092-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
CLAMP
90464-26801-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#7
RADIATOR ASSY
1DK-E240A-00-00
|
$93.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
CAP, RADIATOR
1DK-E2462-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT
1DK-E2615-00-00
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#10
O-RING
1DK-E2843-00-00
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
|
#11
DAMPER, AIR SHROUD 2
1DK-E2659-01-00
|
$3.15 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR
90387-08825-00
|
$2.00 | ||
|
Available to order. Add to View Price |
|||
|
#13
GROMMET
90480-16805-00
|
$1.40 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, HEXAGON
97022-06035-00
Superseded by 97014-06035-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER, PLATE
90201-06085-00
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIPE 1
1DK-E2481-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
HOSE CLAMP ASSY
90450-27804-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
PIPE 2
1DK-E2482-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
HOSE CLAMP ASSY
90450-27804-00
|
$1.99 | ||
|
Unavailable |
|||
|
#20
CASE, FAN
1DK-E2621-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE
95022-06055-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#22
PLATE
52S-E2681-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
COVER, RADIATOR
2SW-WE246-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
COVER, RADIATOR
2SW-XE246-00-00
|
$23.84 | ||
|
Unavailable |
|||
|
#25
DAMPER, AIR SHROUD 3
1DK-E2668-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
DAMPER, AIR SHROUD 4
1DK-E2669-00-00
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#27
COVER 5
2SW-E246H-00-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT, FLANGE
95022-06025-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
|
#29
FAN
52S-E2611-00-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT, FLANGE
95812-06016-00
Superseded by 95817-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#31
TANK, RECOVERY
1DK-F1871-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT
90109-06086-00
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#33
SCREW, TRUSS HEAD TAPPING
97707-50012-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#34
CAP
5CA-F1815-00-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#35
HOSE 1
1DK-F247A-00-00
|
$3.85 | ||
|
Available to order. Add to View Price |
|||
|
#36
HOSE 2
1DK-F247B-00-00
|
$1.55 | ||
|
Available to order. Add to View Price |
|||
|
#37
CLIP
90467-090A2-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#38
CLAMP
90464-17003-00
|
$3.40 | ||
|
Available to order. Add to View Price |
|||
