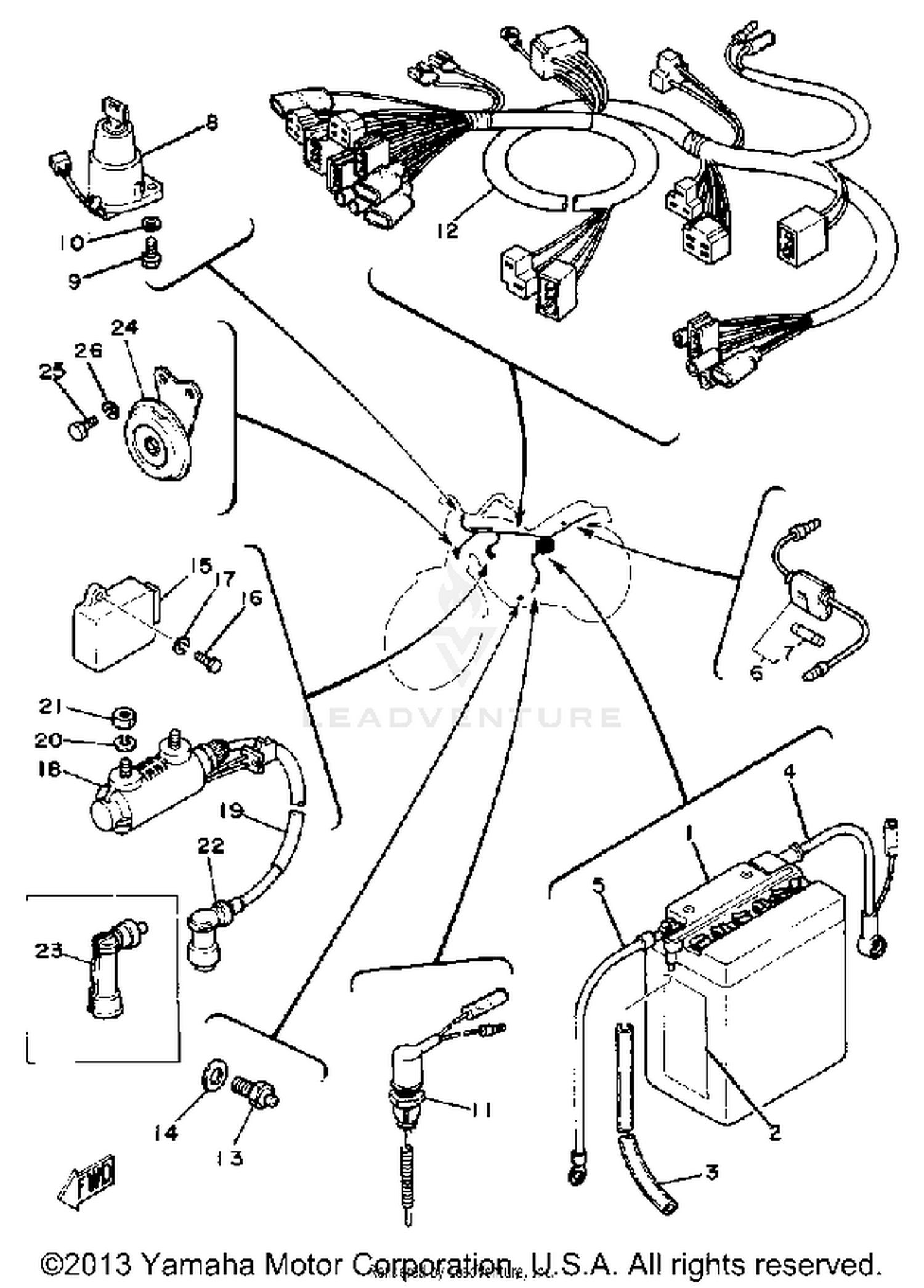

Electrical 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
12N12A-4A-1 YUASA B
BTY-12N12-A4-A1
Superseded by 12N-12A4A-1Y-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
LABEL, BATTERY
118-82141-09-00
Superseded by 40A-82141-G0-00
|
$0.85 | ||
|
Unavailable |
|||
|
#3
PIPE
90445-08336-00
Superseded by 90445-084J0-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
WIRE, PLUS LEAD
3Y6-82115-00-00
|
$39.99 | ||
|
Unavailable |
|||
|
#5
WIRE, MINUS LEAD
5H0-82116-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
FUSE HOLDER ASSY
2UJ-82150-01-00
Superseded by 2UJ-82150-02-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
FUSE (12V-20A)
1A0-82161-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
MAIN SWCH STEER LOCK
3JV-82501-00-00
|
$225.99 | ||
|
Unavailable |
|||
|
#9
BOLT, HEXAGON DEEP R
97313-06016-00
Superseded by 97D95-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE
92901-06600-00
Superseded by 92990-06600-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#11
STOP SWITCH ASSY
2F1-82530-02-00
Superseded by 2F1-82530-03-00
|
$42.99 | ||
|
Unavailable |
|||
|
#12
WIRE HARNESS ASSEMBLY
3Y6-82590-01-00
|
$66.99 | ||
|
Unavailable |
|||
|
#13
NEUTRAL SWITCH ASSY
2H7-82540-00-00
Superseded by 4GY-82540-10-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
GASKET
90430-10171-00
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#15
IGNITOR UNIT ASSEMBLY 1
5V0-82305-10-00
|
$559.99 | ||
|
Unavailable |
|||
|
#16
BOLT, HEXAGON DEEP R
97313-06016-00
Superseded by 97D95-06016-00
|
$2.60 | ||
|
Unavailable |
|||
|
#17
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#18
IGNITION COIL ASS''Y
3Y6-82310-60-00
|
$161.99 | ||
|
Unavailable |
|||
|
#19
CORD, HIGH TENS 1
4X7-82341-00-00
|
$76.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#21
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#22
PLUG CAP ASSY
29L-82370-00-00
Superseded by 4BP-82370-01-00
|
$33.99 | ||
|
Unavailable |
|||
|
#23
PLUG CAP ASSEMBLY
1J7-82370-10-00
Superseded by 1J7-82370-00-00
|
$93.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
HORN (SR250)
3Y6-83371-00-00
|
$46.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT(3JP)
97011-06010-00
Superseded by 97017-06010-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
