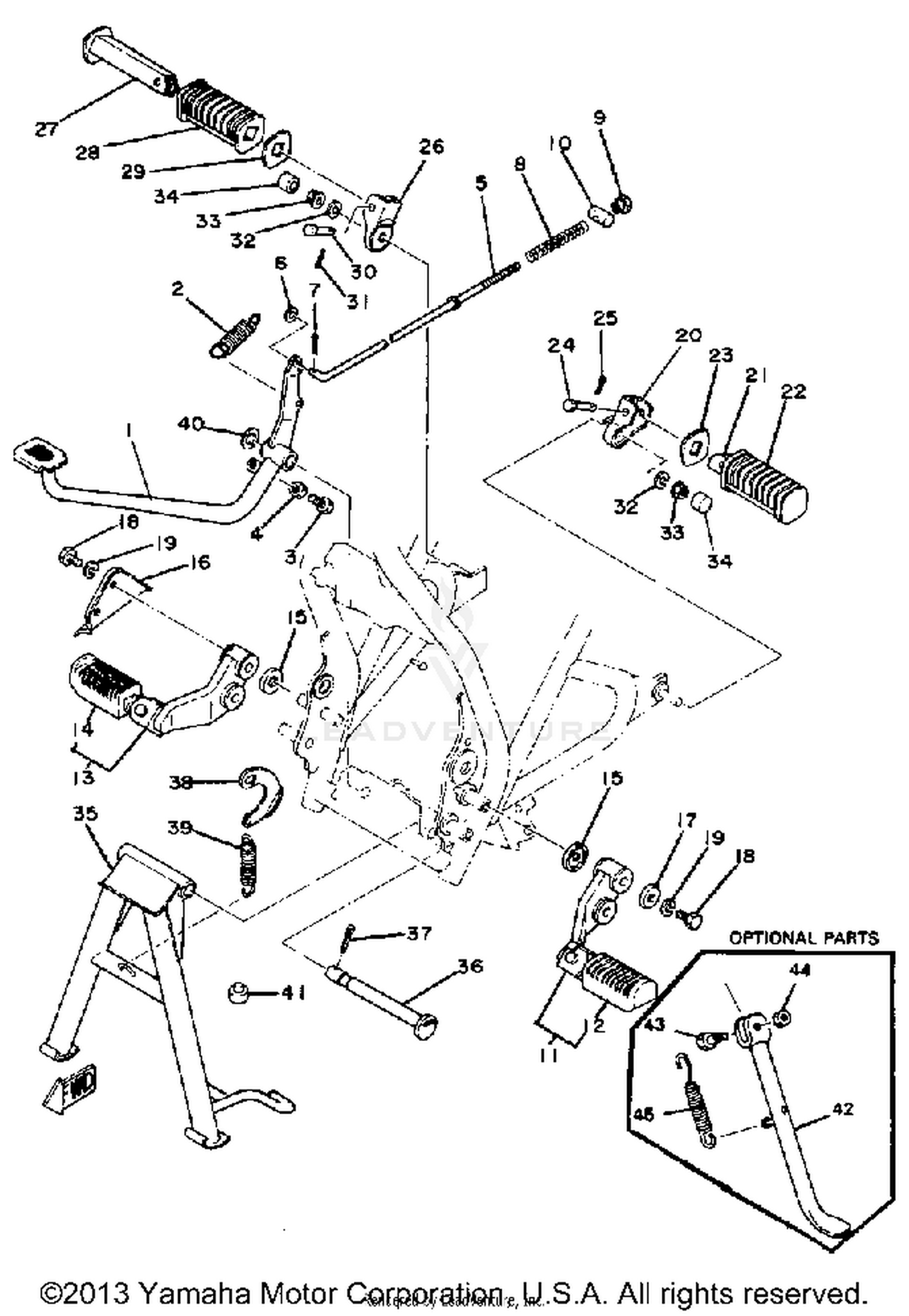

Stand Footrest Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PEDAL, BRAKE
3Y6-27211-00-93
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPRING, TENSION
90506-23045-00
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW, HEXAGON
90153-06008-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#5
ROD, BRAKE
3Y6-27231-00-00
|
$16.49 | ||
|
Unavailable |
|||
|
#6
WASHER, PLAIN
92990-06200-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIN, COTTER
91490-20020-00
Superseded by 91490-20025-00
|
$1.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING, COMPRESSION
90501-10245-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT
90179-06411-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN
90249-12008-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
FRT FOOTREST ASSEMBLY L
3Y6-27410-00-R4
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
COVER, FOOTREST
4L0-27423-00-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
FRT FOOTREST ASSEMBLY R
3Y6-27420-00-R4
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
COVER, FOOTREST
4L0-27423-00-00
|
$47.99 | ||
|
Unavailable |
|||
|
#15
WASHER, PLATE
90209-12157-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
PROTECTOR
3Y6-27491-00-00
|
$7.26 | ||
|
Unavailable |
|||
|
#17
WASHER, PLATE
90201-083A6-00
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT
97313-08016-00
Superseded by 97013-08016-00
|
$0.95 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
BRACKET 1
3Y6-27432-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
FOOTREST, REAR 1
447-27431-00-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
COVER, RR FOOTREST
447-27433-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, SPEC'L SHAPE
90209-18070-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#24
PIN, WITH HOLE
90240-06042-00
|
$2.65 | ||
|
Available to order. Add to View Price |
|||
|
#25
PIN, COTTER
91490-16020-00
|
$6.20 | ||
|
Available to order. Add to View Price |
|||
|
#26
BRACKET 2
3Y6-27442-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
FOOTREST, REAR 2
447-27441-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
UNAVAILABLE IN PRICE BOOK
447-27434-00-00
|
|||
|
Unavailable |
|||
|
#29
WASHER, SPEC'L SHAPE
90209-18070-00
|
$2.35 | ||
|
Unavailable |
|||
|
#30
PIN, WITH HOLE
90240-06042-00
|
$2.65 | ||
|
Unavailable |
|||
|
#31
PIN, COTTER
91490-16020-00
|
$6.20 | ||
|
Unavailable |
|||
|
#32
WASHER, SPRING
92990-10100-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
NUT, WITH WASHER
95701-10500-00
Superseded by 95704-10500-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#34
CAP, TOOL BOX
262-21399-00-00
|
$1.65 | ||
|
Available to order. Add to View Price |
|||
|
#35
STAND, MAIN
3Y6-27111-01-R4
|
$71.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
SHAFT, MAIN STAND
3Y6-27112-00-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
PIN, COTTER
91401-30030-00
Superseded by 91490-30030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
LINK, MAIN STAND
3Y6-27115-00-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#39
SPRING, TENSION (174-27116-00)
90506-32056-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#40
WASHER, PLATE
90201-15340-00
Superseded by 90201-153A1-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
STOPPER, MAIN STAND
371-27114-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#42
STAND, SIDE
3Y6-27311-00-33
Superseded by 3Y6-27311-01-00
|
$57.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
BOLT
90109-08032-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#44
NUT, SELF-LOCKING
90185-08055-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#45
SPRING, TENSION
90507-29009-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
