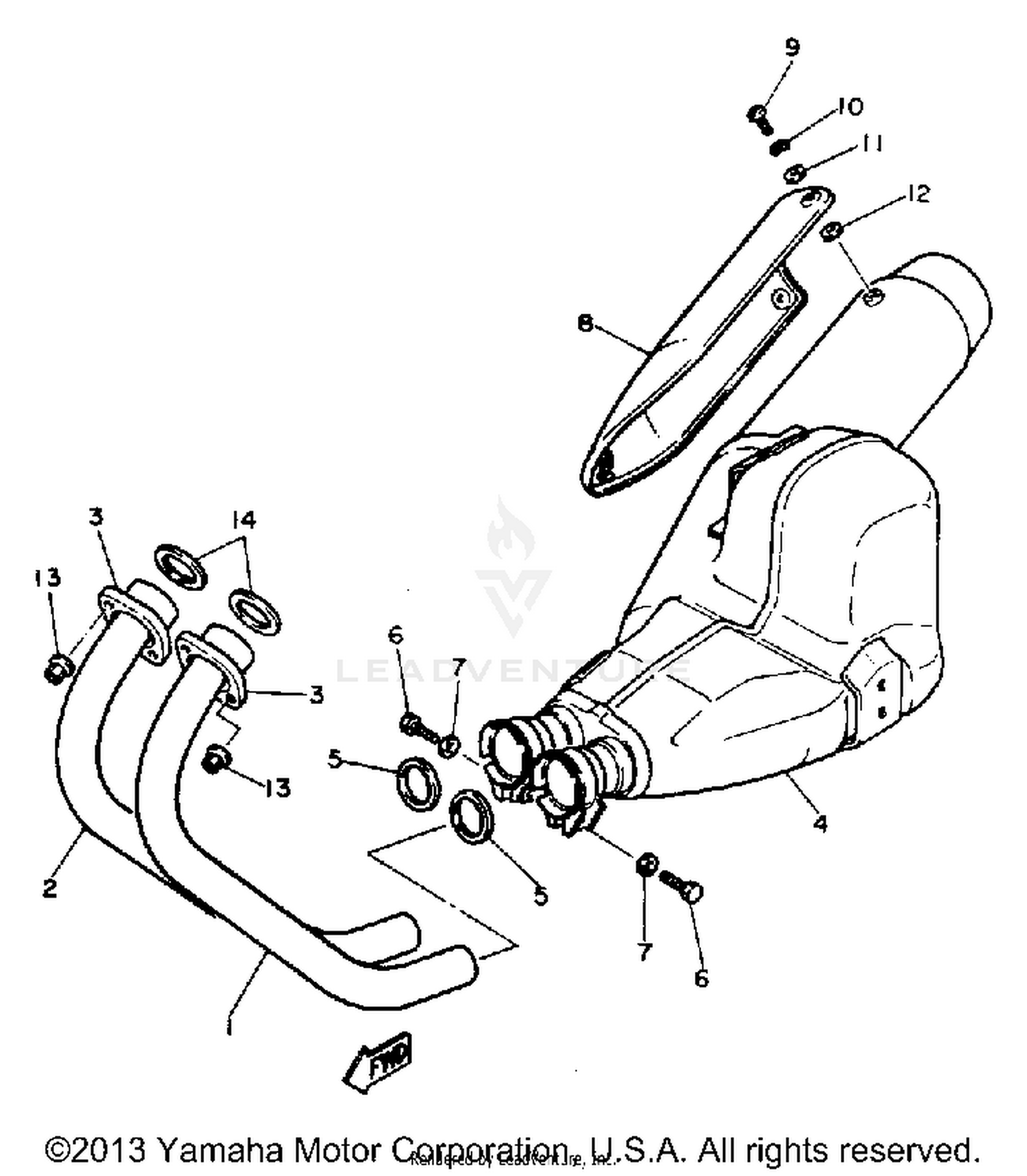

Exhaust Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PIPE, EXHAUST L
1JK-14611-01-00
|
$255.99 | ||
|
Unavailable |
|||
|
#2
PIPE, EXHAUST R
1JK-14621-01-00
|
$227.99 | ||
|
Unavailable |
|||
|
#3
NUT, RING
1JK-14612-00-00
|
$5.64 | ||
|
Unavailable |
|||
|
#4
MUFFLER L
2EF-14711-00-00
|
$317.99 | ||
|
Unavailable |
|||
|
#5
GASKET, MUFFLER
1JK-14714-00-00
Superseded by 3YF-14714-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT
97016-08025-00
Superseded by 97017-08025-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, PLATE
92906-08600-00
Superseded by 92907-08600-00
|
$2.80 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
90202-05187-00
|
$1.25 | ||
|
Available to order. Add to View Price |
|||
|
#
COLLAR
90387-06023-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#
UNAVAILABLE IN PRICE BOOK
1JK-14728-01-00
|
|||
|
Unavailable |
|||
|
#
PROTECT. KIT-MUFF.
99999-01904-00
Superseded by 99999-02400-00
|
$118.99 | ||
|
Unavailable |
|||
|
#
GROMMET
90480-12237-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#
SCREW, BIND
98903-06012-00
Superseded by 98980-06012-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW, BIND
98903-06010-00
Superseded by 98980-06010-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, WAVE
90206-06090-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, PLATE
90202-05187-00
|
$1.25 | ||
|
Unavailable |
|||
|
#12
WASHER, PROTECTOR
30X-14766-00-00
|
$2.20 | ||
|
Unavailable |
|||
|
#13
NUT
90179-06499-00
Superseded by 90179-06500-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
GASKET, EXHAUST PIPE
3YF-14613-01-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
