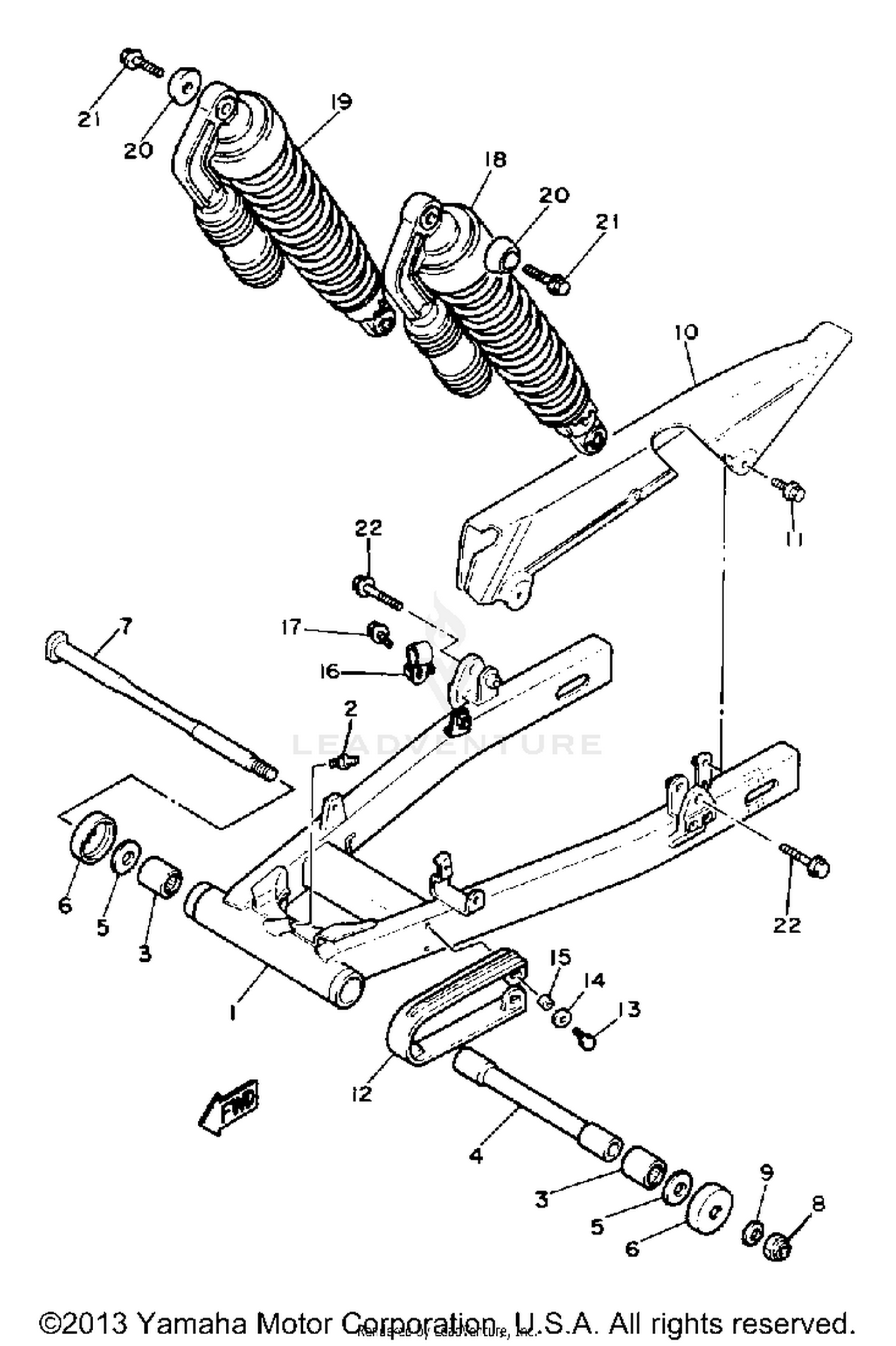

Swing Arm - Rear Shocks Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR ARM
1JK-22110-10-35
|
$130.99 | ||
|
Unavailable |
|||
|
#2
NIPPLE, GREASE
93700-06M03-00
|
$7.65 | ||
|
Available to order. Add to View Price |
|||
|
#3
BEARING
93320-32403-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BUSH
51L-22184-00-00
|
$98.99 | ||
|
Unavailable |
|||
|
#5
WASHER, PLATE
90201-161J3-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
COVER, THRUST 2
4X7-22129-00-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SHAFT, PIVOT
1JK-22141-00-00
Superseded by 3LN-22141-60-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
NUT, SELF-LOCKING
90185-14070-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER, PLATE
90201-14740-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
CASE, CHAIN
1JK-22311-01-00
|
$145.99 | ||
|
Unavailable |
|||
|
#11
UNAVAILABLE IN PRICE BOOK
90-11906-09-50
|
|||
|
Unavailable |
|||
|
#12
SEAL, GUARD
1JK-22151-00-00
|
$44.99 | ||
|
Unavailable |
|||
|
#13
BOLT
97016-06016-00
Superseded by 97017-06016-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLATE
90201-06059-00
Superseded by 90201-06057-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
COLLAR
90387-06022-00
Superseded by 90387-06106-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLAMP
90461-08031-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE (SMALL HEAD)
95023-06012-00
Superseded by 95024-06012-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#18
SHK/ABS ASSEMBLY, REAR
2EF-22210-11-00
|
$296.99 | ||
|
Unavailable |
|||
|
#19
SHK/ABS ASSEMBLY, REAR
2EF-22210-11-00
|
$296.99 | ||
|
Unavailable |
|||
|
#20
WASHER 1
42X-22243-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, FLANGE (SMALL HEAD)
90105-08705-00
Superseded by 95024-08016-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE
95023-10035-00
|
$2.20 | ||
|
Unavailable |
|||
