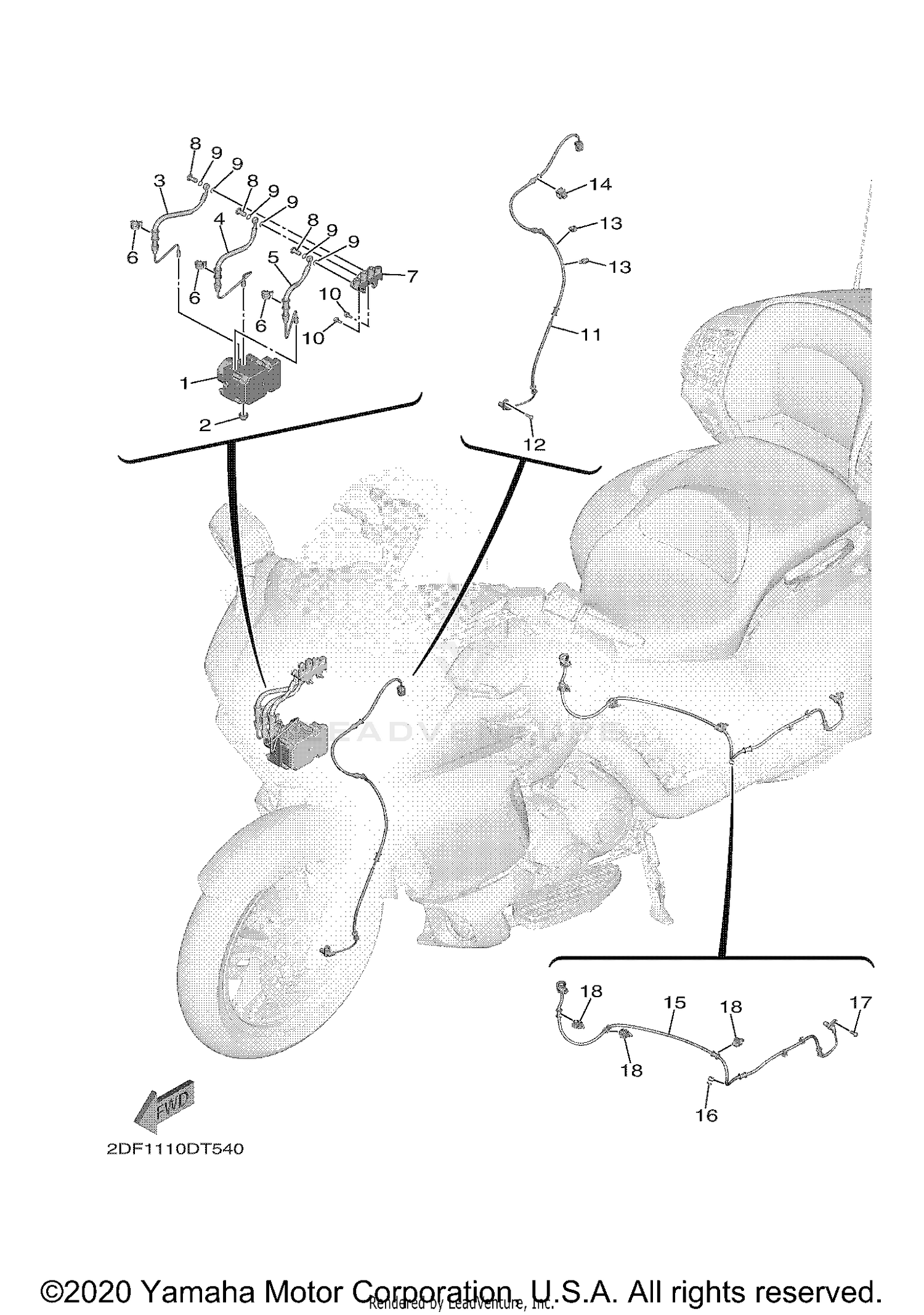

Electrical 4 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HYDRAULIC UNIT ASSY
2DF-85930-09-00
|
$1,464.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAP, DAMPER
2CR-85916-00-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIPE, BRAKE 2
2DF-25882-00-00
|
$51.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIPE, BRAKE 4
2DF-2588A-00-00
|
$51.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIPE, BRAKE 3
2DF-25883-00-00
|
$50.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
CLAMP
90464-16006-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
JOINT
2DF-25885-00-00
|
$51.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, UNION
90401-10172-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
GASKET
90430-10005-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE DEEP RECESS
95D37-06014-00
|
$0.52 | ||
|
Available to order. Add to View Price |
|||
|
#11
WHEEL SENSOR ASSY, FRONT
2DF-85970-00-00
|
$136.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, BUTTON HEAD
92012-06016-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLAMP
90464-12013-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLAMP
90464-08011-00
|
$0.94 | ||
|
Available to order. Add to View Price |
|||
|
#15
WHEEL SENSOR ASSY, R
2DF-85980-00-00
Superseded by 2DF-85980-01-00
|
$192.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLIP
90468-15139-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, BUTTON HEAD
92012-06016-00
|
$7.99 | ||
|
Unavailable |
|||
|
#18
CLAMP
90464-10014-00
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
