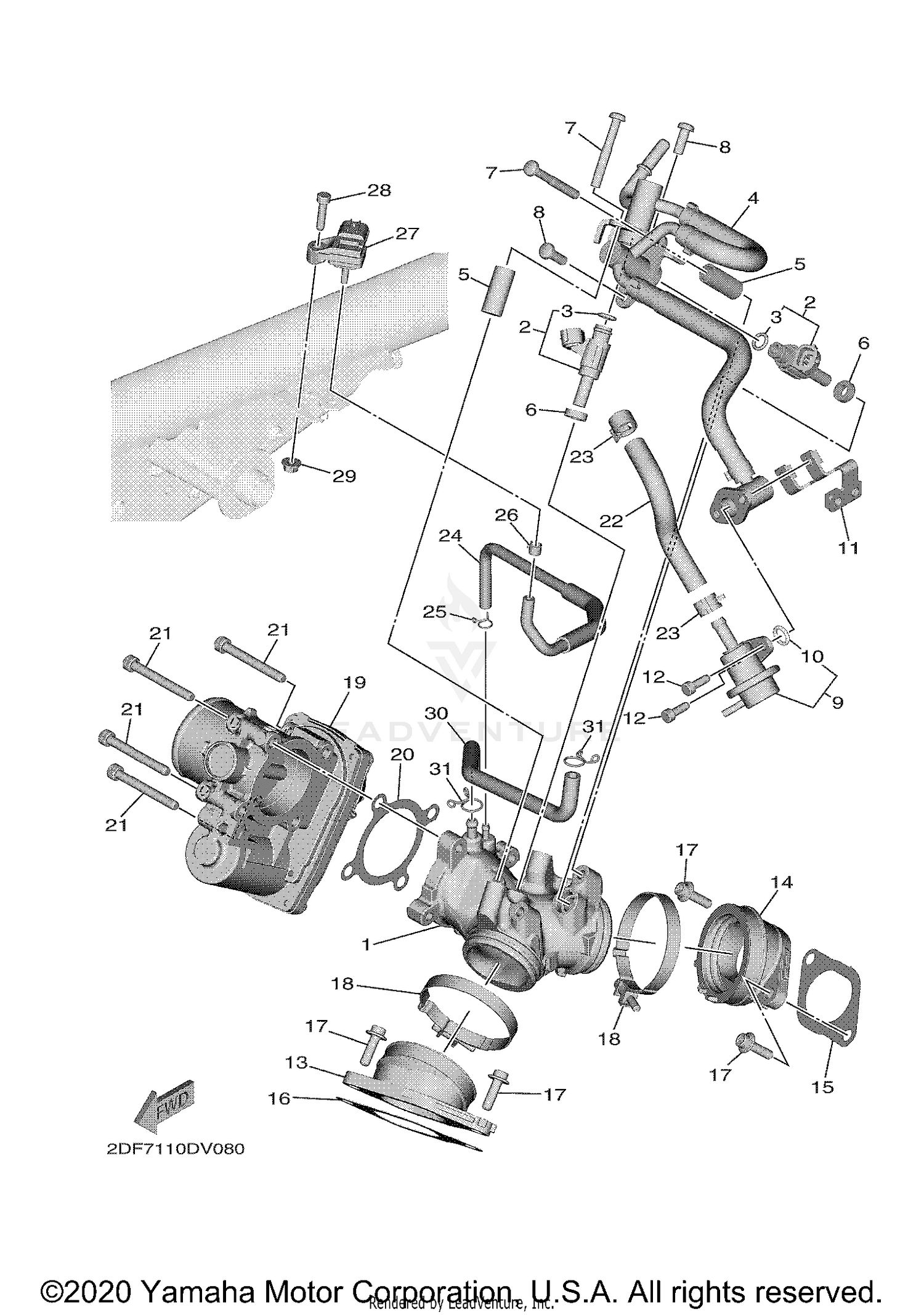

Intake Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MANIFOLD
2DF-13640-00-00
|
$185.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
INJECTOR
2DF-13761-00-00
|
$90.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
O-RING
68V-1416A-00-00
|
$12.75 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIPE INLET ASSEMBLY
2DF-13930-00-00
|
$295.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR
2DF-13716-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET, MANIFOLD
8FP-13556-10-00
|
$6.34 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW, PAN HEAD
98502-06045-00
Superseded by 98504-06045-00
|
$1.10 | ||
|
Unavailable |
|||
|
#8
SCREW, PAN HEAD
98502-06016-00
Superseded by 98580-06016-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#9
REGULATOR, PRESSURE
5C7-13906-00-00
|
$191.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
O-RING
5S7-13769-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BRACKET 1
2DF-14291-00-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, HEXAGON SOCKET HEAD
91312-05014-00
|
$2.91 | ||
|
Available to order. Add to View Price |
|||
|
#13
JOINT, CARBURETOR 1
2DF-13586-00-00
|
$66.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
JOINT, CARBURETOR 2
2DF-13596-00-00
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SEAL
2DF-14457-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
SEAL
2DF-14467-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, HEXAGON SOCKET HEAD
90110-06348-00
|
$3.43 | ||
|
Available to order. Add to View Price |
|||
|
#18
HOSE CLAMP ASSY
90450-62004-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
THROTTLE BODY ASSY
2DF-13750-00-00
|
$433.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SEAL
2DF-14452-00-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT, HEXAGON SOCKET HEAD
91312-06050-00
|
$4.63 | ||
|
Available to order. Add to View Price |
|||
|
#22
PIPE 5
2DF-24315-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
CLIP
90467-12003-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
HOSE, VACUUM SENSING 1
2DF-13542-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLIP
90467-08021-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
CLIP
90467-07093-00
|
$3.28 | ||
|
Available to order. Add to View Price |
|||
|
#27
SENSOR, PRESSURE
1WS-82380-00-00
|
$193.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
BOLT
91312-05020-00
Superseded by 91317-05020-00
|
$3.22 | ||
|
Available to order. Add to View Price |
|||
|
#29
NUT, WITH WASHER
95702-05500-00
|
$0.37 | ||
|
Available to order. Add to View Price |
|||
|
#30
PIPE
2DF-14465-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
CLIP
90467-09103-00
Superseded by 90467-090A2-00
|
$4.32 | ||
|
Available to order. Add to View Price |
|||
