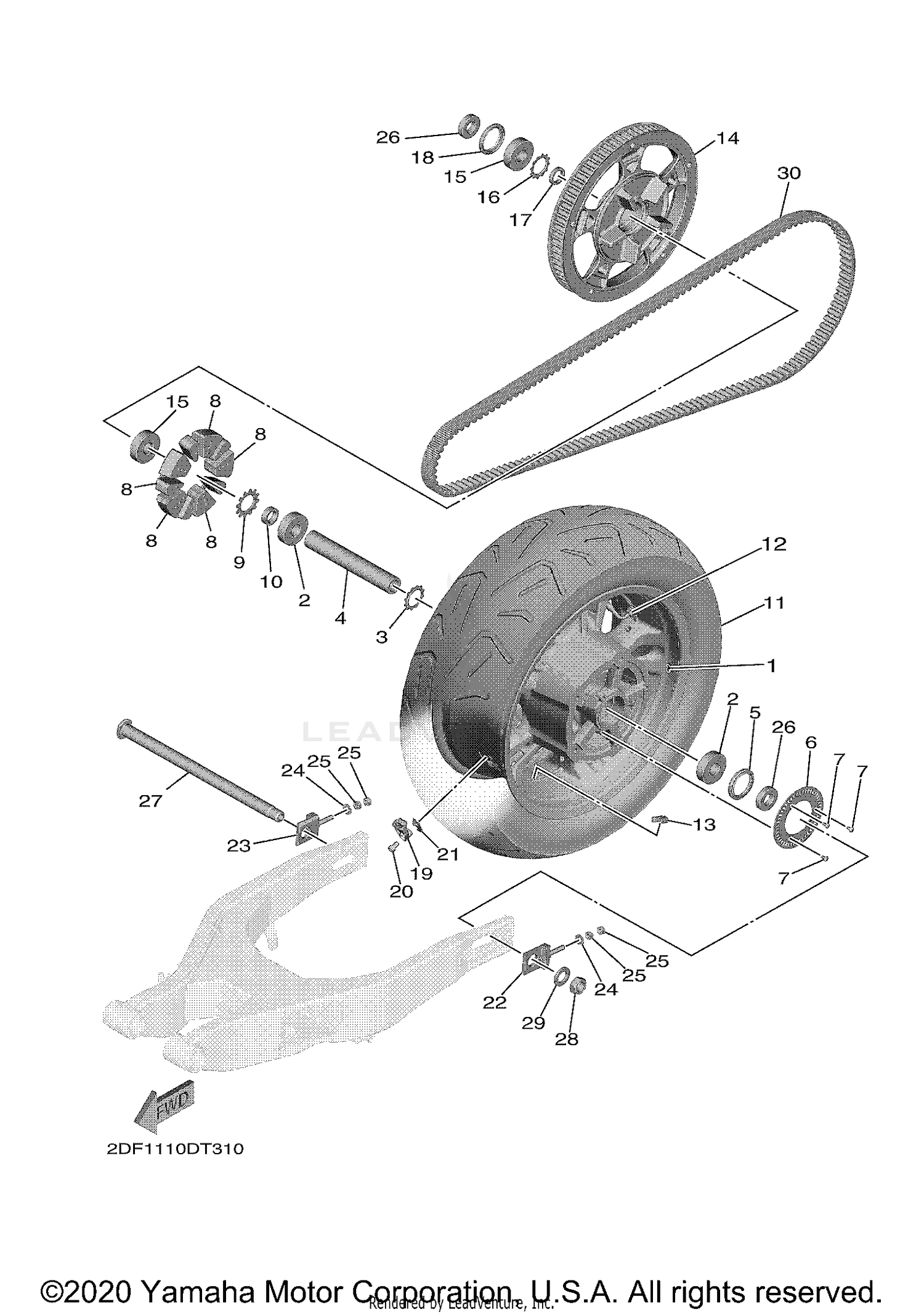

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CAST WHEEL, REAR
2DF-25338-00-00
|
$550.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BEARING
93306-37219-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
FLANGE, SPACER
2DF-25315-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPACER, BEARING
2DF-25317-00-00
|
$49.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
OIL SEAL
93105-42024-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
ROTOR, SENSOR
1XC-2517G-00-00
|
$96.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW
90149-05029-00
Superseded by 90149-05030-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
DAMPER
2DF-25364-00-00
Superseded by 2DF-25364-01-00
|
$6.99 | ||
|
Unavailable |
|||
|
#9
FLANGE, SPACER 2
2DF-25316-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
COLLAR, WHEEL
2DF-25383-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
TIRE (200/55R16M/C 77H)
94120-16008-00
|
$611.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
VALVE, RIM (PVR59A)
93900-00025-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BALANCER, WHEEL (10G)
5MT-25398-00-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BALANCER, WHEEL (20G)
5MT-25398-10-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BALANCER, WHEEL (30G)
5MT-25398-20-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPROCKET, DRIVEN (70T)
2DF-25470-00-00
|
$643.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BEARING
93306-37219-00
|
$29.99 | ||
|
Unavailable |
|||
|
#16
FLANGE, SPACER
2DF-25315-00-00
|
$6.99 | ||
|
Unavailable |
|||
|
#17
COLLAR, WHEEL
2DF-25376-00-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
OIL SEAL
93105-42024-00
|
$14.49 | ||
|
Unavailable |
|||
|
#19
SENSOR, TIRE PRESS.
2DF-82765-01-00
|
$285.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT
2DF-25411-00-00
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
PLATE, FLANGE
2DF-2511A-00-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
PULLER, CHAIN 1
2DF-25388-00-00
|
$44.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
PULLER, CHAIN 2
2DF-25389-00-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER
92902-08200-00
|
$0.25 | ||
|
Available to order. Add to View Price |
|||
|
#25
NUT, HEXAGON
95302-08600-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
COLLAR
90387-22034-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
AXLE, WHEEL
2DF-25381-00-00
|
$57.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
NUT, SELF-LOCKING
90185-20002-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, PLATE
90201-20036-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
BELT
2DF-46241-00-00
|
$462.99 | ||
|
Available to order. Add to View Price |
|||
