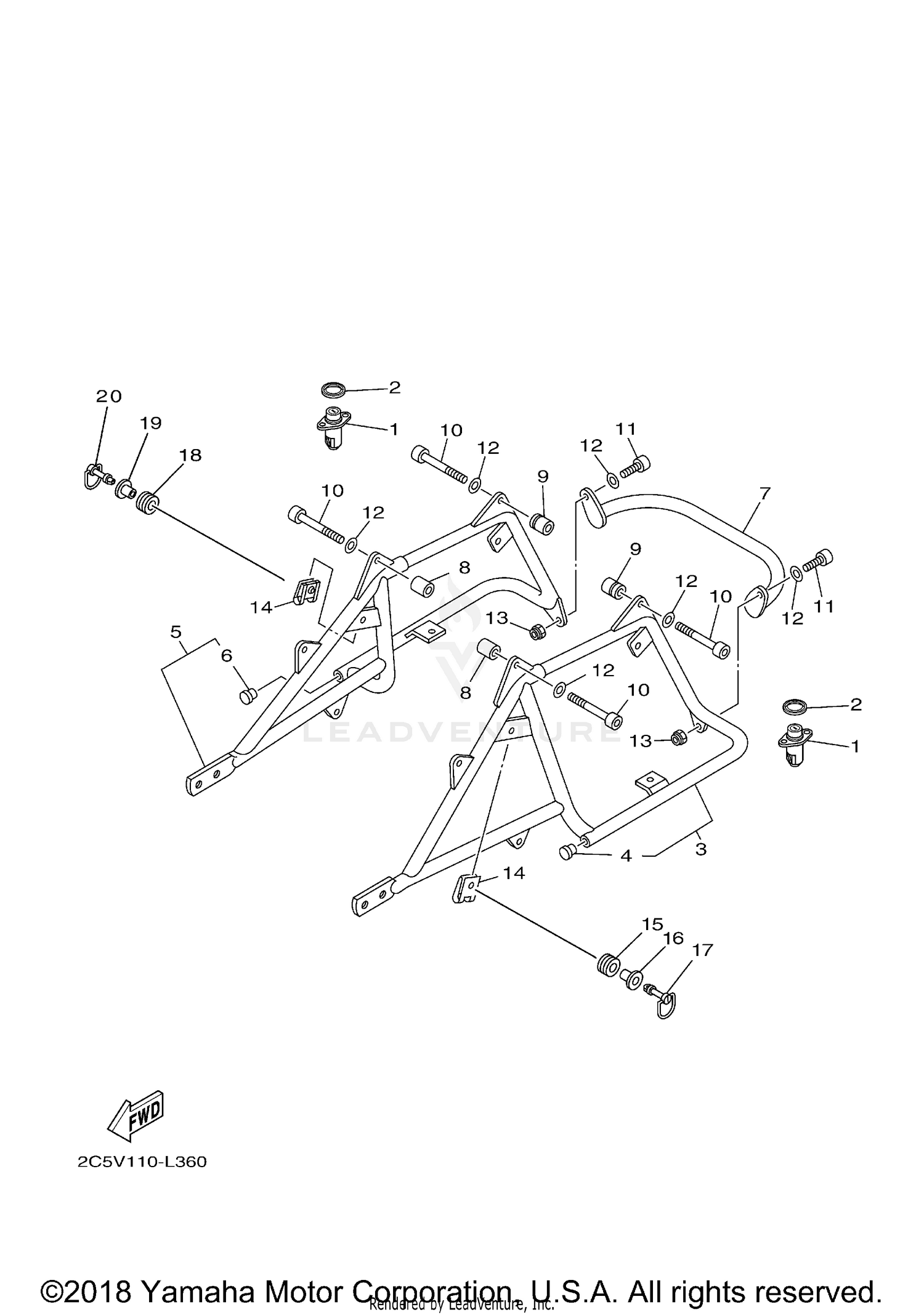

Saddlebag Mounting Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LOCK ASSY 1
5S6-28408-00-00
|
$150.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SEAL 1
5S6-28428-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
FRAME, SADDLEBAG 1
2C5-F8473-00-00
|
$220.49 | ||
|
Unavailable |
|||
|
#4
COVER 1
2C5-F842M-00-00
|
$4.49 | ||
|
Unavailable |
|||
|
#5
FRAME, SADDLEBAG 2
2C5-F8474-00-00
|
$206.95 | ||
|
Unavailable |
|||
|
#6
COVER 1
2C5-F842M-00-00
|
$4.49 | ||
|
Unavailable |
|||
|
#7
STAY, SIDE BAG
2C5-F8423-00-00
|
$105.49 | ||
|
Unavailable |
|||
|
#8
PIPE, 1
2C5-F841B-00-00
|
$4.49 | ||
|
Unavailable |
|||
|
#9
PIPE, 5
2C5-F841C-00-00
|
$6.95 | ||
|
Unavailable |
|||
|
#10
BOLT, HEXAGON SOCKET HEAD
91314-08070-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, HEXAGON SOCKET HEAD
91314-08020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PLAIN
92990-08200-00
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, U
95614-08100-00
|
|||
|
Unavailable |
|||
|
#14
CLIP
2C5-F8457-00-00
|
$5.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
DAMPER 2
2C5-F8416-00-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
PLATE
2C5-F843L-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
HOOK 3
2C5-F8494-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
DAMPER 2
2C5-F8416-00-00
|
$14.99 | ||
|
Unavailable |
|||
|
#19
PLATE
2C5-F843L-00-00
|
$18.99 | ||
|
Unavailable |
|||
|
#20
HOOK 3
2C5-F8494-00-00
|
$24.99 | ||
|
Unavailable |
|||
