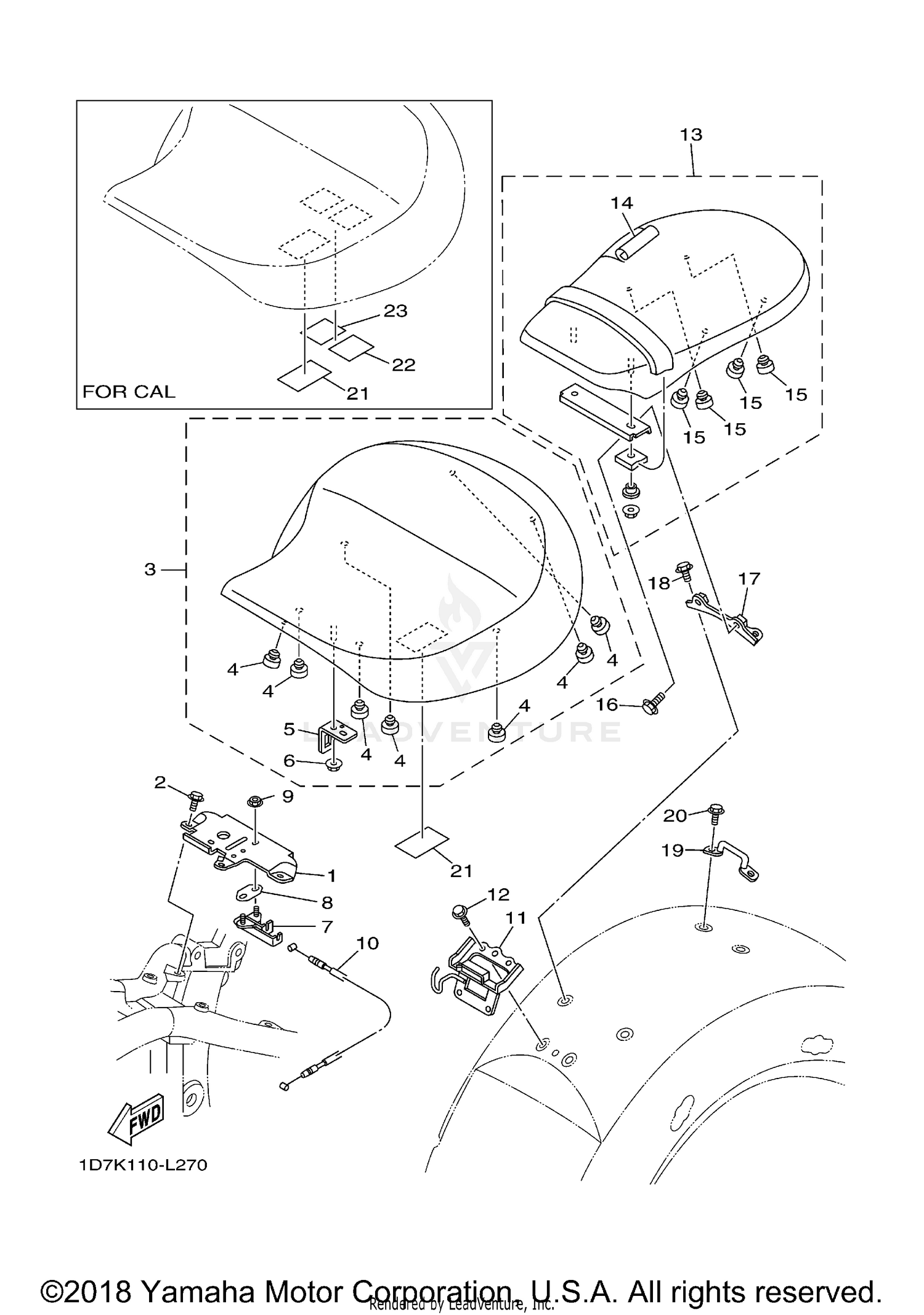

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BRACKET, SEAT 1
1D7-21341-00-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
BOLT,FLANGE (JN5)
90105-08485-00
Superseded by 95817-08016-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
SINGLE SEAT ASSY
1D7-24710-30-00
|
$366.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PAD, SEAT
22W-24741-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
BRACKET, SEAT
4NK-24728-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
NUT, U FLANGE
95602-06200-00
Superseded by 95604-06200-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
SEAT LOCK ASSY
4BP-24780-00-00
|
$93.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLATE
4BP-24792-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, FLANGE
95702-06500-00
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#10
CABLE, SEAT LOCK
5PX-2478E-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BRACKET
1D7-2475N-00-00
|
$63.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE
95022-08012-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
TANDEM SEAT ASSY
1D7-24750-20-00
|
$201.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SEAT COVER COMP., 2
1D7-2470H-20-00
|
$120.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
PAD, SEAT
22W-24741-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#16
BOLT, FLANGE
95022-08012-00
|
$11.49 | ||
|
Unavailable |
|||
|
#17
BRACKET, SEAT LEVER 1
1D7-2475H-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE
95022-08012-00
|
$11.49 | ||
|
Unavailable |
|||
|
#19
BRACKET 6
1D7-2475R-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, FLANGE
95022-08012-00
|
$11.49 | ||
|
Unavailable |
|||
|
#21
LABEL, TIRE
1D7-21668-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
PLATE, ROUTING 2
5RU-21686-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
PLATE, ROUTING
34B-21684-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
