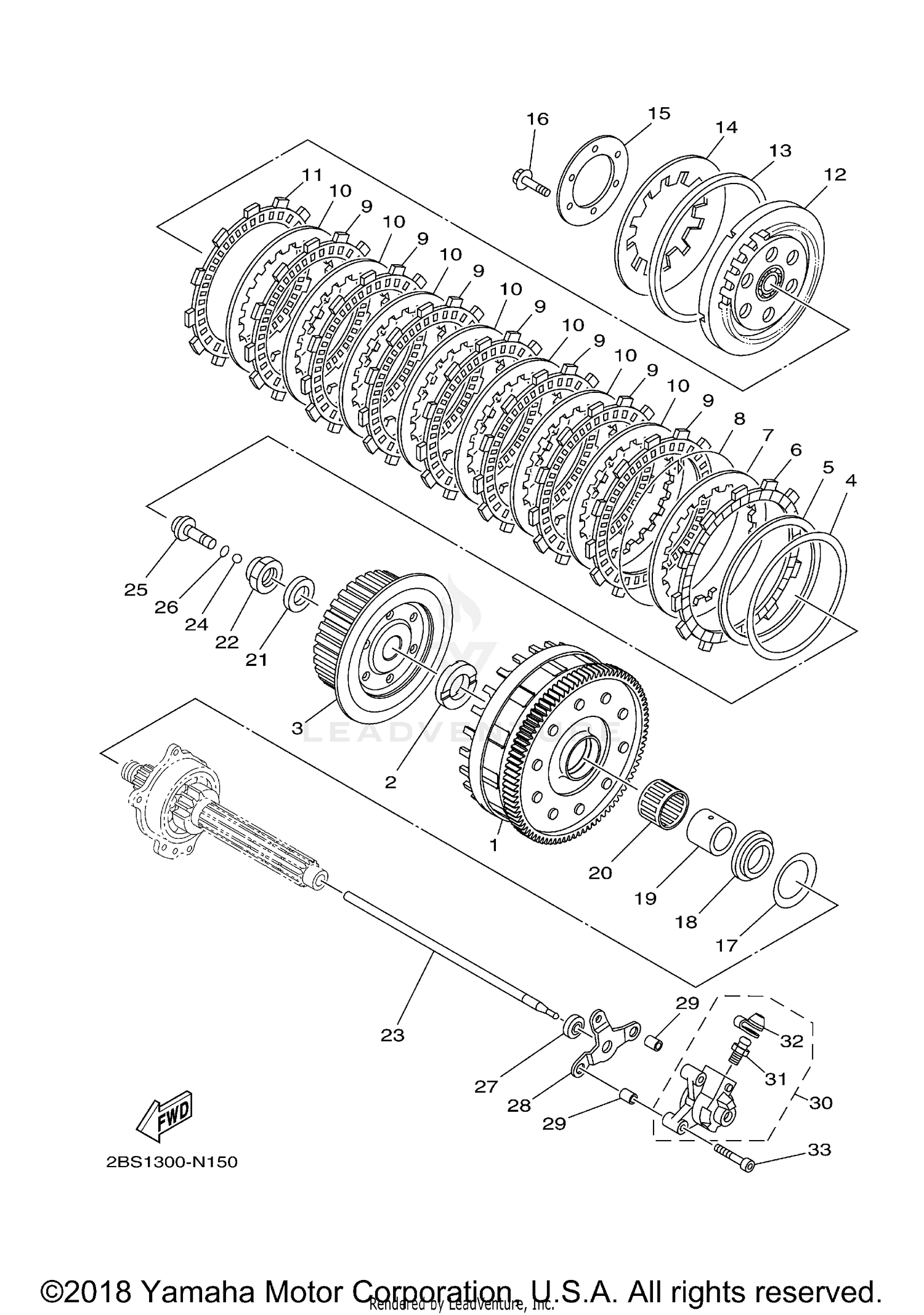

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PRIMARY DRIVEN GEAR COMP.
2BS-16150-00-00
|
$608.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PLATE, THRUST 1
5YU-16154-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOSS, CLUTCH
23P-16371-00-00
|
$173.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLATE, SEAT
36Y-16384-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, CLUTCH BOSS
36Y-16383-00-00
|
$65.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE, FRICTION 2
4XV-16331-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE, CLUTCH 2
2H7-16325-00-00
Superseded by 2H7-16325-10-00
|
$11.49 | ||
|
Unavailable |
|||
|
#8
RING, CLUTCH BOSS
2H7-16385-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLATE, FRICTION
5JW-16321-10-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLATE, CLUTCH 2
2H7-16325-00-00
Superseded by 2H7-16325-10-00
|
$11.49 | ||
|
Unavailable |
|||
|
#11
PLATE, FRICTION
5YU-16321-00-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
PRESSURE PLATE ASSY
23P-16350-00-00
|
$93.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
HOUSING, SPRING
36Y-16335-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SPRING, CLUTCH 2
5JW-16334-00-00
|
$87.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
PLATE, PRESSURE 2
1TX-16352-00-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE
90105-06191-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPRING, SHOCK ABSORBER
3P6-16587-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
SPACER 3
3P6-16183-00-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPACER 1
23P-16181-00-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BEARING
93310-33560-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, CONICAL SPRING
90208-20001-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT
90179-20007-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
ROD, PUSH 2
23P-16357-00-00
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
BALL
93511-32017-00
Superseded by 93511-32027-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
ROD, PUSH 1
4KG-16356-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
O-RING
93210-06632-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
OIL SEAL
93109-08061-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
PLATE
23P-15645-00-00
|
$4.30 | ||
|
Available to order. Add to View Price |
|||
|
#29
PIN, DOWEL
99590-08012-00
|
$3.30 | ||
|
Available to order. Add to View Price |
|||
|
#30
PUSH LEVER COMP.
23P-16381-00-00
|
$168.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
BLEED SCREW KIT
1UY-25824-51-00
Superseded by 36Y-W0048-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
BLEED SCREW KIT
1UY-25825-51-00
Superseded by 36Y-W0048-00-00
|
$9.49 | ||
|
Unavailable |
|||
|
#33
BOLT, HEXAGON SOCKET HEAD
90110-06140-00
Superseded by 91314-06035-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
CLUTCH KIT '10-14 XT
23P-W001G-00-00
|
$192.99 | ||
|
Available to order. Add to View Price |
|||
