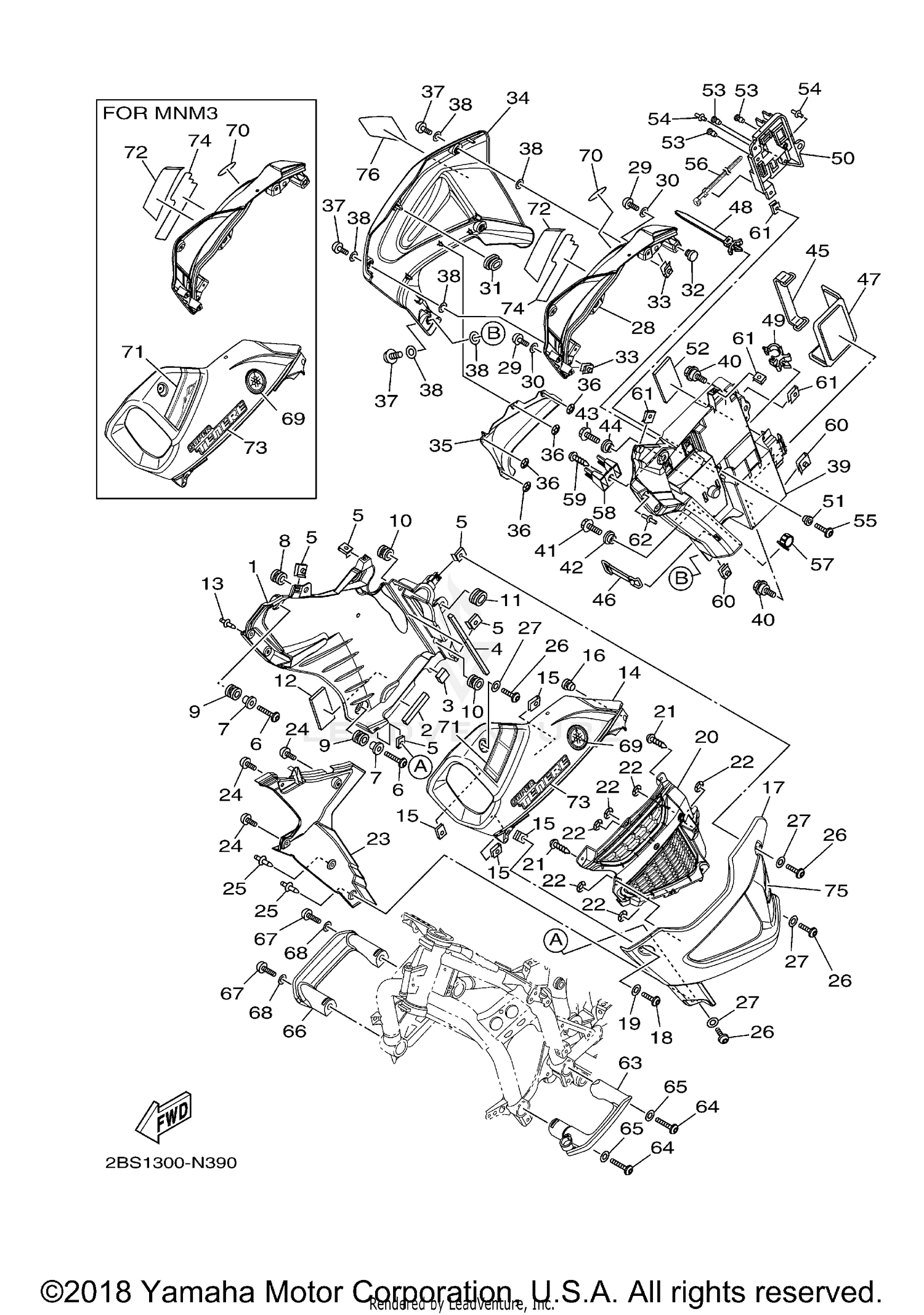

Cowling Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GUIDE, AIR 1
23P-2137U-00-00
|
$246.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
DAMPER, PLATE
90520-10006-00
|
$1.90 | ||
|
Available to order. Add to View Price |
|||
|
#3
DAMPER, PLATE
90520-10007-00
|
$1.95 | ||
|
Available to order. Add to View Price |
|||
|
#4
DAMPER
2D1-2174Y-00-00
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#5
NUT, SPRING
90183-05076-00
Superseded by 90183-050A6-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, HEX. SOCKET BUTTON
90111-06137-00
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR
90387-07042-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
GROMMET
90480-12596-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
GROMMET
90480-14452-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
GROMMET
90480-18431-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
GROMMET
90480-01558-00
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#12
DAMPER
5XT-21746-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
RIVET
90269-06008-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
COVER 1
23P-2842M-00-P5
|
$194.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
COVER 1
23P-2842M-00-P6
|
$261.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, SPRING
90183-05076-00
Superseded by 90183-050A6-00
|
$7.49 | ||
|
Unavailable |
|||
|
#16
PLUG
90338-10132-00
|
$3.30 | ||
|
Available to order. Add to View Price |
|||
|
#17
PANEL 1
23P-2835U-00-P1
|
$232.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, HEXAGON SOCKET HEAD
90111-05003-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLATE
90202-05180-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
GRILL, AIR OUTLET 1
23P-2837V-00-00
|
$149.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
SCREW, TRUSS HEAD TAPPING
97702-50014-00
Superseded by 97707-50014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
NUT, SPRING
90183-05M02-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#23
PANEL, INNER 1
23P-2836K-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, HEX. SOCKET BUTTON
90111-05002-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
RIVET
90269-06008-00
|
$8.49 | ||
|
Unavailable |
|||
|
#26
BOLT, HEXAGON SOCKET HEAD
90111-05003-00
|
$7.49 | ||
|
Unavailable |
|||
|
#27
WASHER, PLATE
90202-05180-00
|
$9.49 | ||
|
Unavailable |
|||
|
#28
COVER 2
23P-2842N-00-P5
|
$202.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
COVER 2
23P-2842N-00-P6
|
$202.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
BOLT, HEXAGON SOCKET HEAD
90111-05003-00
|
$7.49 | ||
|
Unavailable |
|||
|
#30
WASHER, PLATE
90202-05180-00
|
$9.49 | ||
|
Unavailable |
|||
|
#31
GROMMET
90480-01558-00
|
$3.95 | ||
|
Unavailable |
|||
|
#32
PLUG
90338-10132-00
|
$3.30 | ||
|
Unavailable |
|||
|
#33
PLATE, SPRING
5PW-2177L-00-00
Superseded by 5PW-2177L-01-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
PANEL 2
23P-2835V-00-P1
|
$244.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
COVER
23P-28365-00-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
NUT, SPRING
90183-05M02-00
|
$0.30 | ||
|
Unavailable |
|||
|
#37
HEAD
14B-28386-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
WASHER, SPECIAL 1
2TK-21757-00-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#39
BATTERY BOX ASSY
23P-8210E-01-00
Superseded by 23P-8210E-02-00
|
$40.99 | ||
|
Unavailable |
|||
|
#40
BOLT
90109-06171-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
BOLT, FLANGE
95822-06016-00
Superseded by 95817-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
|
#42
COLLAR
90387-06153-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#43
BOLT, FLANGE
95802-06016-00
Superseded by 95817-06016-00
|
$2.60 | ||
|
Unavailable |
|||
|
#44
COLLAR
90387-066R8-00
Superseded by 90387-062M9-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#45
BAND, BATTERY
137-82131-01-00
Superseded by 26H-82131-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
BAND, BATTERY
116-82131-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#47
SEAT, BATTERY
23P-82122-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#48
CLAMP
90464-50001-00
|
$2.35 | ||
|
Available to order. Add to View Price |
|||
|
#49
CLAMP
90464-16006-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#50
PLATE 1
23P-28396-00-00
Superseded by 23P-28396-01-00
|
$28.99 | ||
|
Unavailable |
|||
|
#51
COLLAR
90387-06184-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#52
SEAL
5TH-21268-01-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#53
PLUG
90338-06018-00
Superseded by 90338-07180-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#54
RIVET
90269-06008-00
|
$8.49 | ||
|
Unavailable |
|||
|
#55
BOLT, HEXAGON SOCKET BUTTON
90111-06038-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#56
CLAMP
90464-34002-00
|
$2.00 | ||
|
Available to order. Add to View Price |
|||
|
#57
CLAMP
90464-20021-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#58
STAY 1
23P-28321-00-00
Superseded by 23P-28321-01-00
|
$5.49 | ||
|
Unavailable |
|||
|
#59
SCREW, TAPPING
97702-50016-00
|
$2.25 | ||
|
Available to order. Add to View Price |
|||
|
#60
PLATE, SPRING
5PW-2177L-00-00
Superseded by 5PW-2177L-01-00
|
$6.49 | ||
|
Unavailable |
|||
|
#61
NUT, SPRING
90183-05076-00
Superseded by 90183-050A6-00
|
$7.49 | ||
|
Unavailable |
|||
|
#62
RIVET
90269-06008-00
|
$8.49 | ||
|
Unavailable |
|||
|
#63
PROTECTOR 1
23P-2834V-00-00
|
$61.99 | ||
|
Available to order. Add to View Price |
|||
|
#64
BOLT, BUTTON HEAD
92012-08030-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#65
WASHER, PLATE
90201-08043-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#66
PROTECTOR 2
23P-2834W-00-00
|
$57.99 | ||
|
Available to order. Add to View Price |
|||
|
#67
BOLT, BUTTON HEAD
92012-08030-00
|
$5.49 | ||
|
Unavailable |
|||
|
#68
WASHER, PLATE
90201-08043-00
|
$6.49 | ||
|
Unavailable |
|||
|
#69
EMBLEM
5YU-2411B-01-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#70
EMBLEM
5YU-2411B-01-00
|
$55.99 | ||
|
Unavailable |
|||
|
#71
GRAPHIC 1
23P-28391-50-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#71
GRAPHIC 1
23P-28391-70-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#72
GRAPHIC 2
23P-28392-50-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#72
GRAPHIC 2
23P-28392-70-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#73
EMBLEM
23P-28315-10-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#73
EMBLEM
23P-28315-20-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#74
EMBLEM
23P-28315-10-00
|
$13.49 | ||
|
Unavailable |
|||
|
#74
EMBLEM
23P-28315-20-00
|
$11.49 | ||
|
Unavailable |
|||
|
#75
GRAPHIC 3
23P-28393-20-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#76
GRAPHIC 4
23P-28394-20-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
