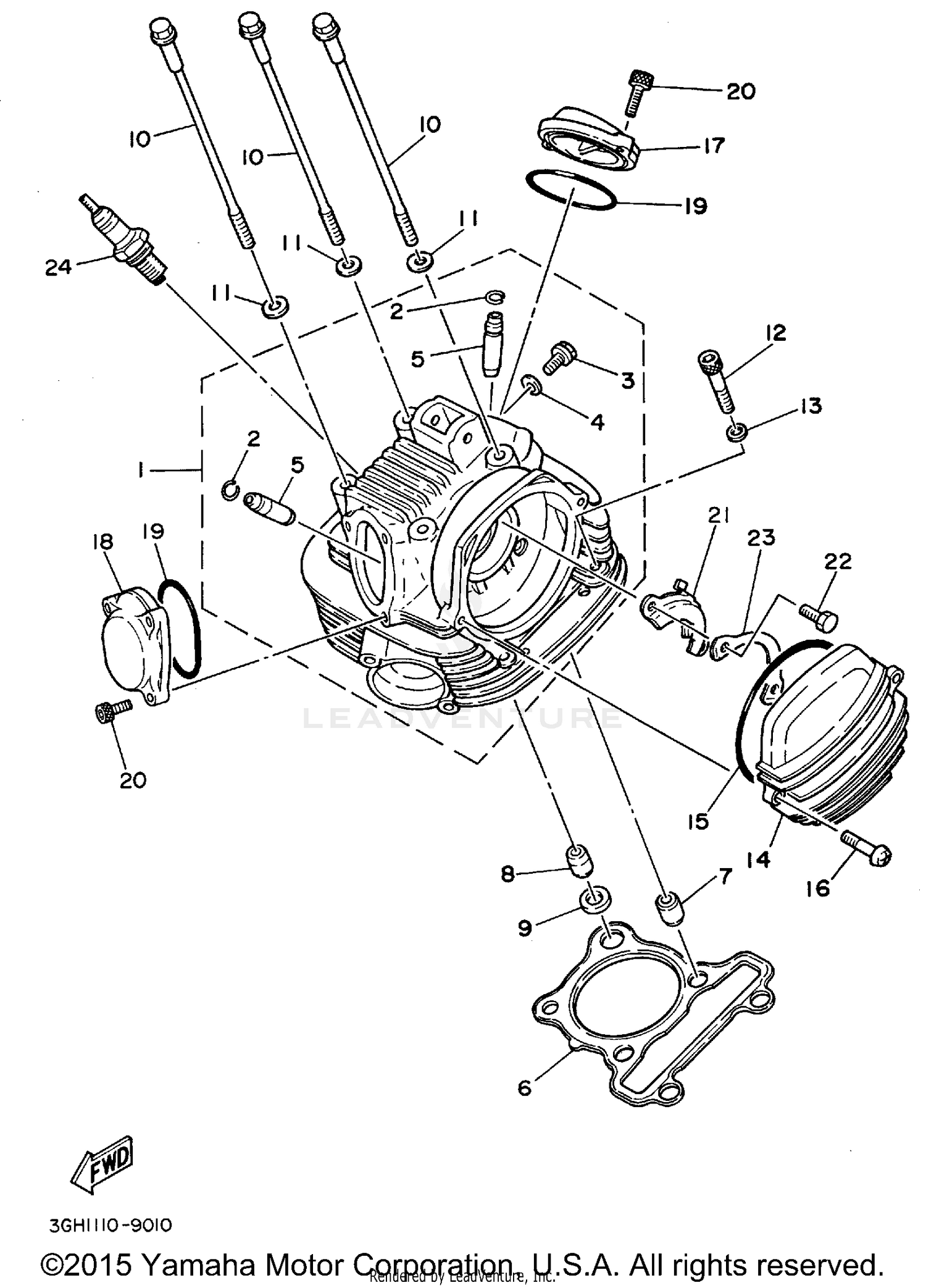

Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER HEAD ASSY
4BD-11102-00-00
Superseded by 4BD-11101-03-00
|
$444.99 | ||
|
Unavailable |
|||
|
#2
CIRCLIP
93440-10085-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW, HEXAGON
90153-06045-00
Superseded by 90153-06029-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET
90430-06014-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
GUIDE, VALVE 1
5H0-11133-10-00
Superseded by 5H0-11133-11-00
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET, CYLINDER HEAD 1
3GH-11181-00-00
|
$52.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIN, DOWEL
99530-14016-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIN, DOWEL
91810-08016-00
Superseded by 93612-16254-00
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#9
GASKET
90430-12186-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE
90105-08195-00
Superseded by 90105-08160-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, PLATE
90201-080L7-00
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
91316-08045-00
Superseded by 91317-08045-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, PLATE
90201-087K2-00
Superseded by 90201-086M0-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
COVER, CYLINDER HEAD SIDE 1
4BD-11185-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
O-RING
93211-05471-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW, PAN HEAD
98580-06020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
COVER, CYLINDER HEAD SIDE 2
3GC-11186-00-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
COVER, CYLINDER HEAD SIDE 3
3GC-11187-00-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
O-RING
93210-57634-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT
91316-06018-00
Superseded by 91317-06018-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
PLATE
5H0-1111F-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT
97013-06012-00
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER, LOCK
90215-06184-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
D7EA NGK SPLUG 10P
NGK-D7EA0-00-00
Superseded by D7E-A0000-00-00
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
