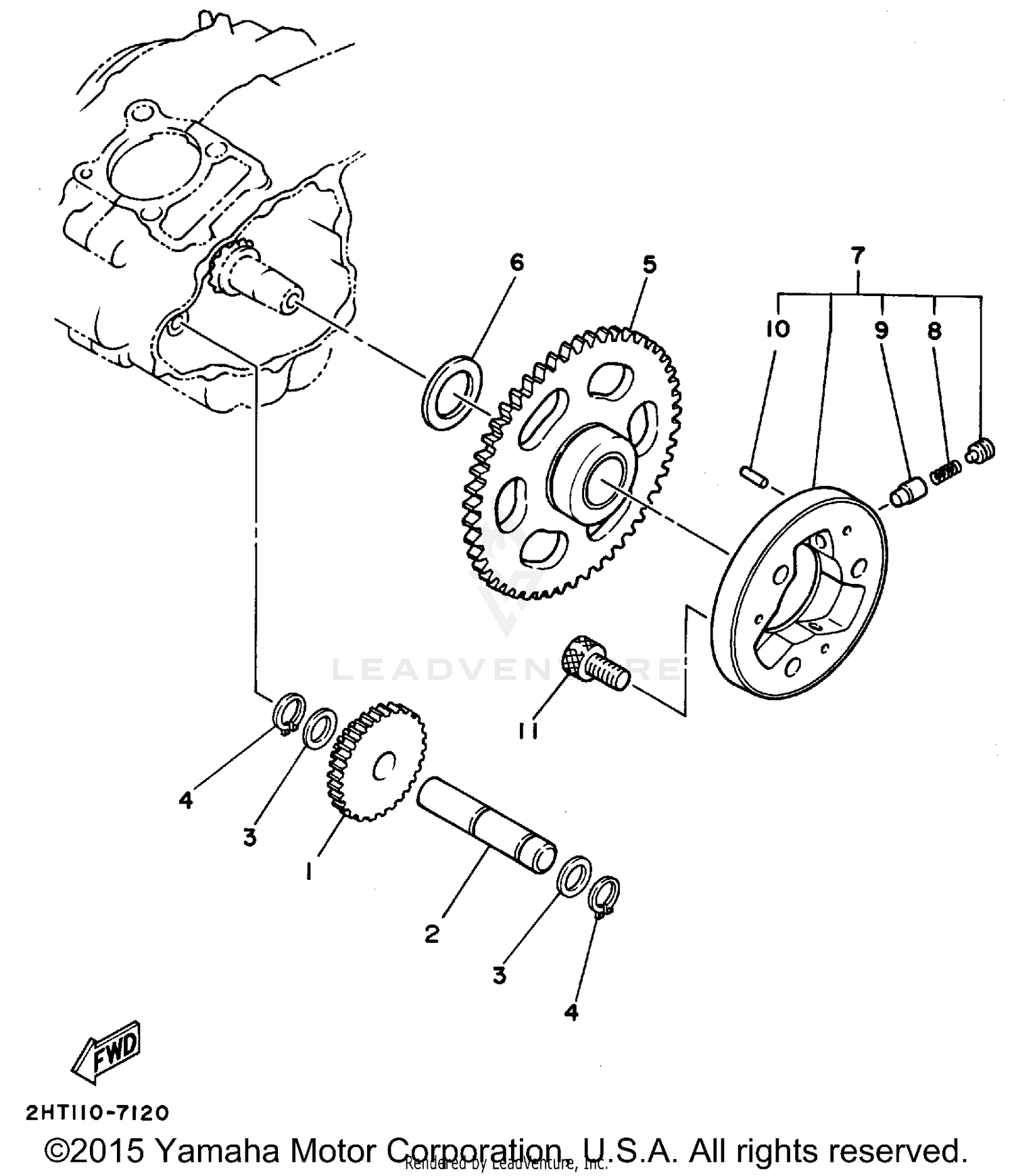

Starter Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GEAR, IDLER 1 (41T/10T)
2HT-15512-00-00
|
$88.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SHAFT 1
2HT-15521-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, PLATE
90201-12166-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
CIRCLIP
99009-12400-00
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#5
GEAR, IDLER 2 (56T)
5H0-15517-00-00
|
$147.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, PLATE (0.9T)
90201-256K6-00
|
$3.30 | ||
|
Available to order. Add to View Price |
|||
|
#7
STARTER CLUTCH OUTER ASSY
4H7-15580-10-00
|
$179.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
SPRING, COMPRESSION
90501-04596-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
CAP, STARTER CLUTCH SPRING
341-15583-05-00
Superseded by 1J7-15583-01-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIN, DOWEL
93615-12088-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT
91316-08016-00
Superseded by 91317-08016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
