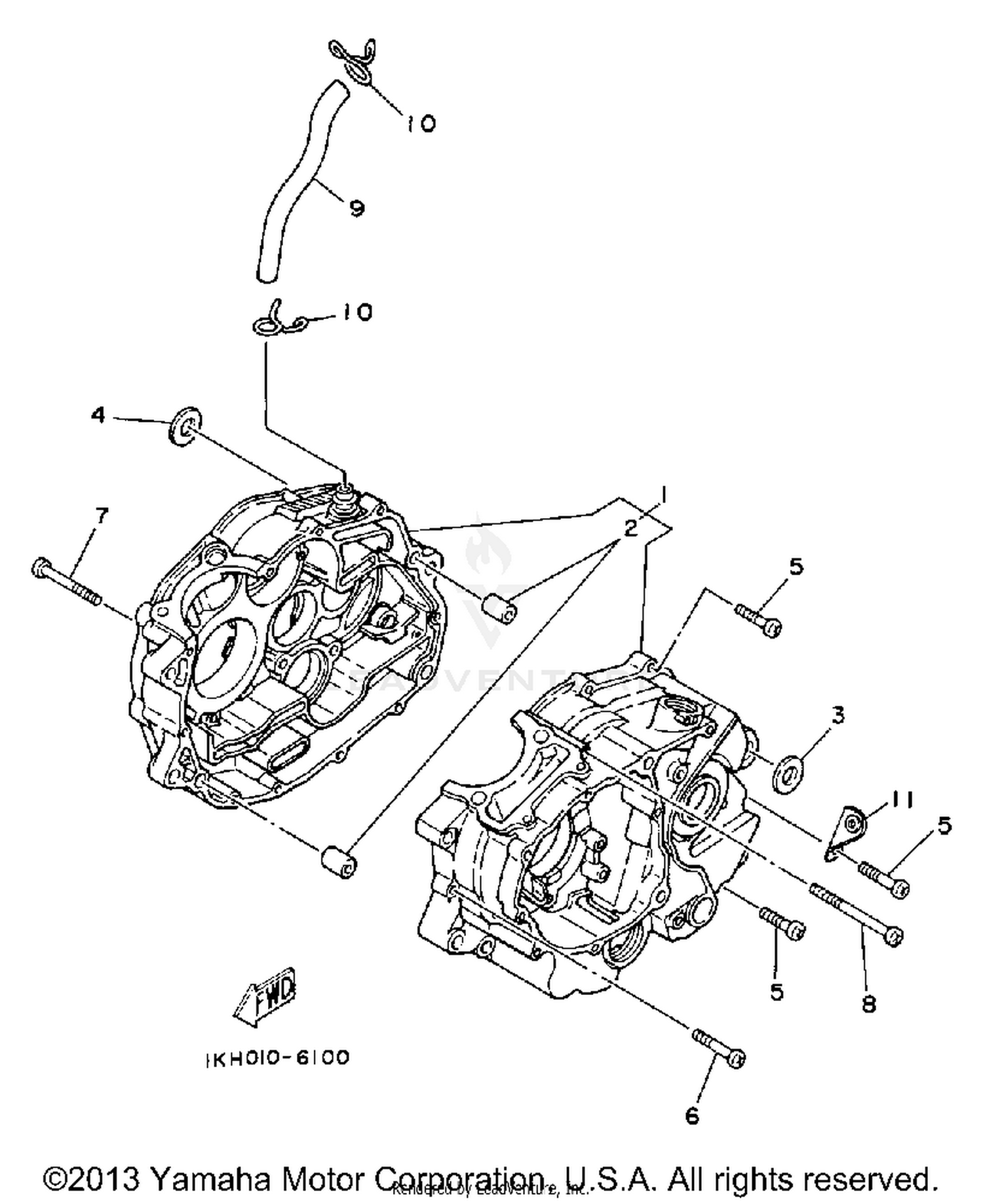

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE ASSY
1KH-15100-00-00
Superseded by 99999-03014-00
|
$1,047.99 | ||
|
Unavailable |
|||
|
#2
PIN, DOWEL
99510-12016-00
Superseded by 99530-12016-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#3
COLLAR
90387-125F1-00
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#4
COLLAR
90387-125F1-00
|
$2.85 | ||
|
Unavailable |
|||
|
#5
SCREW, PAN HEAD
98516-06030-00
Superseded by 98517-06030-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW, PAN HEAD
98506-06040-00
Superseded by 98507-06040-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW, PAN HEAD
98506-06080-00
Superseded by 98507-06080-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREW, PAN HEAD
98506-06085-00
Superseded by 98507-06085-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIPE, BREATHER 1
1KH-11166-01-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLIP
90467-14015-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
CLAMP
90465-08200-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
