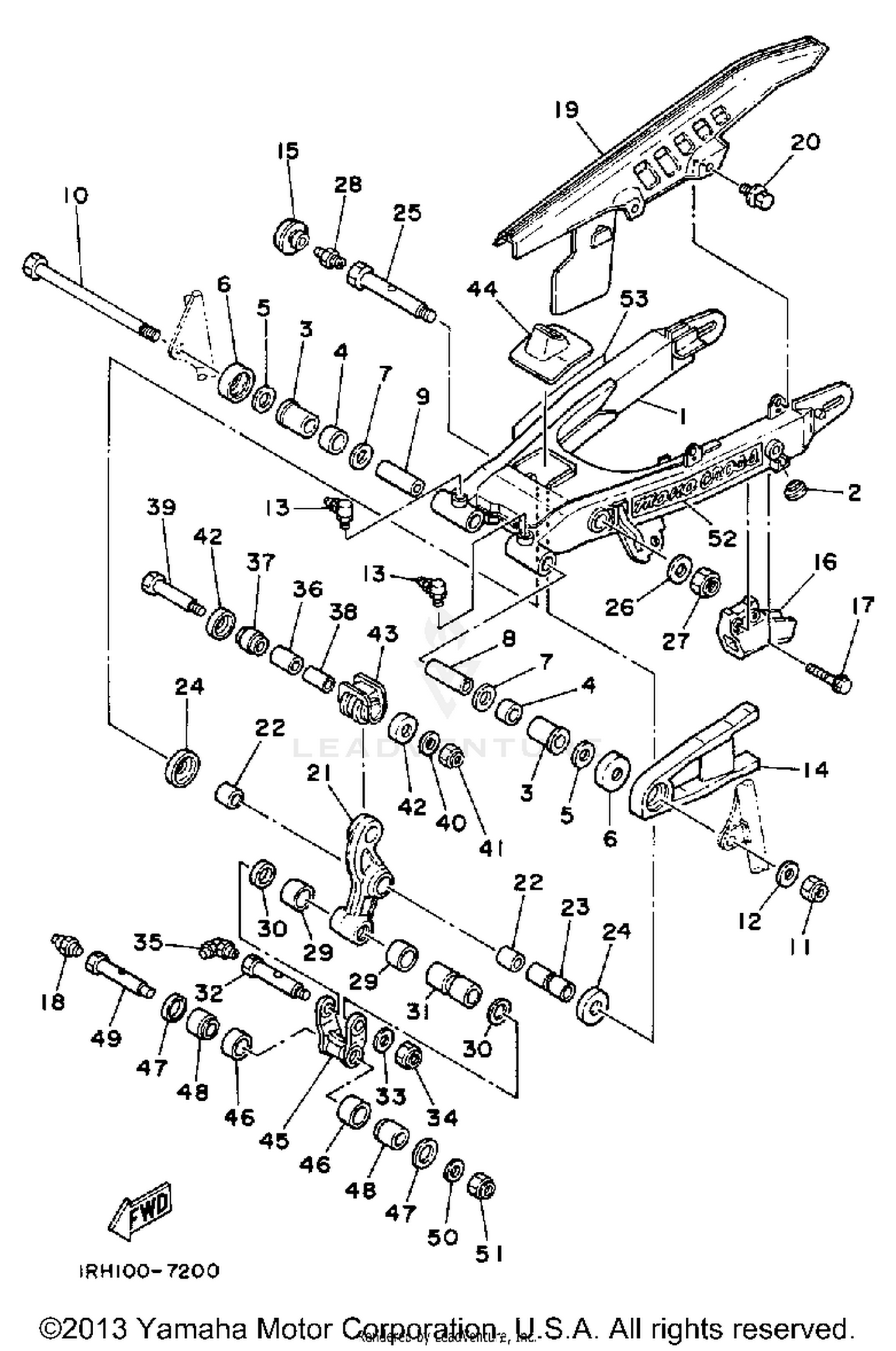

Swing Arm Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
REAR ARM
1RH-22110-00-35
|
$183.99 | ||
|
Unavailable |
|||
|
#2
PAD, SEAT
1L9-24741-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
BUSH
90386-18146-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BUSH, SOLID
90380-18139-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
SHIM
401-22127-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
COVER, THRUST 1
401-22128-01-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
OIL SEAL
93109-18020-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR
90387-121N2-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR
90387-127F2-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SHAFT, PIVOT
1KH-22141-00-00
Superseded by 34X-22141-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, SELF-LOCKING
90185-12134-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, PLATE
90201-126A7-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
NIPPLE, GREASE
93700-06005-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
SEAL, GUARD
1KH-22151-00-00
|
$91.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
CAP
34L-22117-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SUPPORT, CHAIN
39W-22199-01-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, FLANGE
91002-08040-00
Superseded by 95817-08040-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
NIPPLE, GREASE
93700-06M03-00
|
$7.65 | ||
|
Available to order. Add to View Price |
|||
|
#19
CASE, CHAIN
34X-22311-00-00
Superseded by 34X-22311-01-00
|
$30.99 | ||
|
Unavailable |
|||
|
#20
BOLT, WITH WASHER
90119-05062-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
ARM, RELAY
1KH-2217A-00-00
|
$40.56 | ||
|
Unavailable |
|||
|
#22
BUSH
90386-20120-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
COLLAR
90387-140J9-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
COVER, THRUST 1
34L-22128-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
BOLT, FLANGE
90105-12668-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, PLATE
90201-122H1-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
NUT, SELF-LOCKING
90185-12119-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
NIPPLE, GREASE
93700-06M03-00
|
$7.65 | ||
|
Unavailable |
|||
|
#29
BUSH
90386-18115-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
OIL SEAL
93109-18020-00
|
$12.49 | ||
|
Unavailable |
|||
|
#31
COLLAR
90387-126J8-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT
90109-10752-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
WASHER, PLATE
90201-100E9-00
Superseded by 90201-10M05-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
NUT, SELF-LOCKING
90185-10120-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#35
NIPPLE, GREASE
93700-06005-00
|
$11.49 | ||
|
Unavailable |
|||
|
#36
BUSH, SOLID
90380-16109-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#37
BUSH 2
22W-22124-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
COLLAR
90387-106G0-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#39
BOLT
90109-10689-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
WASHER, PLATE
90201-100E9-00
Superseded by 90201-10M05-00
|
$5.49 | ||
|
Unavailable |
|||
|
#41
NUT, SELF-LOCKING
90185-10120-00
|
$5.49 | ||
|
Unavailable |
|||
|
#42
COVER, THRUST 2
22W-22129-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#43
BOOT, RUBBER
22W-22189-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
BOOT, RUBBER
1KH-22189-00-00
|
$8.46 | ||
|
Unavailable |
|||
|
#45
ROD, CONNECTING 1
1KH-2217F-00-00
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
BUSH
90386-18115-00
|
$15.99 | ||
|
Unavailable |
|||
|
#47
OIL SEAL
93109-18020-00
|
$12.49 | ||
|
Unavailable |
|||
|
#48
COLLAR
90387-121L6-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#49
BOLT
90109-10752-00
|
$22.99 | ||
|
Unavailable |
|||
|
#50
WASHER, PLATE
90201-100E9-00
Superseded by 90201-10M05-00
|
$5.49 | ||
|
Unavailable |
|||
|
#51
NUT, SELF-LOCKING
90185-10120-00
|
$5.49 | ||
|
Unavailable |
|||
|
#52
EMBLEM, REAR ARM
1RH-2218A-00-00
|
$16.99 | ||
|
Unavailable |
|||
|
#53
EMBLEM, REAR ARM
2HH-2218A-00-00
|
$8.49 | ||
|
Unavailable |
|||
