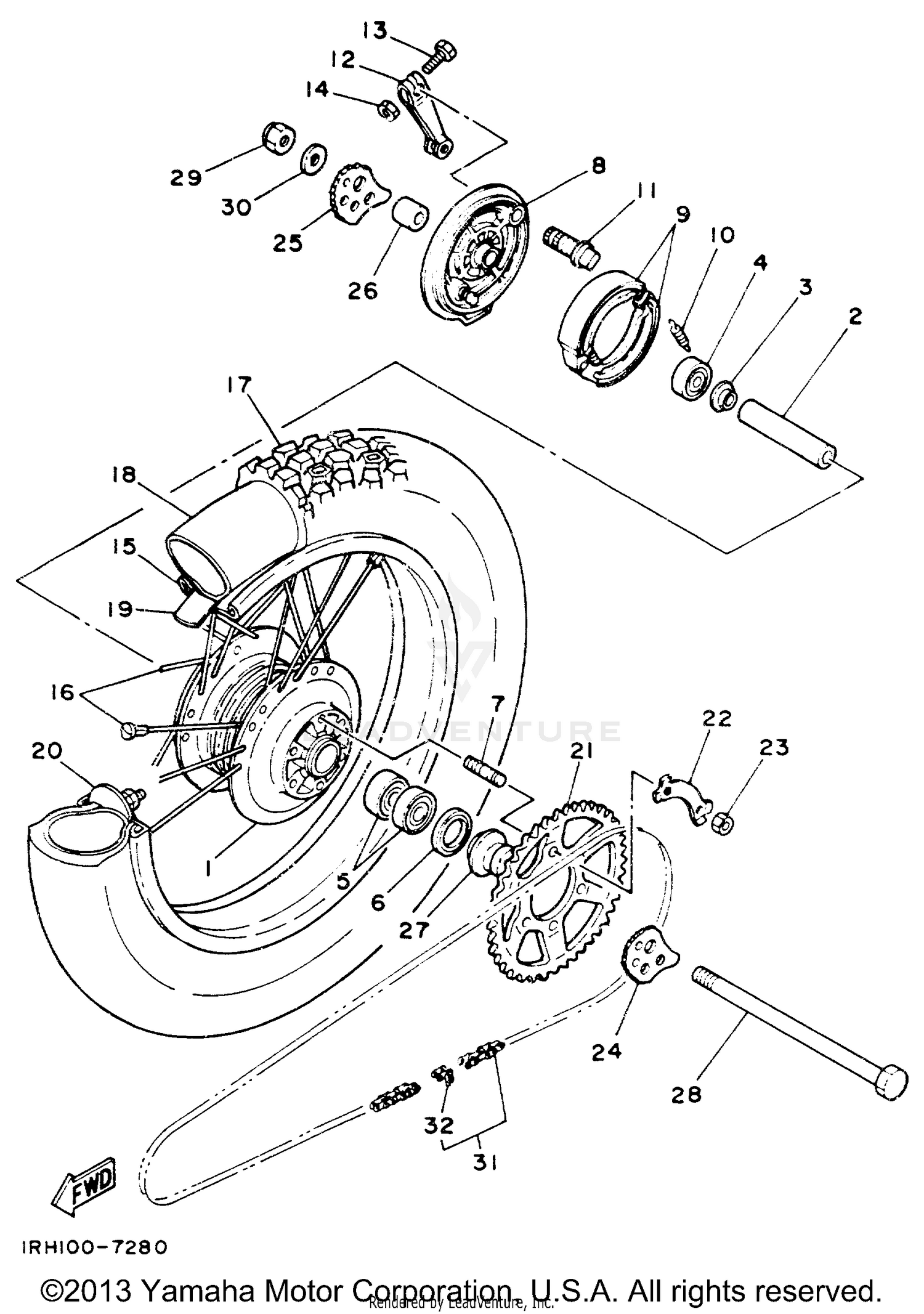

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB, REAR
15A-25311-00-98
|
$246.99 | ||
|
Unavailable |
|||
|
#2
SPACER
90560-15313-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
FLANGE, SPACER 2
146-25116-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING
93306-20226-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BEARING
93306-20209-00
Superseded by 93306-20205-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
OIL SEAL
93104-22018-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, STUD
90116-08218-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLATE, BRAKE SHOE
15A-25321-03-98
Superseded by 15A-25321-04-98
|
$103.99 | ||
|
Unavailable |
|||
|
#9
BRAKE SHOE KIT
4BE-W2536-00-00
Superseded by 4BE-W253E-00-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING, TENSION
90506-15260-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
CAMSHAFT
5U7-25351-00-00
|
$31.99 | ||
|
Unavailable |
|||
|
#12
LEVER, CAMSHAFT
29M-25355-00-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
90101-06278-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#15
RIM 1.85
94418-18337-00
|
$308.99 | ||
|
Unavailable |
|||
|
#16
SPOKE SET, REAR
23J-25304-00-00
|
$118.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
350-18 4PR.M22 BS
94135-183J2-00
|
$76.30 | ||
|
Unavailable |
|||
|
#18
TUBE (4.10-18)
94241-18153-00
|
$93.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BAND, RIM (2.50-18)
94345-18081-00
Superseded by 94340-18086-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
SPACER, BEAD
3Y1-25394-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
SPROCKET, DRVN 50T
1KH-25450-50-00
|
$40.99 | ||
|
Unavailable |
|||
|
#22
WASHER, LOCK
90215-08160-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT
90170-08258-00
|
$3.30 | ||
|
Available to order. Add to View Price |
|||
|
#24
PULLER, CHAIN 1
5H0-25388-00-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
PULLER, CHAIN 2
5H0-25389-00-00
Superseded by 5MP-25389-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
COLLAR
90387-151R1-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
COLLAR, WHEEL
1KH-25383-01-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
AXLE, WHEEL
31G-25381-00-00
Superseded by 99999-04097-00
|
$75.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
NUT, SELF-LOCKING
90185-14081-00
Superseded by 90185-14150-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER, PLATE
90201-14740-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
CHAIN (D.I.D. 428VS-124VL)
94581-33124-00
|
$193.99 | ||
|
Unavailable |
|||
|
#32
JOINT, CHAIN (DID 428V2-FJ)
94681-33011-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
