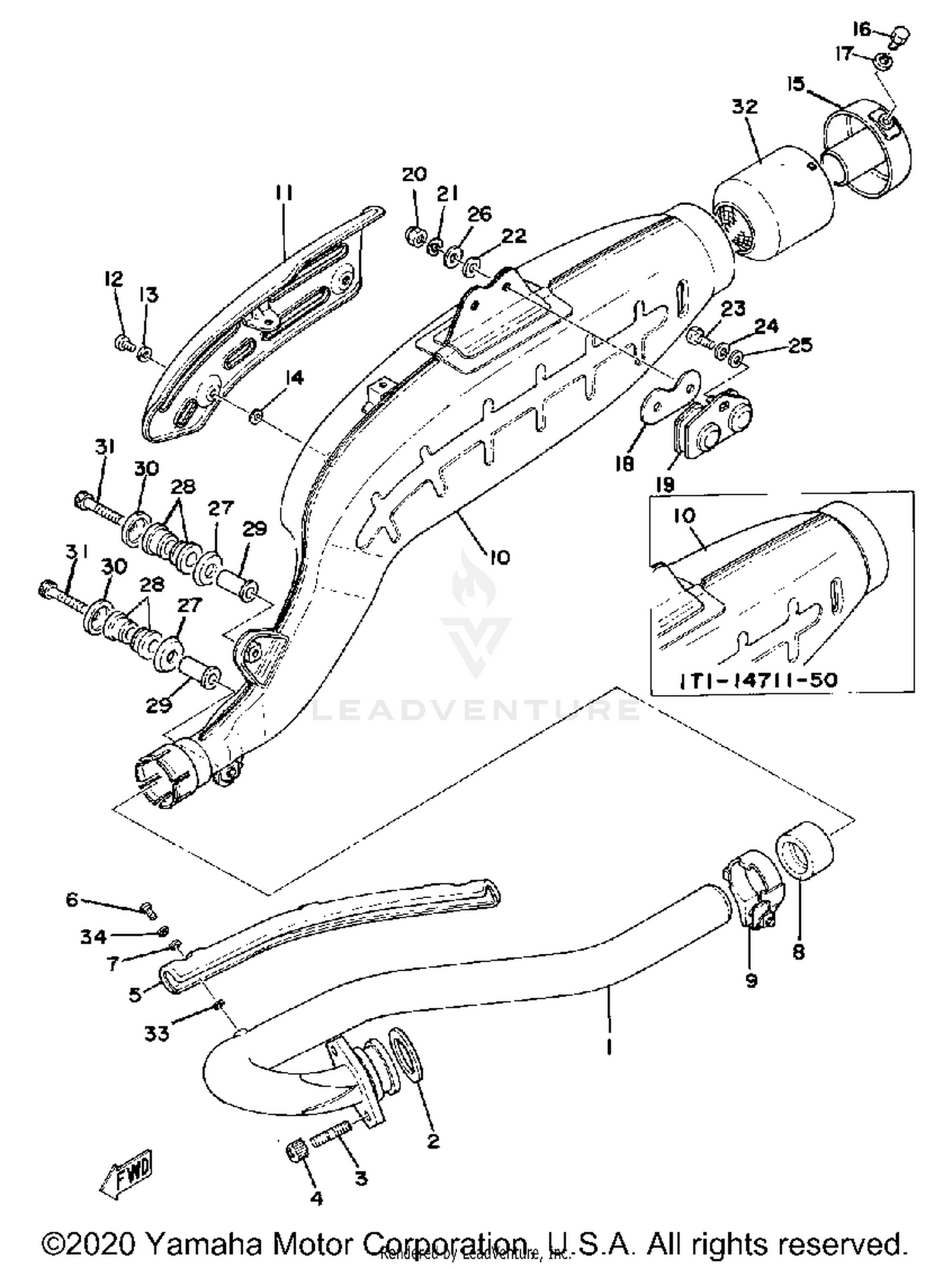

Exhaust Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PIPE, EXHAUST L
1T1-14611-03-00
|
$255.99 | ||
|
Unavailable |
|||
|
#2
GASKET, EXHAUST PIPE
90430-38054-00
Superseded by 3GD-14613-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, STUD
95621-08615-00
Superseded by 95617-08615-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT
90179-08004-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
PROTC, EXHAUST PIPE
1T1-14628-00-00
|
$78.99 | ||
|
Unavailable |
|||
|
#6
SCREW, BIND
98906-06010-00
Superseded by 98907-06010-00
|
$1.61 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER, PLATE
90202-05187-00
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
|
#8
GASKET, MUFFLER
4X7-14714-00-00
Superseded by 3EG-14714-00-00
|
$72.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
BAND, SILENCER
1T1-14788-00-00
|
$67.99 | ||
|
Unavailable |
|||
|
#10
MUFFLER L
1T1-14711-32-00
|
$191.99 | ||
|
Unavailable |
|||
|
#11
PROTECTOR, MUFF 1
1T1-14718-00-00
|
$145.99 | ||
|
Unavailable |
|||
|
#12
SCREW, BIND
98906-06010-00
Superseded by 98907-06010-00
|
$1.61 | ||
|
Unavailable |
|||
|
#13
WASHER, PLATE
90202-05187-00
|
$1.35 | ||
|
Unavailable |
|||
|
#14
WASHER, PROTECTOR
3WX-14766-00-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
PIPE, OUTLET
1T1-14752-01-00
|
$31.04 | ||
|
Unavailable |
|||
|
#16
BOLT(3JP)
97011-06010-00
Superseded by 97017-06010-00
|
$3.69 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, PAN HEAD
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#18
GASKET,SILENCER
1T1-14755-01-00
Superseded by 1T1-14755-02-00
|
$3.60 | ||
|
Unavailable |
|||
|
#19
STAY, MUFFLER
1T1-14791-02-00
|
$79.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT, U
95611-08100-00
Superseded by 95617-08100-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, PLATE
90202-08103-00
|
$2.85 | ||
|
Unavailable |
|||
|
#23
BOLT (661)
97313-08020-00
Superseded by 97013-08020-00
|
$1.14 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Unavailable |
|||
|
#25
WASHER, PLATE
90201-08649-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, PLATE
90201-08326-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER, SPEC''L SHAP
90209-12163-00
|
$9.49 | ||
|
Unavailable |
|||
|
#28
DAMPER, MUFFLER
1T1-14747-01-00
|
$17.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
COLLAR
90387-08572-00
|
$10.49 | ||
|
Unavailable |
|||
|
#30
WASHER
90209-08098-00
Superseded by 90209-08008-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, HEX. SOCKET HEAD
91316-08050-00
Superseded by 91317-08050-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
ARRESTER, SPARK
1E6-14786-01-00
|
$47.04 | ||
|
Unavailable |
|||
|
#33
WASHER, PROTECTOR
3WX-14766-00-00
|
$16.49 | ||
|
Unavailable |
|||
|
#34
WASHER, WAVE
90206-06090-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
