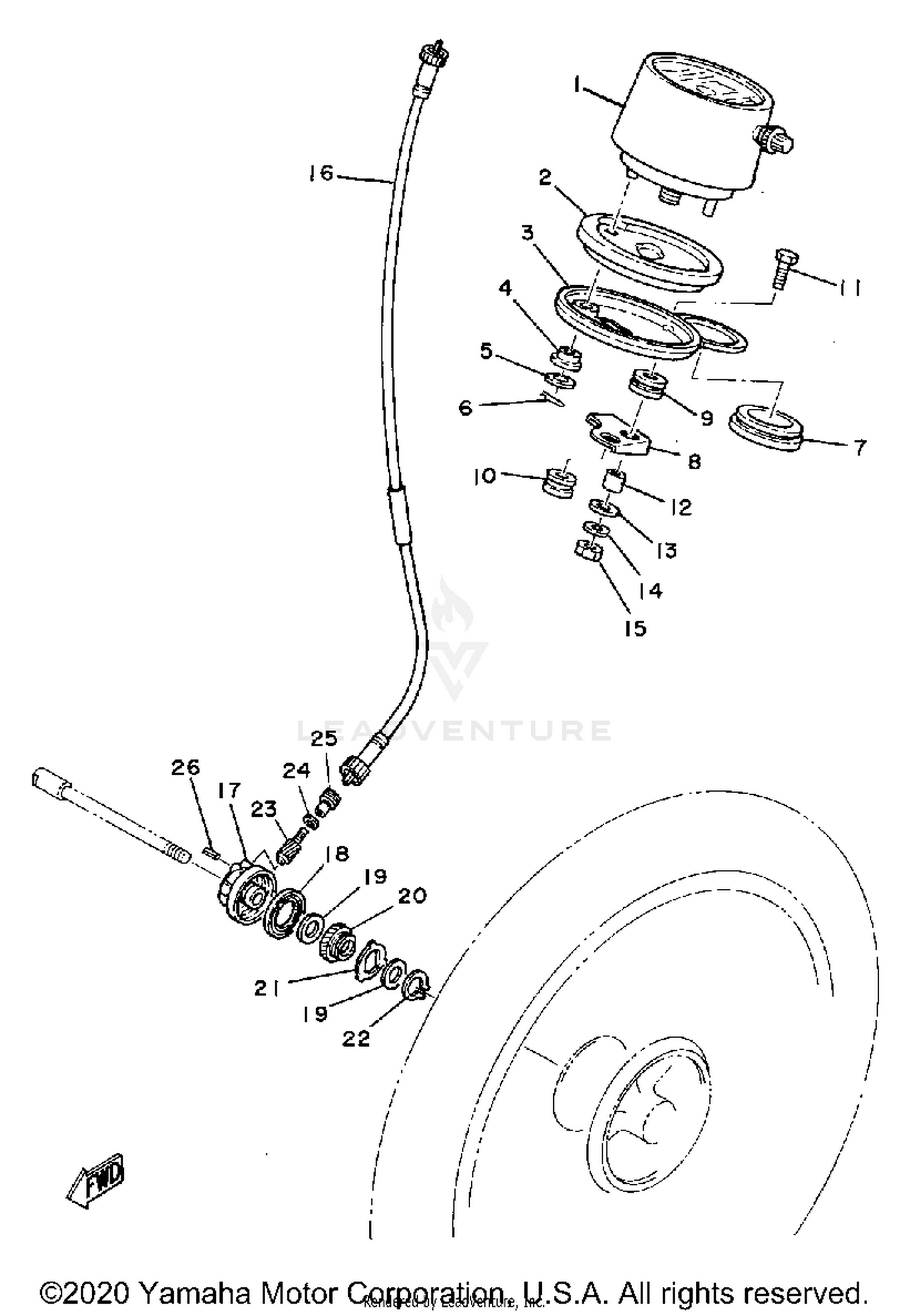

Speedometer - Meter Gear Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPEEDOMETER ASSEMBLY
1K7-83510-10-00
|
$87.82 | ||
|
Unavailable |
|||
|
#1
SPEEDOMETER ASSEMBLY
1K7-83510-30-00
|
$102.99 | ||
|
Unavailable |
|||
|
#2
DAMPER
1K7-83513-00-00
|
$4.84 | ||
|
Unavailable |
|||
|
#3
BRACKET, METER
1K7-83519-01-00
|
$9.49 | ||
|
Unavailable |
|||
|
#4
DAMPER 2
1M1-83526-00-00
Superseded by 1M1-83526-01-00
|
$4.30 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, PLATE
90201-052E2-00
Superseded by 90201-05032-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
TT500D SPEEDOKIT
ACC-01100-34-00
|
$63.00 | ||
|
Unavailable |
|||
|
#6
CLIP
90468-10050-00
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#7
DAMPER
1K7-83592-00-00
|
$3.36 | ||
|
Unavailable |
|||
|
#8
GROMMET
90480-14052-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
GROMMET
90480-14052-00
|
$5.49 | ||
|
Unavailable |
|||
|
#10
GROMMET
90480-14052-00
|
$5.49 | ||
|
Unavailable |
|||
|
#11
BOLT
97011-06020-00
Superseded by 97017-06020-00
|
$3.90 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR
90387-06216-00
Superseded by 90387-060A3-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER PLAIN
90201-06067-00
Superseded by 90201-06380-00
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PAN HEAD
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, HEXAGON
95380-06600-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPDMTR, CABLE
34X-83550-01-00
Superseded by 16M-83550-01-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
GEAR UNIT ASSEMBLY
1W2-25190-00-00
Superseded by 3XP-25190-00-00
|
$165.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
OIL SEAL
93106-40027-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, PLATE
90201-22283-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
GEAR, DRIVE
1W2-25135-00-00
|
$21.99 | ||
|
Unavailable |
|||
|
#21
CLUTCH, METER
1K7-25149-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#22
CIRCLIP
93410-22014-00
Superseded by 99009-22400-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
GEAR, METER
1W2-25138-00-00
|
$12.99 | ||
|
Unavailable |
|||
|
#24
SHIM, ROD
102-18416-00-00
|
$4.65 | ||
|
Unavailable |
|||
|
#25
BUSH
306-25136-00-00
|
$19.99 | ||
|
Unavailable |
|||
|
#26
PIN, SPRING
91609-20014-00
|
$1.35 | ||
|
Available to order. Add to View Price |
|||
