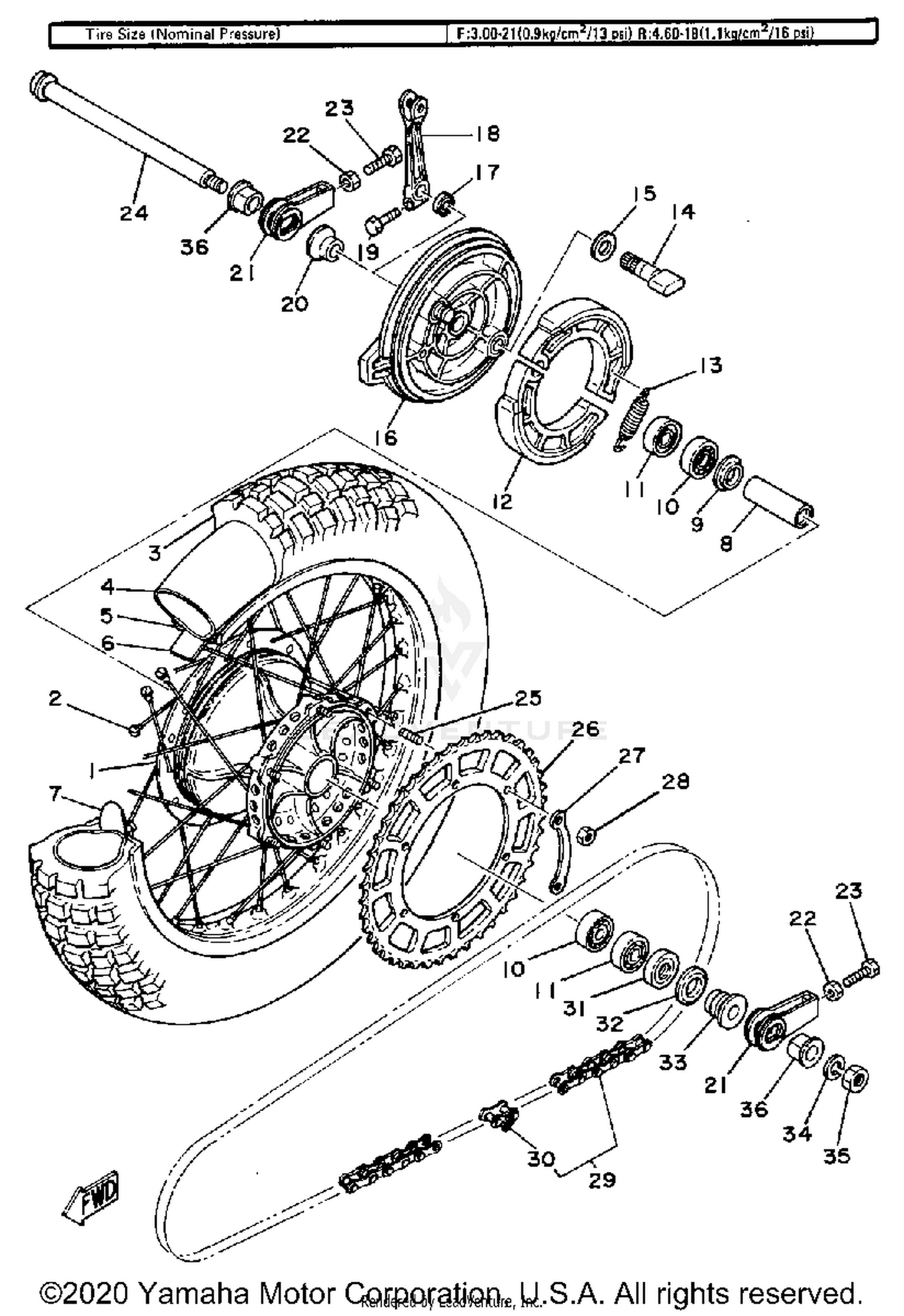

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB, REAR
483-25311-13-98
|
$179.99 | ||
|
Unavailable |
|||
|
#1
SPOKE SET, INNER 2
431-25396-90-00
|
$4.50 | ||
|
Unavailable |
|||
|
#1
NO LONGER AVAILABLE
431-25391-90-00
|
$4.50 | ||
|
Unavailable |
|||
|
#1
SPOKE SET, OUTER 1
431-25392-90-00
|
$4.05 | ||
|
Unavailable |
|||
|
#2
SPOKE SET, REAR (431-25304-00)
431-25304-01-00
|
$147.99 | ||
|
Unavailable |
|||
|
#3
DUN 460X18 K190
94146-18511-00
|
$56.54 | ||
|
Unavailable |
|||
|
#4
TUBE (110-140/80-100-18 M/C)
94240-18098-00
Superseded by 94212-18188-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
RIM 2.15X18 (94421-18151) (2.15
94421-18238-00
|
$307.99 | ||
|
Unavailable |
|||
|
#6
BAND, RIM (2.50-18)
94340-18086-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPACER, BEAD
1T1-25394-01-00
|
$83.99 | ||
|
Unavailable |
|||
|
#8
SPACER, BEARING
483-25317-01-00
|
$13.49 | ||
|
Unavailable |
|||
|
#9
FLANGE, SPACER
483-25315-00-00
|
$4.17 | ||
|
Unavailable |
|||
|
#10
BEARING (B6203DU)
93306-20310-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
BEARING (B6203DU)
93306-20310-00
|
$34.99 | ||
|
Unavailable |
|||
|
#12
BRAKE SHOE KIT
1W4-W2536-00-00
Superseded by 4GR-W253E-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SPRING, TENSION
90507-20002-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
CAMSHAFT
1E6-25151-00-00
|
$46.99 | ||
|
Unavailable |
|||
|
#15
SHIM, CAMSHAFT
148-25353-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
PLATE, BRAKE SHOE
1W4-25321-00-98
|
$119.99 | ||
|
Unavailable |
|||
|
#17
SEAL, CAMSHAFT
148-25359-00-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#18
LEVER, CAMSHAFT
2Y0-25355-00-00
|
$33.61 | ||
|
Unavailable |
|||
|
#19
BOLT
90101-06291-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
COLLAR
90387-17651-00
|
$4.36 | ||
|
Unavailable |
|||
|
#21
PULLER, CHAIN 1
2K8-25388-00-00
|
$15.99 | ||
|
Unavailable |
|||
|
#22
NUT
95303-08700-00
Superseded by 95380-08700-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT
90101-08699-00
Superseded by 90101-08060-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
AXLE, WHEEL
2K8-25381-00-00
|
$68.17 | ||
|
Unavailable |
|||
|
#25
BOLT, STUD
90116-08218-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
SPROCKET, DRIVN 48T
431-25448-04-XX
|
$52.99 | ||
|
Unavailable |
|||
|
#26
SPROCKET, DRIVN 50TSPROCKET WHE
431-25450-04-XX
|
$93.99 | ||
|
Unavailable |
|||
|
#26
SPROCKET, DRIVN 52T
431-25452-04-XX
|
$51.99 | ||
|
Unavailable |
|||
|
#26
SPROCKET, DRIVN 54TSPROCKET WHE
431-25454-04-XX
|
$93.99 | ||
|
Unavailable |
|||
|
#26
SPROCKET, DRIVN 54T (54T)
583-25454-10-00
|
$49.30 | ||
|
Unavailable |
|||
|
#26
SPROCKET, DRIVN 52T (52T)
583-25452-10-00
|
$71.96 | ||
|
Unavailable |
|||
|
#26
SPROCKET, DRIVN 50T (50T)
583-25450-10-00
|
$41.99 | ||
|
Unavailable |
|||
|
#26
SPROCKET, DRIVN 48T (48T)
583-25448-10-00
|
$38.99 | ||
|
Unavailable |
|||
|
#26
SPROCKET, DRIVN 46T
583-25446-10-00
|
$38.99 | ||
|
Unavailable |
|||
|
#26
SPROCKET, DRIVEN 44T
38W-25444-20-00
|
$46.99 | ||
|
Unavailable |
|||
|
#26
SPROCKET, DRIVN 40T
583-25440-10-00
|
$34.99 | ||
|
Unavailable |
|||
|
#26
SPROCKET, DRIVN 42T
583-25442-10-00
|
$35.99 | ||
|
Unavailable |
|||
|
#27
WASHER
583-25412-00-00
Superseded by 2XJ-25412-00-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#28
NUT, HEXAGON
90170-08193-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#29
CHAIN 520DS-104L
94585-20105-00
Superseded by 9Y585-20103-00
|
$105.99 | ||
|
Unavailable |
|||
|
#30
JOINT,CHAIN (DID 520DM-RJ)
94685-20011-00
Superseded by 94681-68001-00
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#31
OIL SEAL, SD-TYPE
93102-25061-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
COVER, HUB DUST
431-25367-00-00
|
$8.99 | ||
|
Unavailable |
|||
|
#33
COLLAR
90387-17650-00
|
$8.49 | ||
|
Unavailable |
|||
|
#34
WASHER
92901-16100-00
Superseded by 92907-16100-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
NUT, HEXAGON
90170-16177-00
|
$9.99 | ||
|
Unavailable |
|||
|
#36
BUSH, SOLID
90381-17027-00
|
$7.99 | ||
|
Unavailable |
|||
