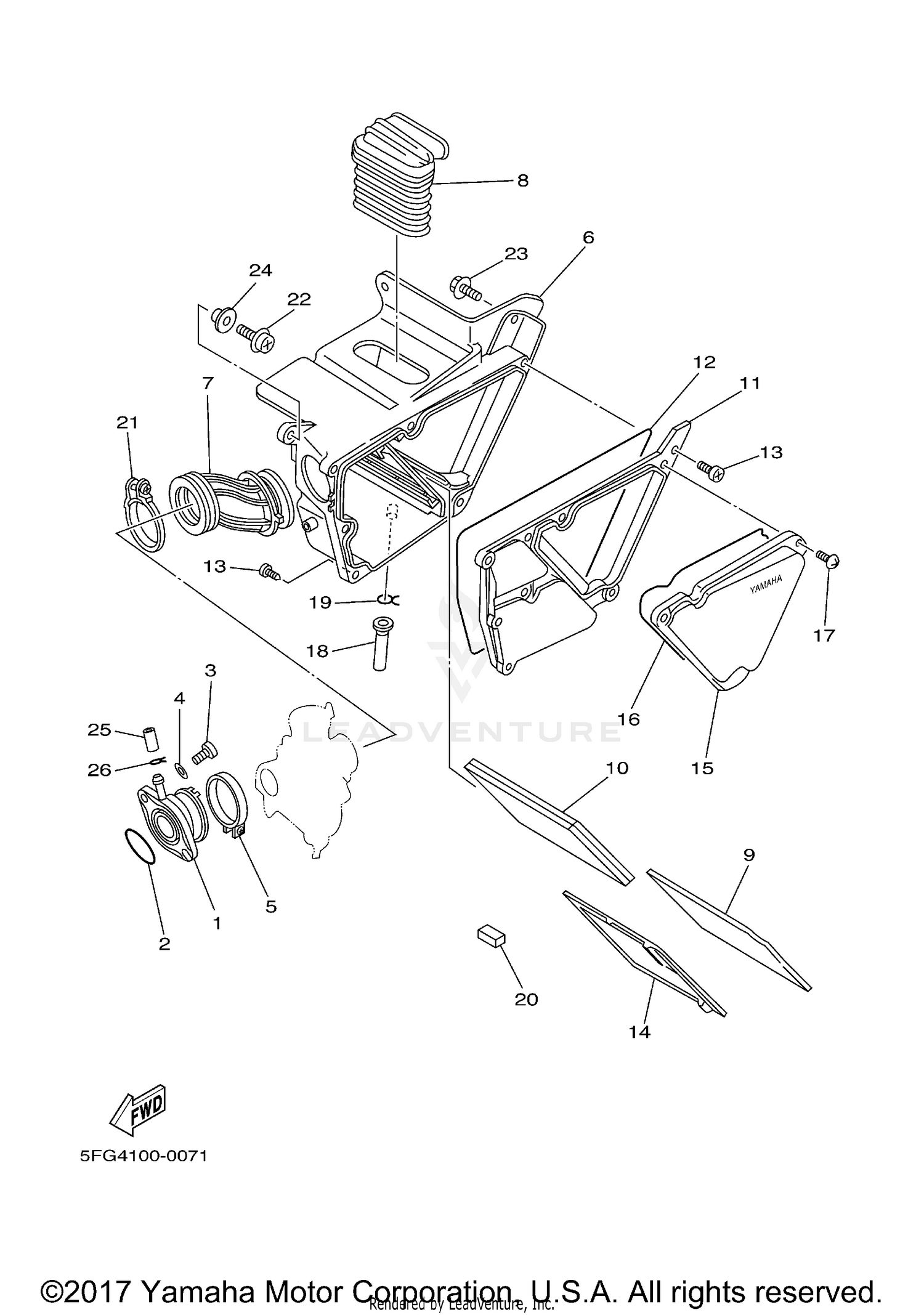

Intake Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
JOINT, CARBURETOR 1
2LN-13586-01-00
|
$93.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
O-RING
93210-35537-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT, BUTTON HEAD
92017-06020-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER
9290M-06600-00
|
$0.20 | ||
|
Available to order. Add to View Price |
|||
|
#5
HOSE CLAMP ASSY
90460-49293-00
Superseded by 90450-49001-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
CASE, AIR CLEANER 1
3RW-14411-02-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
JOINT, AIR CLEANER 1
3RW-14453-01-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
DUCT
1KH-14437-01-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
GUIDE
1KH-14458-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
ELEMENT,AIR CLNR
1KH-14451-00-00
Superseded by 1KH-14451-01-00
|
$4.90 | ||
|
Available to order. Add to View Price |
|||
|
#11
CAP, CLEANER CASE 1
4JG-14412-00-00
|
$47.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SEAL
1KH-14462-00-00
Superseded by 51Y-14462-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW, TAPPING
97707-50520-00
Superseded by 97707-50620-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLATE, ELEMENT
4JG-14472-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
CAP, CLEANER CASE 2
3RW-14422-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SEAL
12R-14452-00-00
Superseded by 1VJ-14462-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW, BINDING
90154-05013-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
PIPE, DRAIN
34X-1443E-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLIP
90467-11106-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#20
SEAL
36Y-14462-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
HOSE CLAMP ASSY
90460-56105-00
Superseded by 90450-56001-00
|
$16.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW, WITH WASHER
90159-06016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, WITH WASHER
90119-06172-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
COLLAR
90387-07789-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
PLUG, BLIND
16G-13569-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
CLIP
90467-10039-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
