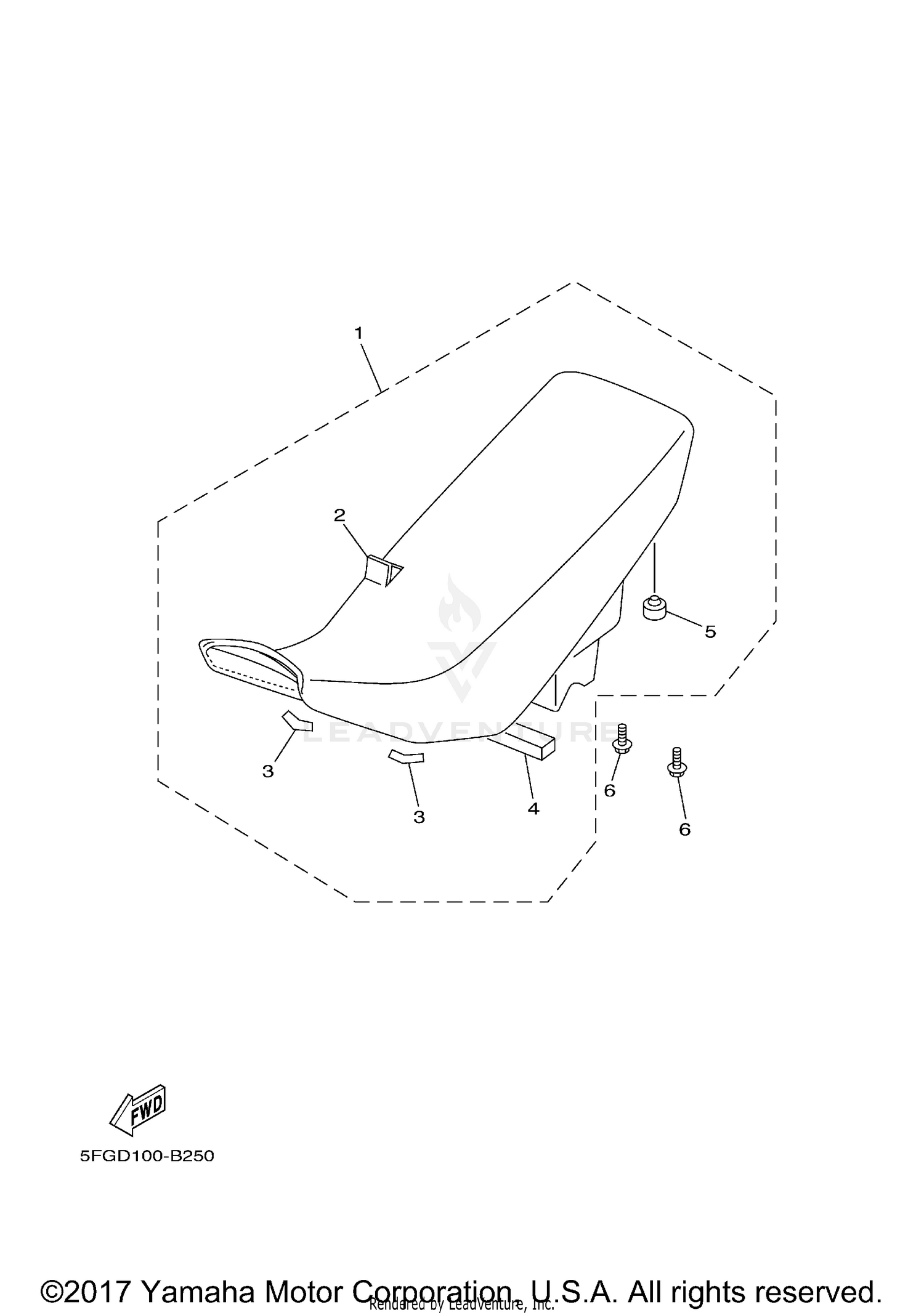

Seat Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
DOUBLE SEAT ASSY
5FG-F4730-10-00
|
$515.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
COVER, SEAT
5FG-F4731-00-00
|
$78.99 | ||
|
Unavailable |
|||
|
#3
DAMPER
3VC-F4737-00-00
Superseded by 3VC-F473Y-00-00
|
$2.35 | ||
|
Unavailable |
|||
|
#4
SEAL
4VW-F475M-00-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#5
PAD, SEAT
4VW-F4741-00-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT, FLANGE
95807-06016-00
Superseded by 95817-06016-00
|
$2.60 | ||
|
Available to order. Add to View Price |
|||
