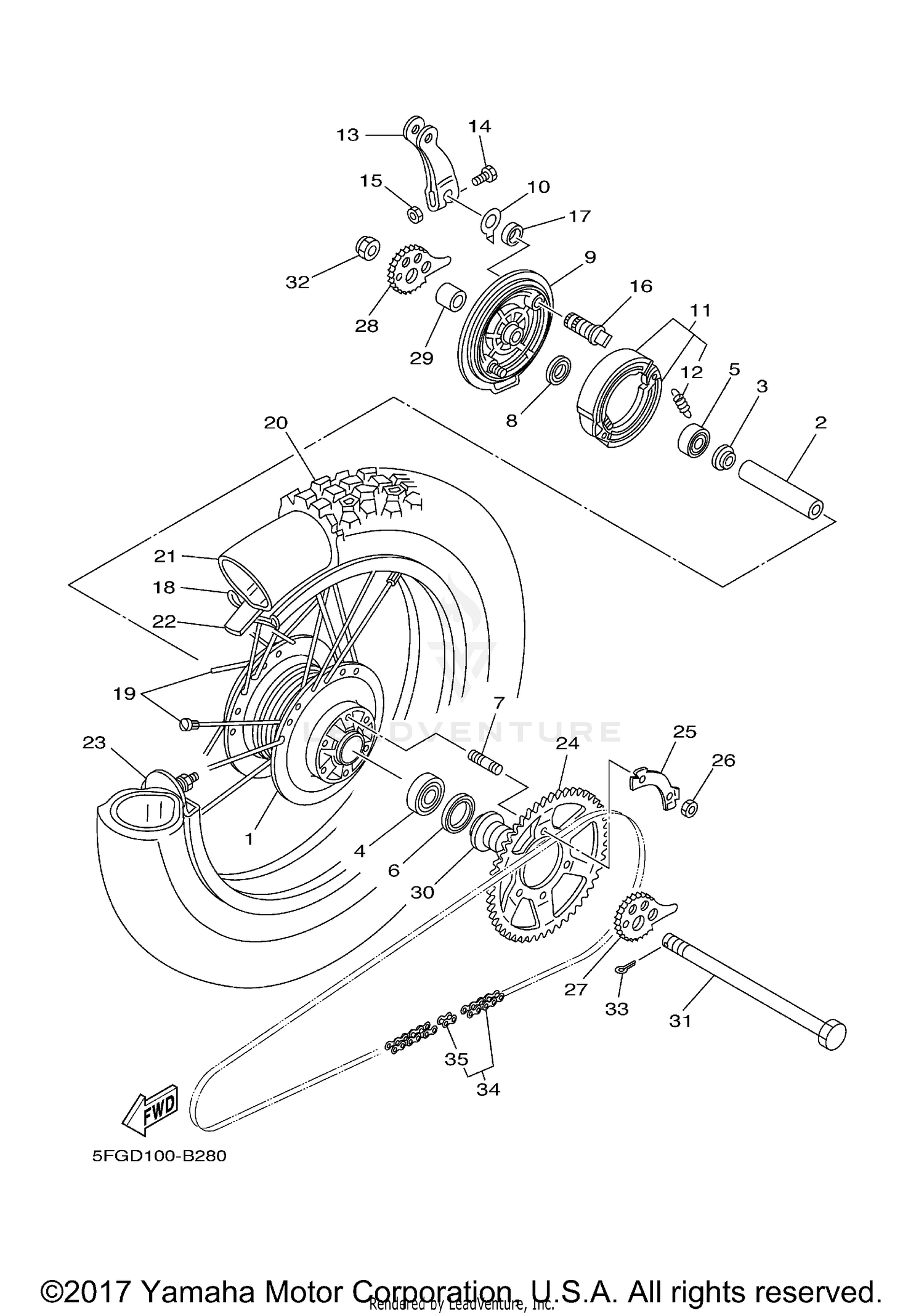

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB, REAR
4AN-F5311-10-35
|
$239.99 | ||
|
Unavailable |
|||
|
#2
SPACER
5L9-F5317-00-00
Superseded by 90560-15313-00
|
$43.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
FLANGE,SPACER 1
1YH-F5115-00-00
Superseded by 146-25115-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING
93306-30202-00
Superseded by 93306-30212-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BEARING
93306-20205-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
OIL SEAL
93106-26005-00
|
$6.75 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT, STUD
90116-10221-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#8
OIL SEAL, SO-TYPE
93104-22018-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
PLATE, BRAKE SHOE
4AN-F5321-10-35
|
$179.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
PLATE, INDICATOR
3Y6-2533A-01-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BRAKE SHOE KIT
3KG-W253E-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
SPRING, TENSION
90506-15260-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
LEVER, CAMSHAFT
5CF-F5355-00-00
|
$73.99 | ||
|
Unavailable |
|||
|
#14
BOLT
90101-06278-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT
9530M-06600-00
Superseded by 95317-06600-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#16
CAMSHAFT
248-25351-10-00
Superseded by 2RH-25351-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SEAL, CAMSHAFT
4AN-F5359-00-00
|
$0.65 | ||
|
Available to order. Add to View Price |
|||
|
#18
RIM (2.15-18)
94421-18854-00
|
$182.99 | ||
|
Unavailable |
|||
|
#19
SPOKE SET, REAR
4LR-25304-00-00
|
$120.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
TIRE (100/100-18 59P MT21 TT)
94110-188F3-00
|
$203.15 | ||
|
Unavailable |
|||
|
#21
TUBE (4.10-18)
94211-18850-00
Superseded by 94241-18153-00
|
$93.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BAND, RIM (2.15-18)
94325-18801-00
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#23
SPACER, BEAD
3Y1-25394-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
SPROCKET, DRIVEN (58T)
5FG-F5458-01-00
|
$60.99 | ||
|
Unavailable |
|||
|
#25
WASHER
4LR-F5412-00-00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT
90170-10219-00
Superseded by 90170-10011-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
PULLER, CHAIN 1
5H0-25388-00-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
PULLER, CHAIN 2
5MP-25389-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
COLLAR
90387-15W35-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
COLLAR, WHEEL
4VW-F5383-00-00
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
AXLE, WHEEL
31G-25381-00-00
Superseded by 99999-04097-00
|
$75.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
NUT, CASTLE
90171-14031-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
PIN, COTTER
91401-30028-00
Superseded by 91490-30030-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
CHAIN (D.I.D. 428V2)
94581-33128-00
Superseded by 9Y581-33127-00
|
$202.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
JOINT, CHAIN (DID 428V2-FJ)
94681-33011-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
