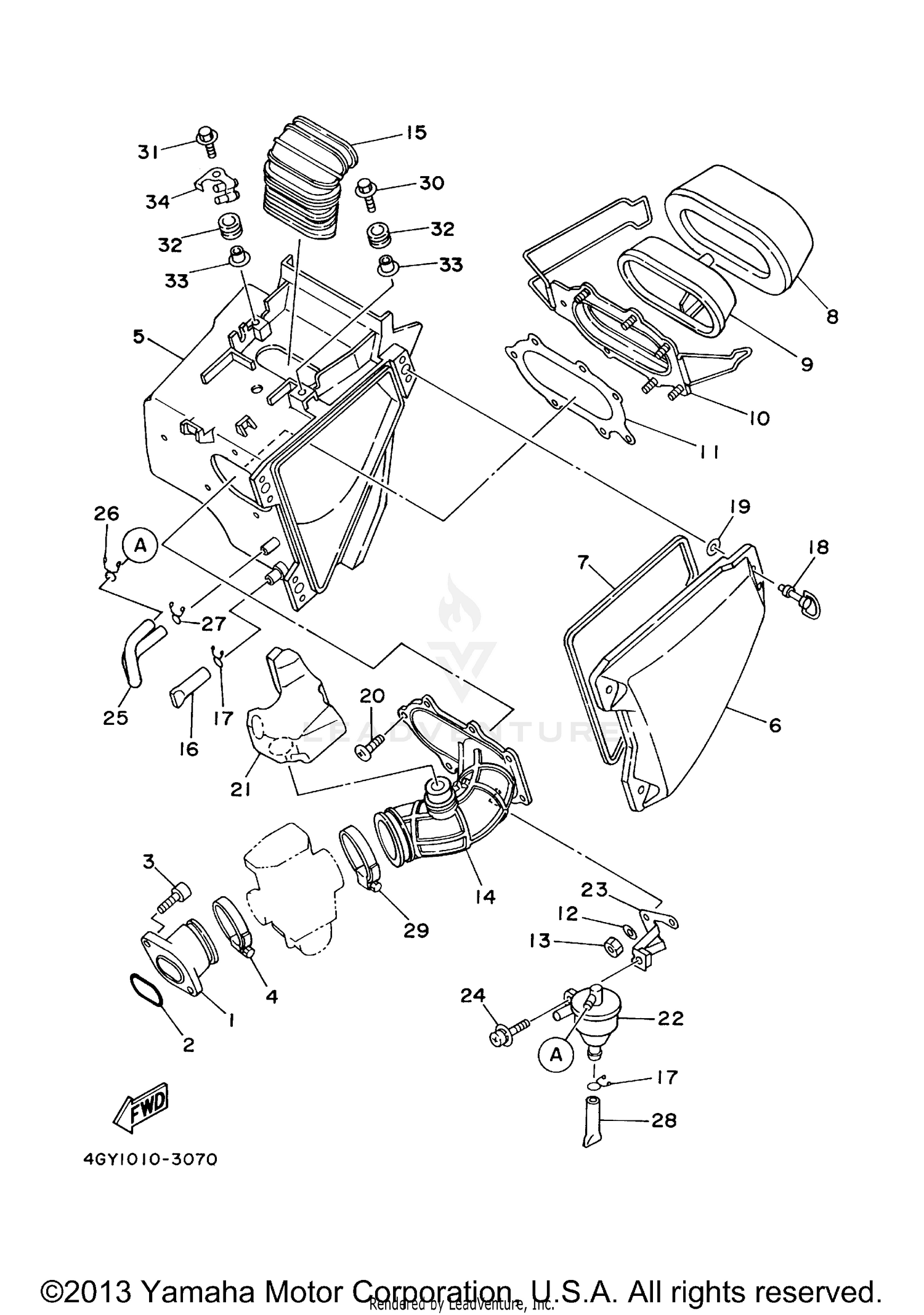

Intake Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
JOINT, CARBURETOR 1
4GY-13586-00-00
|
$122.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
O-RING
93210-40659-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT
91317-06020-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
HOSE CLAMP ASSY
90460-52210-00
Superseded by 90450-50001-00
|
$19.00 | ||
|
Unavailable |
|||
|
#5
AIR CLEANER CASE ASSY
4GY-14401-01-00
|
$185.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
CAP, CLEANER CASE 1
4GY-14412-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SEAL
15A-14462-00-00
Superseded by 1VJ-14462-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
ELEMENT, AIR CLEANER
1LN-14451-00-00
Superseded by 1LN-14451-01-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
GUIDE
4GY-14458-00-00
|
$68.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
HOLDER, GUIDE
4GY-14459-00-00
|
$76.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
SEAL
1LN-14462-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER
92907-05200-00
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT, U
95607-05100-00
Superseded by 95617-05100-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
JOINT, AIR CLEANER 1
4GY-14453-00-00
Superseded by 4GY-14453-01-00
|
$122.99 | ||
|
Unavailable |
|||
|
#15
DUCT
4GY-14437-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIPE, DRAIN
3AJ-1443E-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLIP
90467-15012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
HEAD
4GY-28386-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, SPECIAL 1
2TK-21757-00-00
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW, BINDING
90154-05004-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#21
CHAMBER, AIR 2
4GY-13591-00-00
|
$58.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
BREATHER ASSY
4GY-15370-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
STAY
4GY-14413-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW, WITH WASHER
90159-06056-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
PIPE, BREATHER 2
4GY-11167-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
CLIP
90467-11106-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#27
CLIP
90467-12052-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
PIPE, DRAIN
4GY-1443E-00-00
|
$4.90 | ||
|
Available to order. Add to View Price |
|||
|
#29
HOSE CLAMP ASSY
90460-58124-00
Superseded by 90450-58002-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT, WITH WASHER
90119-06096-00
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT, WITH WASHER
90119-06097-00
Superseded by 90119-06172-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
GROMMET
90480-13428-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
COLLAR
90387-06737-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
PIPE, JOINT
4GY-14485-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
