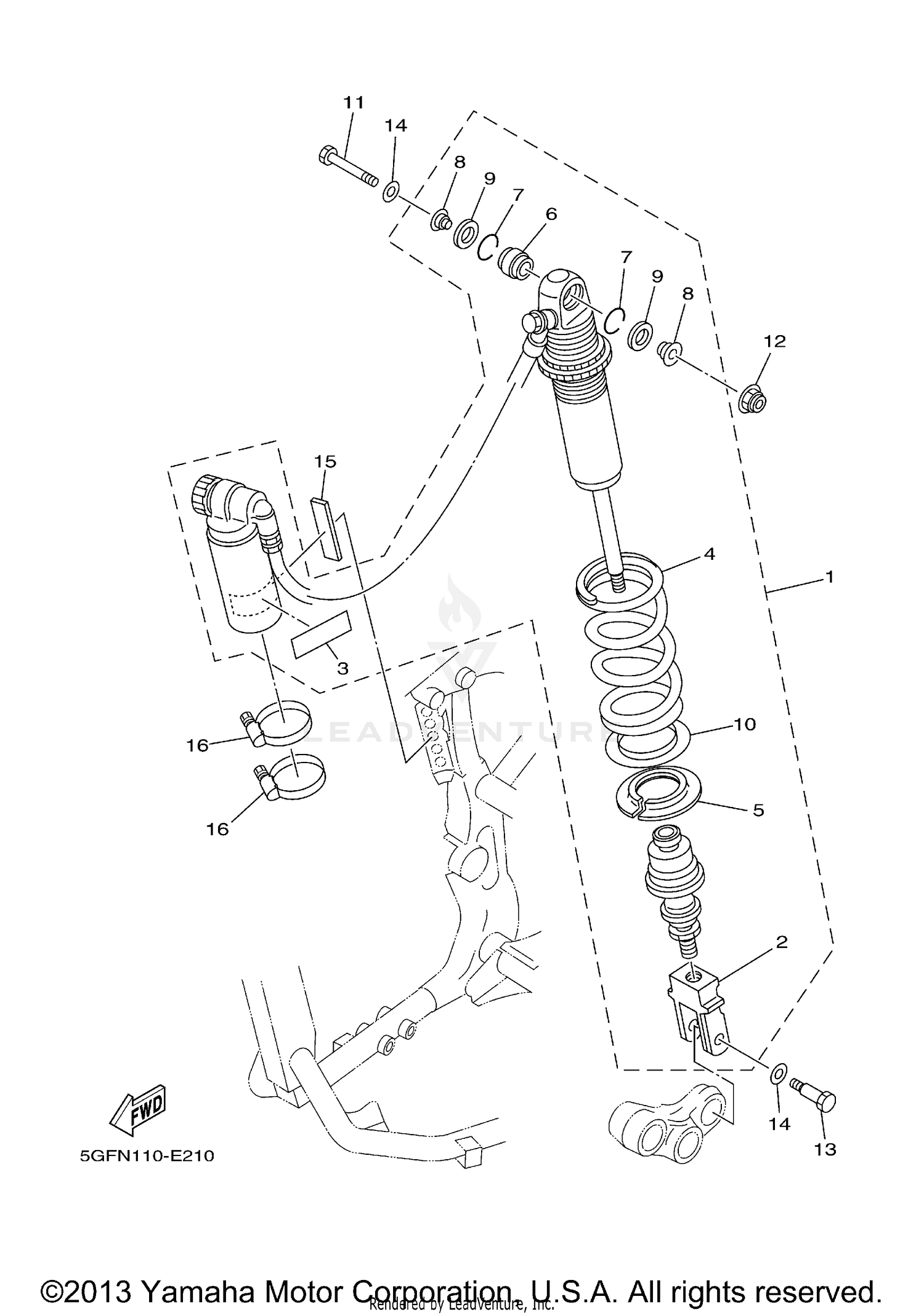

Rear Suspension Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SHOCK ABSORBER ASSY, REAR
5GF-22210-01-P0
|
$666.99 | ||
|
Unavailable |
|||
|
#2
BRACKET, UPPER
4GY-22219-00-00
|
$125.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
LABEL, WARNING
4AA-22259-80-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPRING
4GY-22212-01-P0
|
$195.83 | ||
|
Unavailable |
|||
|
#5
GUIDE, SPRING 1
3LD-22214-01-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
BEARING (93399-99934-00)
93399-99916-00
Superseded by 93399-999T3-00
|
$57.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CIRCLIP
93440-30113-00
|
$1.60 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR
90387-100Y3-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
COVER
38V-22211-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
GUIDE, SPRING 2
3XP-22224-00-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT 1
3SP-22241-00-00
|
$7.99 | ||
|
Unavailable |
|||
|
#12
NUT, U FLANGE
95607-10200-00
|
$3.95 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE
90105-10614-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLATE
90201-112U6-00
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#15
DAMPER, SUB TANK
4GY-22261-00-00
|
$2.30 | ||
|
Available to order. Add to View Price |
|||
|
#16
HOSE CLAMP ASSY
90460-55233-00
Superseded by 90450-60007-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
