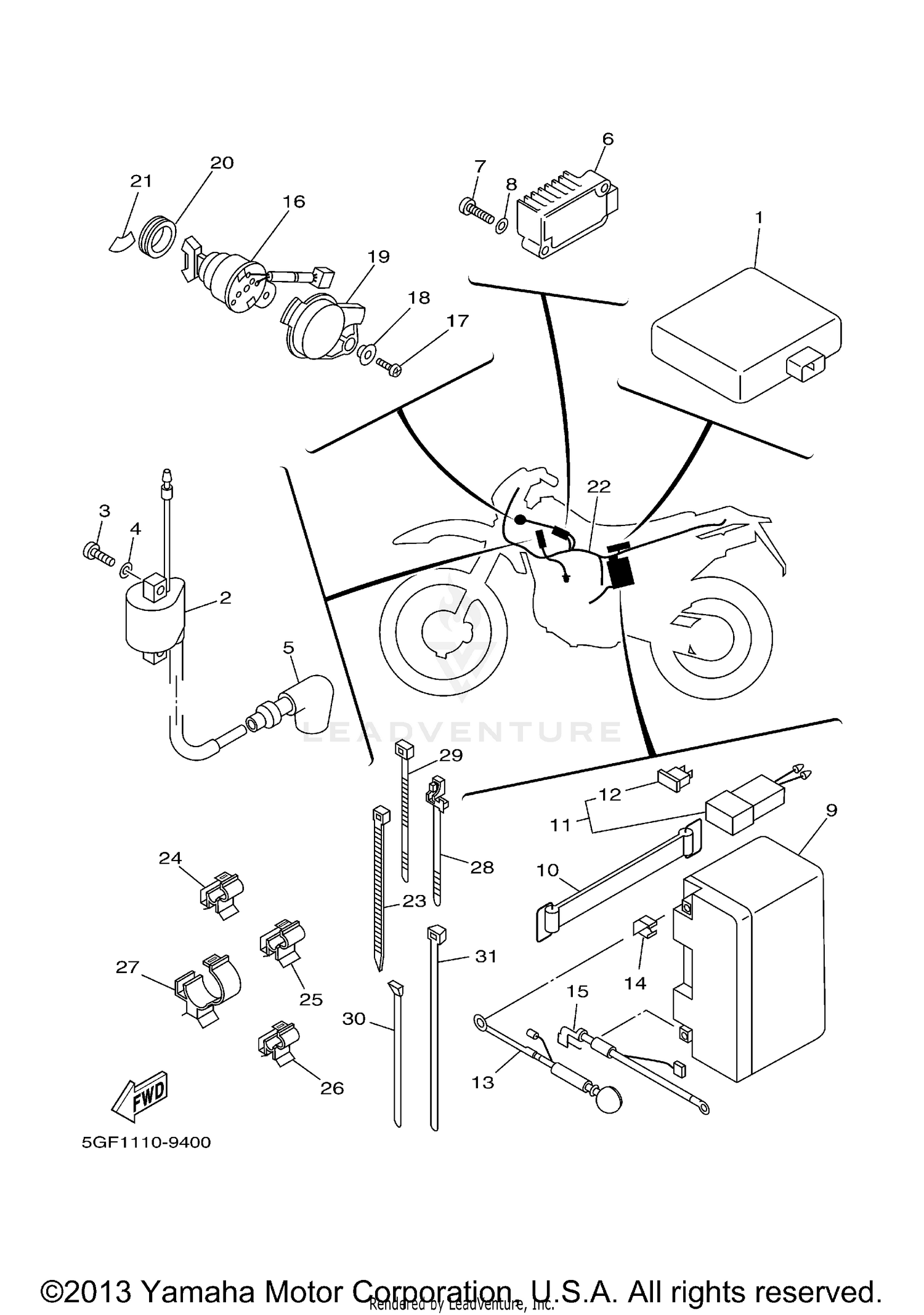

Electrical 1 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
C.D.I. UNIT ASSY
4GY-85540-00-00
|
$460.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
IGNITION COIL ASSEMBLY
29U-82310-41-00
Superseded by 1UY-82310-41-00
|
$178.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW,PAN HEAD
98507-06020-00
Superseded by 98517-06020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, PLATE
92907-06600-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLUG CAP ASSY
1LN-82370-00-00
Superseded by 4VW-82370-00-00
|
$66.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
RECTIFIER & REGULATOR ASSY
3TJ-81960-02-00
|
$163.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW, PAN HEAD
98507-06030-00
Superseded by 98517-06030-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
92907-06600-00
|
$2.55 | ||
|
Unavailable |
|||
|
#9
GT7B4 GS BATTERY -
4UC-82100-01-00
Superseded by GT7-B4000-00-00
|
$93.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BAND, BATTERY
133-82131-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
FUSE HOLDER ASSY
4RR-82150-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
FUSE (15A-BL)
36Y-82151-00-00
|
$4.75 | ||
|
Available to order. Add to View Price |
|||
|
#13
WIRE, PLUS LEAD
4RR-82115-01-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
COVER, LEAD WIRE
4GY-82119-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
WIRE, MINUS LEAD
4GY-82116-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
MAIN SWITCH ASSY
4GY-82510-10-00
|
$140.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW
90149-06228-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
COLLAR
90387-087L0-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
COVER, MAIN SWITCH
4GY-82568-01-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#20
GROMMET
90480-24222-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
EMBLEM, MAIN SWITCH
4GY-82505-00-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#22
WIRE HARNESS ASSY
5GF-82590-00-00
|
$187.67 | ||
|
Available to order. Add to View Price |
|||
|
#23
CLAMP
90464-16061-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#24
CLAMP
90464-08189-00
|
$3.30 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLAMP
90464-15195-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#26
CLAMP
90464-15192-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
CLAMP
90464-20191-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
CLAMP
90464-15200-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#29
BAND
1UA-82591-00-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#30
CLAMP
90464-15152-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
CLAMP
90465-13275-00
Superseded by 90464-15152-00
|
$5.49 | ||
|
Unavailable |
|||
