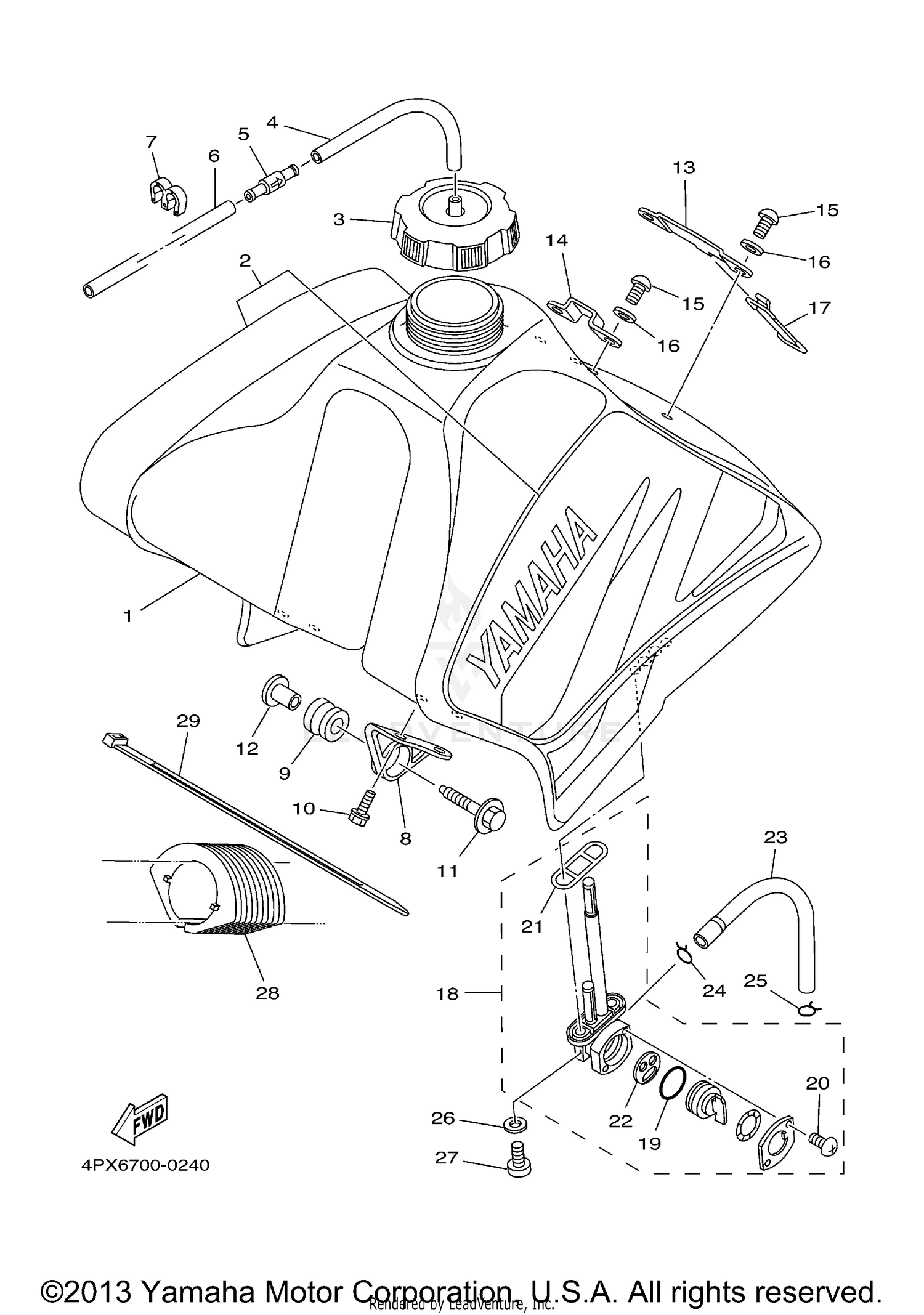

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK COMP.
4PX-24110-00-00
Superseded by 4PX-24110-30-00
|
$1,107.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GRAPHIC SET
4PX-24240-00-00
|
$172.99 | ||
|
Unavailable |
|||
|
#3
CAP ASSY
1UY-24610-00-00
Superseded by 5MV-24610-00-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIPE 5
90445-09220-00
Superseded by 5RB-24315-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIPE JOINT ASSY
3XJ-24380-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
PIPE 5
90445-09251-00
Superseded by 5RB-24315-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#7
CLAMP
90464-60067-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#8
HOLDER, DAMPER
24X-24144-00-00
Superseded by 5XE-24144-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
GROMMET
90480-18549-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, FLANGE
95027-06016-00
Superseded by 90105-06696-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, WITH WASHER
90119-06214-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, SPECIAL
3JD-24186-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BRACKT, TANK FITTING
4PX-21348-00-00
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
BRACKET, SEAT FITTING
4PX-21946-00-00
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, PAN HEAD
98507-06014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLATE
92907-06600-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
|
#17
BAND, TANK FITTING 1
4PX-24173-00-00
|
$55.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
FUEL COCK ASSY 1
2GU-24500-01-00
Superseded by 2GU-24500-02-00
|
$56.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
SEAL, COCK
3AJ-24534-00-00
Superseded by 3AJ-24534-01-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW, PAN HEAD
97801-03008-00
Superseded by 98580-03008-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#21
O-RING
4X8-24512-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
VALVE PACKING
3AJ-24523-00-00
Superseded by 3AC-24523-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
PIPE, FUEL 1
4PX-24311-00-00
Superseded by 69D-24311-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
CLIP
90467-11106-00
|
$3.55 | ||
|
Available to order. Add to View Price |
|||
|
#25
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER, PLATE
90202-05193-00
Superseded by 90202-05187-00
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCREW
90149-06011-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
DAMPER, LOCATING 4
4GY-24184-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
CLAMP
90465-13275-00
Superseded by 90464-15152-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
