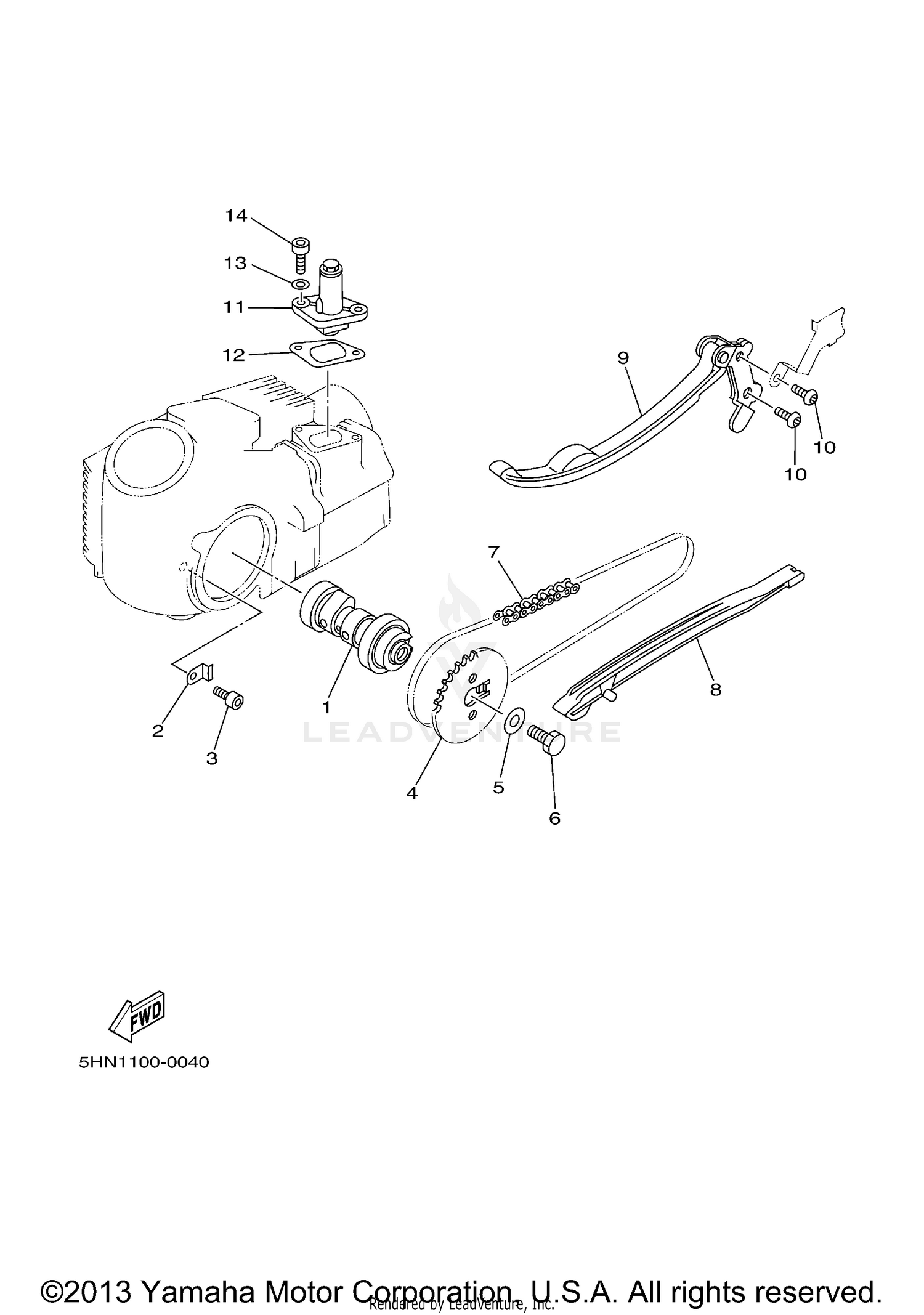

Camshaft Chain Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CAMSHAFT ASSY 1
5HN-12170-00-00
|
$144.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PLATE
4GL-1111F-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT
90110-06226-00
Superseded by 91317-06012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
SPROCKET, CAM CHAIN
4GL-12176-00-00
|
$118.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, PLATE
90201-08326-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
BOLT
90101-08590-00
|
$2.20 | ||
|
Available to order. Add to View Price |
|||
|
#7
CHAIN
94591-51084-00
|
$21.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
GUIDE, STOPPER 1
4GL-12231-00-00
|
$70.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
GUIDE, STOPPER 2
4GL-12241-00-00
|
$69.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT (4MY)
90110-06091-00
Superseded by 91317-06016-00
|
$1.15 | ||
|
Available to order. Add to View Price |
|||
|
#11
TENSIONER ASSY, CAM CHAIN
4GL-12210-00-00
|
$84.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
GASKET, TENSIONER CASE
4RF-12213-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
GASKET
90430-06014-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT (4MY)
91317-06016-00
|
$1.15 | ||
|
Unavailable |
|||
