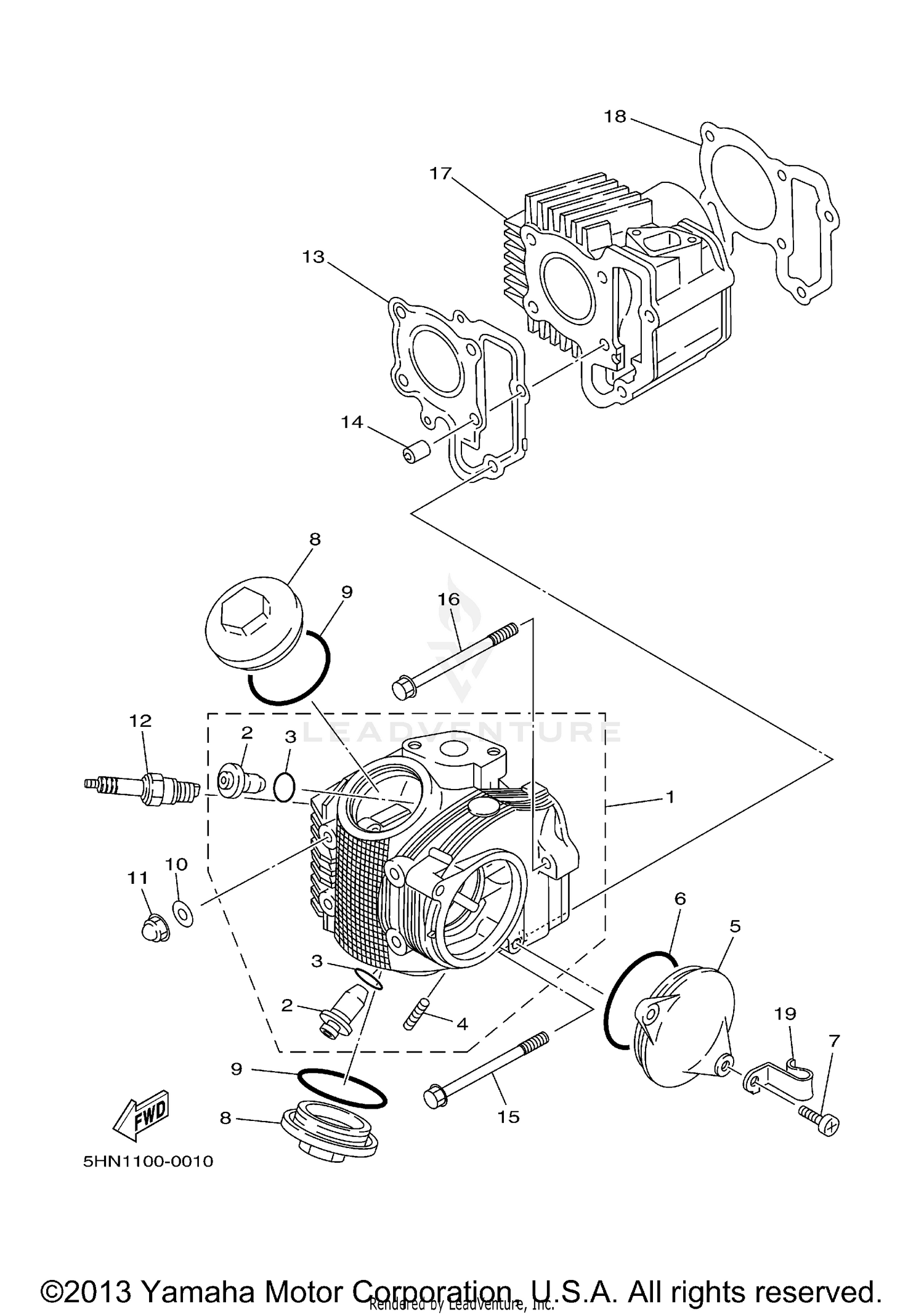

Cylinder Head Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CYLINDER HEAD ASSY
4GL-11110-11-00
|
$400.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
GUIDE, VALVE 2
4GL-11134-10-00
|
$148.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
O-RING
93210-09418-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, STUD
22F-14651-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER, CYLINDER HEAD SIDE 1
50M-11185-01-00
Superseded by 50M-11185-10-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
O-RING
93210-63556-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW,PAN HEAD
98507-06016-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER, CYLINDER HEAD SIDE 2
22F-11186-00-00
Superseded by 22F-11186-10-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
O-RING
93210-44704-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER, PLATE
90201-08609-00
Superseded by 90201-080L7-00
|
$4.55 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, CROWN
90176-08026-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
CR6HS NGK SPLUG 10 P
NGK-CR6HS-00-00
Superseded by CR6-HS000-00-00
|
$4.40 | ||
|
Available to order. Add to View Price |
|||
|
#13
GASKET, CYLINDER HEAD 1
4GL-11181-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
PIN, DOWEL
99530-10114-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE
95027-06085-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE
90105-06004-00
Superseded by 95027-06085-00
|
$8.49 | ||
|
Unavailable |
|||
|
#17
CYLINDER 1
5HN-11311-00-00
Superseded by 4GL-11311-01-00
|
$213.99 | ||
|
Unavailable |
|||
|
#18
GASKET, CYLINDER
5HN-11351-00-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLAMP
90465-08230-00
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
