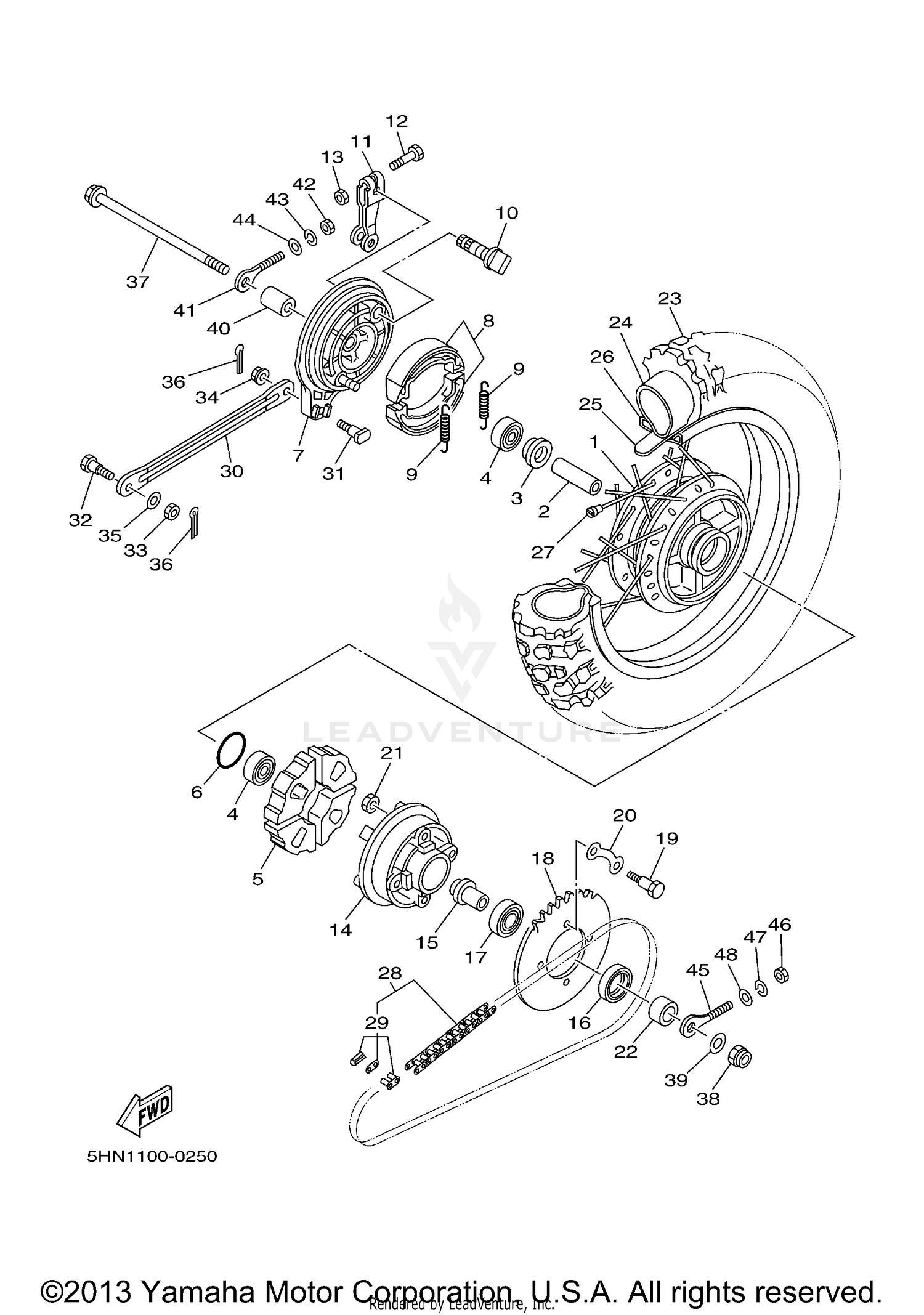

Rear Wheel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HUB, REAR
21W-25311-00-35
|
$129.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPACER
90560-12145-00
|
$18.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
FLANGE, SPACER
102-25315-00-00
Superseded by 109-25315-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BEARING
93306-30111-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
DAMPER
21W-25364-00-00
Superseded by 304-25364-01-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
O-RING
93210-41041-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
PLATE, BRAKE SHOE
31J-25321-00-35
Superseded by 31J-25321-10-00
|
$120.99 | ||
|
Unavailable |
|||
|
#8
BRAKE SHOE KIT
4BE-W2536-00-00
Superseded by 4BE-W253E-00-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING, TENSION
90506-15260-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
CAMSHAFT
3Y6-25351-00-00
Superseded by 4GL-25351-00-00
|
$65.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
LEVER, CAMSHAFT
538-25355-00-00
|
$36.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT
90101-06278-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#13
NUT
95307-06600-00
Superseded by 95317-06600-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLUTCH, HUB
296-25366-01-35
|
$62.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
AXLE, SPROCKET
21W-25387-00-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
OIL SEAL
93106-30004-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#17
BEARING
93306-00406-00
Superseded by 93306-00438-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#
BEARING
93306-00438-00
|
$34.99 | ||
|
Unavailable |
|||
|
#18
SPROCKET, DRIVEN (35T)
5A7-25435-00-00
Superseded by 5A7-25435-01-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
BOLT
90101-08672-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER
102-25412-00-00
Superseded by 4AW-25412-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT, SPECIAL SHAPE (30)
90170-08366-00
Superseded by 90179-08639-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
COLLAR
90387-207G3-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
TIRE (3.00-12 2PR)
94130-121A7-00
|
$52.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
TUBE (3.00-12 TR4)
94227-12216-00
Superseded by 94230-12208-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
BAND, RIM (1.60-12)
94330-12130-00
Superseded by 94330-12100-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
RIM (1.60-12)
94416-12334-00
Superseded by 94416-12002-00
|
$146.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
SPOKE SET, REAR
21W-25304-00-00
|
$68.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
CHAIN (DID 420 86L)
94580-52086-00
Superseded by 9Y580-52087-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
JOINT, CHAIN(DID 420M)
94680-52001-00
|
$3.05 | ||
|
Available to order. Add to View Price |
|||
|
#30
BAR, TENSION
21W-25371-00-00
|
$37.99 | ||
|
Unavailable |
|||
|
#31
BOLT
90109-08183-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT
90109-08368-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
NUT
95307-08700-00
Superseded by 95317-08700-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
NUT,FLANGE (JN5)
95707-08500-00
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#35
WASHER, PLATE
92907-08600-00
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#36
PIN. COTTER
91401-20012-00
Superseded by 91490-20015-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#37
AXLE, WHEEL
5HN-25381-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
NUT, U
95607-12100-00
Superseded by 95617-12100-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#39
WASHER, PLATE
90201-12190-00
Superseded by 90201-126A7-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#40
COLLAR
90387-12412-00
|
$16.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
PULLER, CHAIN
102-25389-00-00
Superseded by 3AC-2538G-10-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#42
NUT
95307-06600-00
Superseded by 95317-06600-00
|
$3.35 | ||
|
Unavailable |
|||
|
#43
WASHER, SPRING
92907-06100-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#44
WASHER, PLATE
90201-061A5-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#45
PULLER, CHAIN
5T9-25389-01-00
Superseded by 4GL-2538G-10-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#46
NUT
95307-06600-00
Superseded by 95317-06600-00
|
$3.35 | ||
|
Unavailable |
|||
|
#47
WASHER, SPRING
92907-06100-00
|
$4.00 | ||
|
Unavailable |
|||
|
#48
WASHER, PLATE
90201-061A5-00
|
$6.49 | ||
|
Unavailable |
|||
