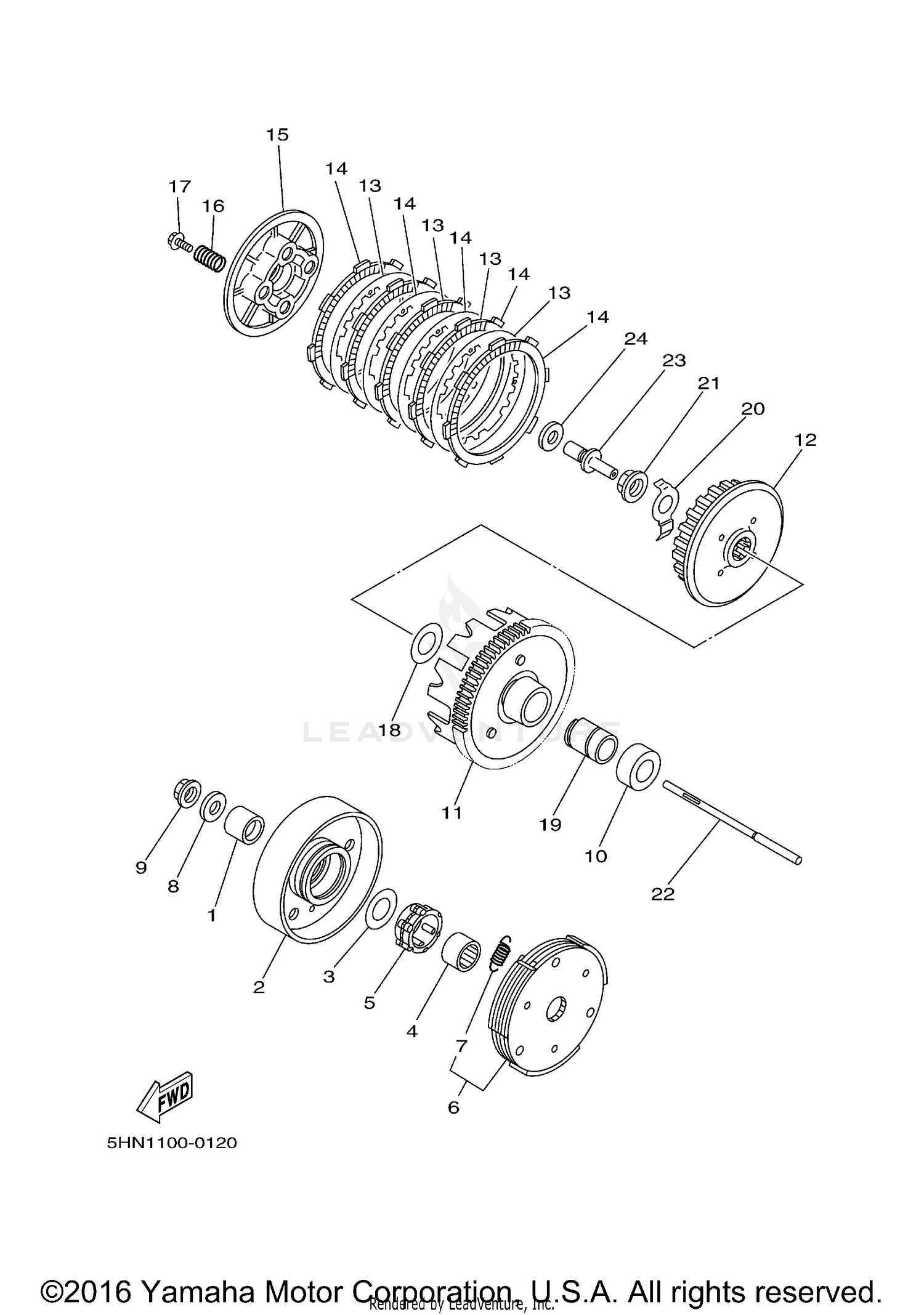

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COLLAR
90560-16385-00
Superseded by 90387-16001-00
|
$35.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
CLUTCH HOUSING COMP.
5HN-16611-00-00
|
$152.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER, PLATE
90201-167P7-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOSS, CLUTCH HOUSING
4GL-16512-01-00
|
$60.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
BEARING, ONE WAY
5HN-16664-00-00
|
$155.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
CLUTCH CARRIER ASSY
5HN-16620-00-00
Superseded by 5HN-16620-01-00
|
$219.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
SPRING, CLUTCH WEIGHT 1
5HN-16626-00-00
|
$3.30 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, PLATE
90201-122H1-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT
90179-12659-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPACER
90560-17384-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
PRIMARY DRIVEN GEAR COMP.
4ST-16150-01-00
|
$275.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOSS, CLUTCH
4GL-16371-00-00
|
$71.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
PLATE, CLUTCH 1 (F1ZR)
2JG-16324-00-00
Superseded by 4WH-E6324-00-00
|
$7.99 | ||
|
Unavailable |
|||
|
#14
PLATE, FRICTION
3YR-16321-00-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
PLATE, PRESSURE 1
2JG-16351-02-00
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#16
SPRING, COMPRESSION
90501-20002-00
|
$4.68 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT, WITH WASHER
90119-05001-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER, PLATE
90201-174L9-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPACER
90560-17328-00
|
$18.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, LOCK
4GL-16135-00-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT
90179-14001-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
ROD, PUSH 2
4GL-16357-00-00
|
$101.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
ROD, PUSH 1
2JG-16356-00-00
Superseded by 4S9-E6356-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, PLATE
90201-10591-00
Superseded by 90201-10774-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
