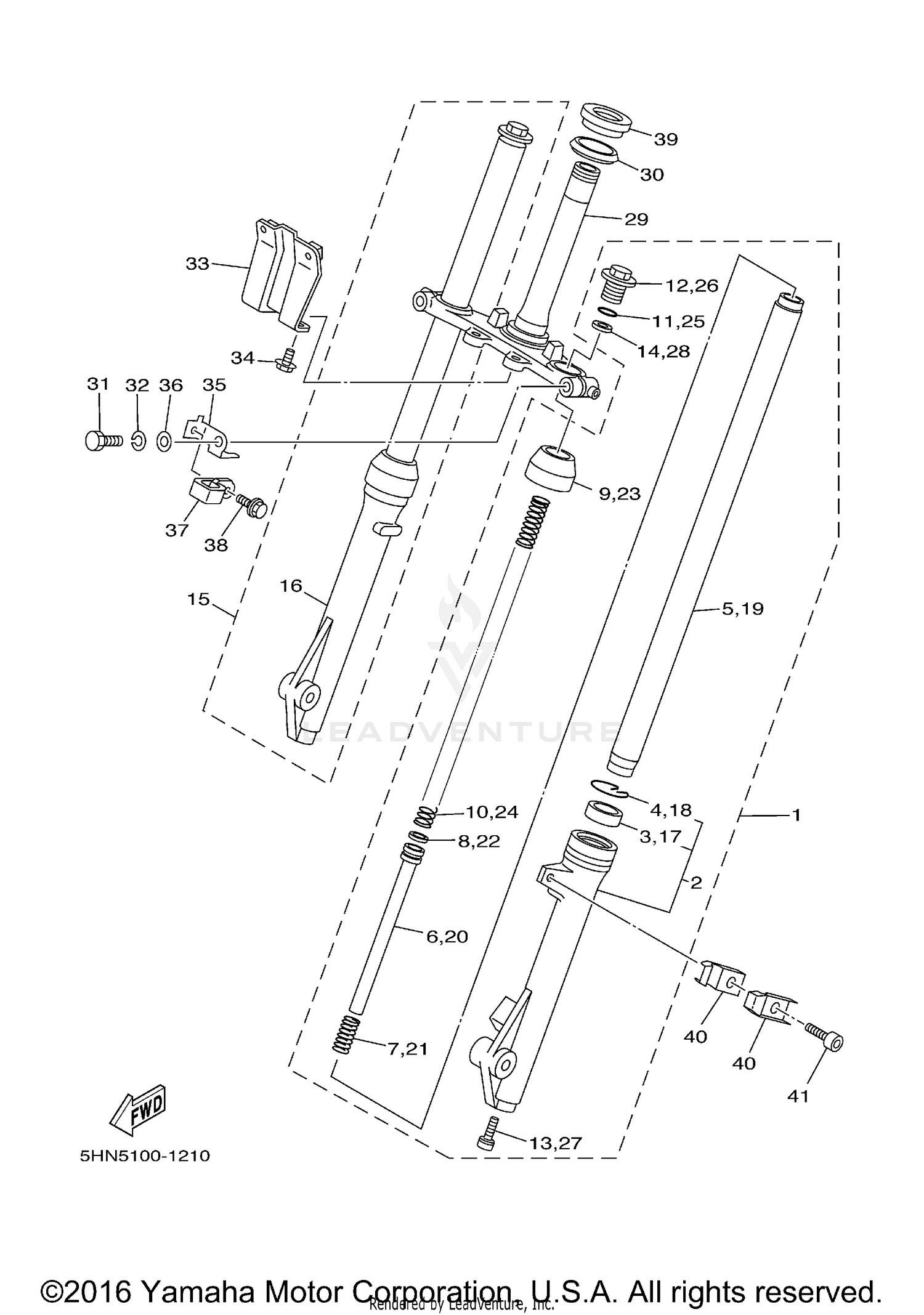

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FORK ASSY (L.H)
5HN-23102-01-00
|
$315.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
TUBE, OUTER (LEFT)
3RV-23126-01-00
|
$178.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
OIL SEAL
3M7-23145-00-00
Superseded by 1RY-23145-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
CLIP, OIL SEAL
3M7-23156-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
INNER TUBE COMP. 1
21W-23110-00-00
|
$154.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
CYLINDER COMP., FRONT FORK
5HN-23170-00-00
|
$69.99 | ||
|
Unavailable |
|||
|
#7
SPRING, REBOUND
2J5-23151-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
RING, PISTON
2J5-23157-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
SEAL, DUST
3M7-23144-00-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SPRING, FRONT FORK
21W-23141-00-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
O-RING
2J5-23147-00-00
Superseded by 93210-17570-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, CAP
3M7-23111-01-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, HEXAGON SOCKET HEAD
3M7-23181-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
SEAT, SPRING UPPER
3M7-23142-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
FRONT FORK ASSY (R.H)
5HN-23103-01-00
|
$315.99 | ||
|
Unavailable |
|||
|
#16
TUBE, OUTER (RIGHT)
3RV-23136-01-00
|
$179.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
OIL SEAL
1R7-23145-00-00
|
|||
|
Unavailable |
|||
|
#18
CLIP, OIL SEAL
3M7-23156-00-00
|
$7.99 | ||
|
Unavailable |
|||
|
#19
INNER TUBE COMP. 1
21W-23110-00-00
|
$154.99 | ||
|
Unavailable |
|||
|
#20
CYLINDER COMP., FRONT FORK
5HN-23170-00-00
|
$69.99 | ||
|
Unavailable |
|||
|
#21
SPRING, REBOUND
2J5-23151-00-00
|
$7.99 | ||
|
Unavailable |
|||
|
#22
RING, PISTON
2J5-23157-00-00
|
$7.99 | ||
|
Unavailable |
|||
|
#23
SEAL, DUST
3M7-23144-00-00
|
$19.99 | ||
|
Unavailable |
|||
|
#24
SPRING, FRONT FORK
21W-23141-00-00
|
$29.99 | ||
|
Unavailable |
|||
|
#25
O-RING
2J5-23147-00-00
Superseded by 93210-17570-00
|
$6.99 | ||
|
Unavailable |
|||
|
#26
BOLT, CAP
3M7-23111-01-00
|
$33.99 | ||
|
Unavailable |
|||
|
#27
BOLT, HEXAGON SOCKET HEAD
3M7-23181-00-00
|
$8.99 | ||
|
Unavailable |
|||
|
#28
SEAT, SPRING UPPER
3M7-23142-00-00
|
$15.49 | ||
|
Unavailable |
|||
|
#29
UNDER BRACKET COMP.
5HN-23340-00-00
|
$238.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
SEAL, DUST
164-23462-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#31
BOLT 1
451-23346-01-00
|
$10.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
WASHER, SPRING
92901-10100-00
Superseded by 92990-10100-00
|
$6.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
STAY, PLATE
5HN-23486-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
BOLT
5HN-23492-00-00
|
$3.69 | ||
|
Available to order. Add to View Price |
|||
|
#35
BRACKET 1
5HN-2334G-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#36
WASHER, PLATE
92903-10600-00
Superseded by 92990-10600-00
|
$2.75 | ||
|
Available to order. Add to View Price |
|||
|
#37
HOLDER
5HN-23857-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#38
BOLT, FLANGE
90105-05002-00
|
$2.29 | ||
|
Available to order. Add to View Price |
|||
|
#39
BEARING
93399-99942-00
|
$83.99 | ||
|
Available to order. Add to View Price |
|||
|
#40
CLAMP
90462-14055-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#41
BOLT
91317-06012-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
