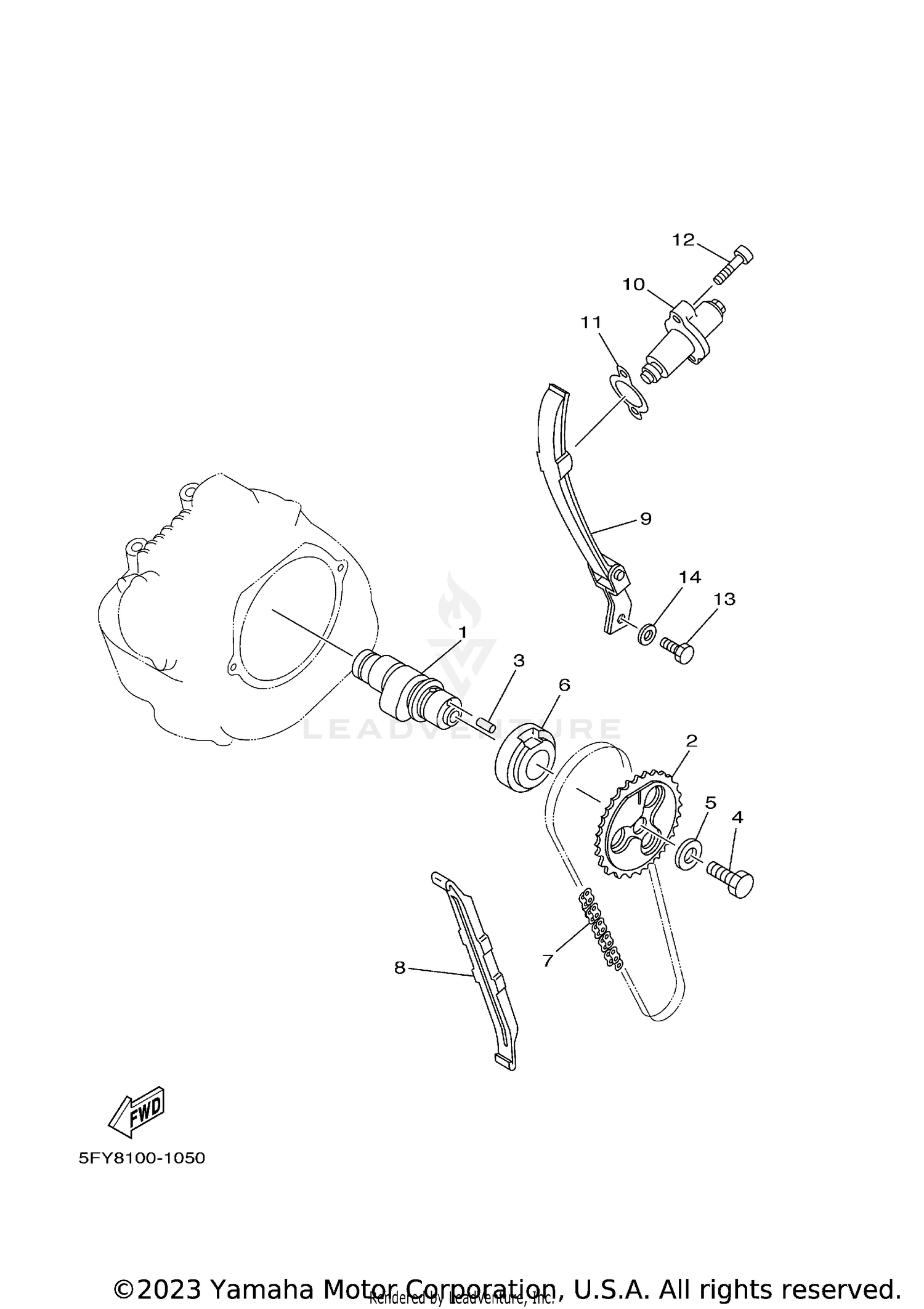

Camshaft Chain Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CAMSHAFT 1
36X-12171-00-00
Superseded by 36X-12171-01-00
|
$147.99 | ||
|
Unavailable |
|||
|
#2
SPROCKET, CAM CHAIN
1KH-12176-00-00
|
$110.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIN, DOWEL
93604-10011-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT
90101-10303-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
WASHER, PLATE
90201-10591-00
Superseded by 90201-10774-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
COLLAR
90387-255F3-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
CHAIN (DID25SH 104L)
94580-41104-00
|
$77.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
GUIDE, STOPPER 1
5H0-12231-00-00
Superseded by 5H0-12231-01-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
GUIDE, STOPPER 2
5N0-12241-00-00
Superseded by 5N0-12241-01-00
|
$54.99 | ||
|
Unavailable |
|||
|
#10
TENSIONER ASSY, CAM CHAIN
3GC-12210-10-00
|
$110.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
GASKET, TENSIONER CASE
4FM-12213-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, HEXAGON SOCKET HEAD
91317-06025-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT
97027-06016-00
Superseded by 97017-06016-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, PLATE
92907-06600-00
|
$2.55 | ||
|
Available to order. Add to View Price |
|||
