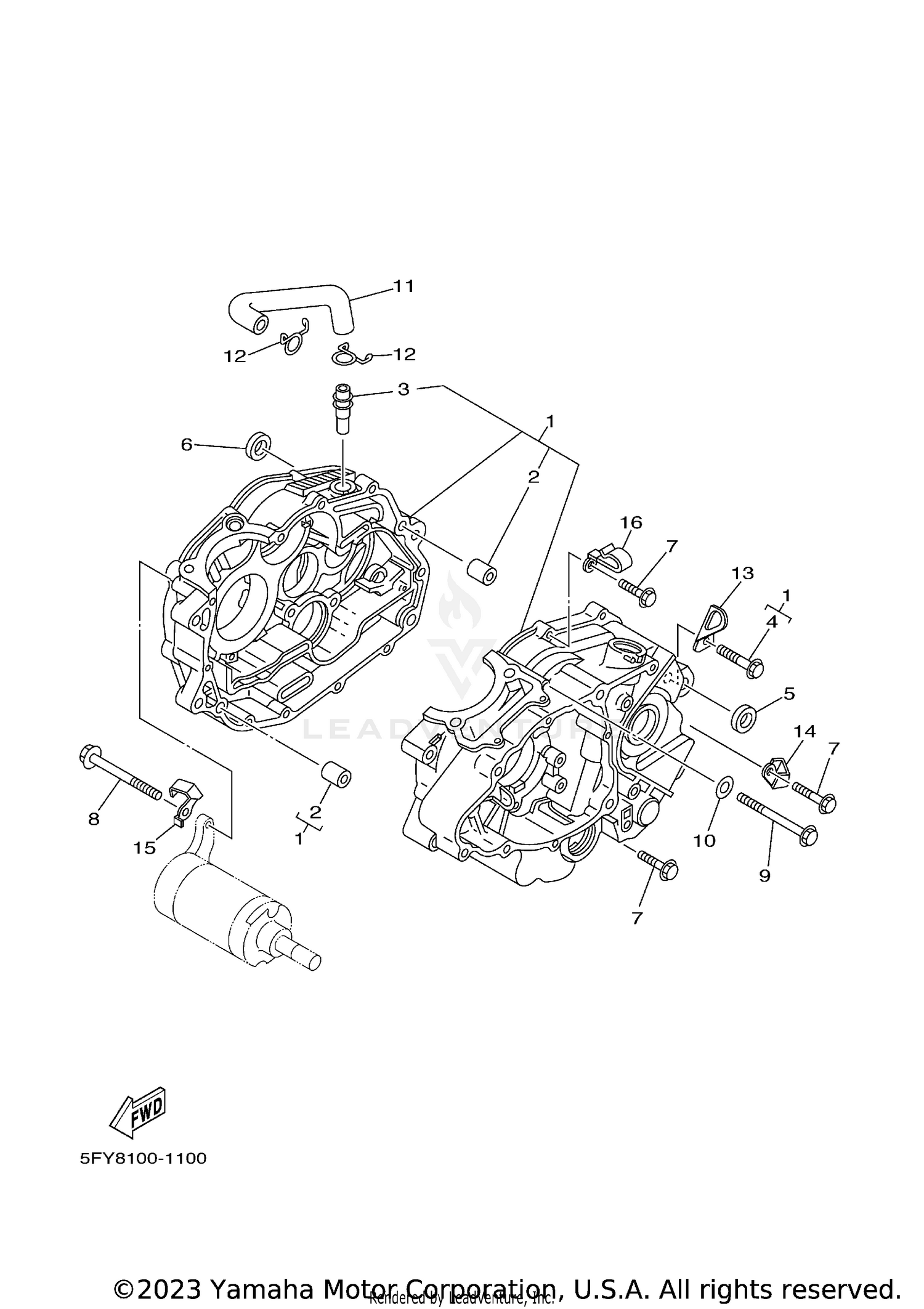

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CRANKCASE ASSY
1RL-15100-03-00
|
$792.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
PIN, DOWEL
99530-12016-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#3
PIPE, BREATHER 2
371-11167-01-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, FLANGE
95027-06040-00
|
$3.10 | ||
|
Available to order. Add to View Price |
|||
|
#5
COLLAR
90387-125F1-00
|
$2.85 | ||
|
Available to order. Add to View Price |
|||
|
#6
COLLAR
90387-125F1-00
|
$2.85 | ||
|
Unavailable |
|||
|
#7
BOLT, FLANGE
95027-06030-00
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE
95027-06090-00
|
$2.10 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT, FLANGE
95027-06085-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
GASKET
90430-06014-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
PIPE, BREATHER 1
3Y1-11166-00-00
|
$22.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLIP
90467-14015-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
CLAMP
90465-08020-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLAMP
90462-08225-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLAMP
90462-08224-00
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#16
CLAMP
90465-08127-00
Superseded by 90465-06376-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
