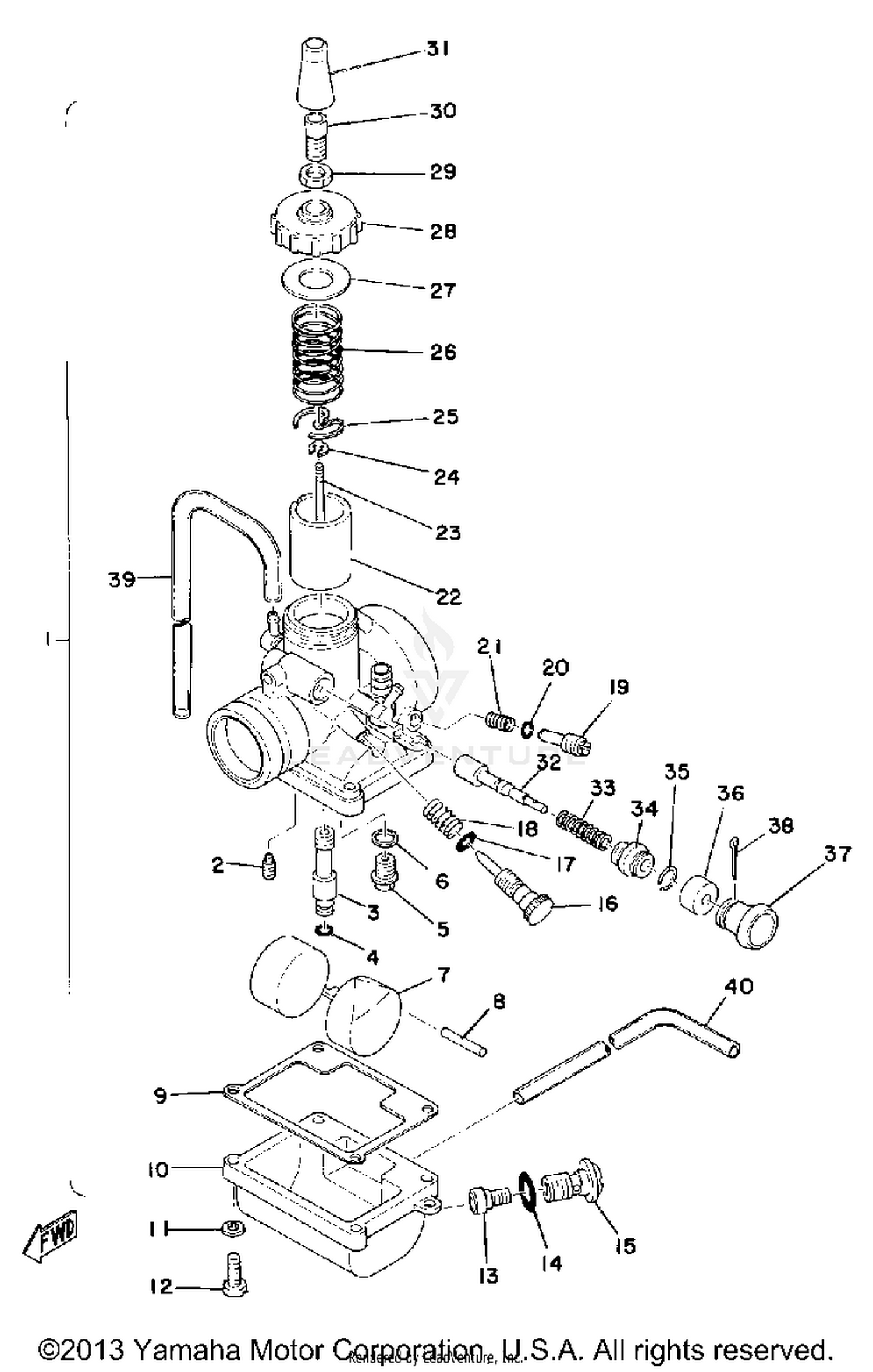

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CARBURETOR ASSEMBLY 1
525-14101-61-00
|
$81.92 | ||
|
Unavailable |
|||
|
#2
JET, PILOT (# 25)
260-14142-25-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
NOZZLE, MAIN
525-14141-30-00
|
$6.92 | ||
|
Unavailable |
|||
|
#4
O-RING
214-14147-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
NEEDLE VALVE ASSEMBLY (#1.8)
353-14190-18-00
|
$39.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER, NEEDLE VALVE
127-14195-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
FLOAT
525-14185-00-00
|
$27.99 | ||
|
Unavailable |
|||
|
#8
PIN, FLOAT
127-14186-00-00
|
$6.25 | ||
|
Available to order. Add to View Price |
|||
|
#9
GASKET, FLOAT CHAMBER
304-14184-00-00
|
$14.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
BODY, FLOAT CHMBR 1
493-14181-00-33
|
$21.99 | ||
|
Unavailable |
|||
|
#11
WASHER, SPRING
92901-04100-00
Superseded by 92990-04100-00
|
$0.84 | ||
|
Available to order. Add to View Price |
|||
|
#12
SCREW, PAN HEAD
98503-04014-00
Superseded by 98580-04014-00
|
$4.42 | ||
|
Available to order. Add to View Price |
|||
|
#13
JET, MAIN (#230)
137-14143-46-A1
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, MAIN (#240)
137-14143-48-A1
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, MAIN (#250)
137-14143-50-A1
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
O-RING
93220-09001-00
|
$4.73 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, BANJO
493-14166-00-00
|
$13.36 | ||
|
Unavailable |
|||
|
#16
SCREW, THROTTLE
493-14122-00-00
|
$48.99 | ||
|
Unavailable |
|||
|
#17
O-RING
361-14147-00-00
|
$7.99 | ||
|
Unavailable |
|||
|
#18
SPRING, THROTTLE STOP
493-14133-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
AIR SCREW SET
10W-14104-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
O-RING
354-14147-00-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
SPRING, AIR ADJUSTING
174-14134-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
VALVE, THROTTLE 1
304-14112-30-00
|
$16.74 | ||
|
Unavailable |
|||
|
#23
NEEDLE
18L-1490J-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
CLIP
164-14137-00-00
Superseded by 3FA-14137-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
SEAT, SPRING
137-14136-00-00
|
$14.99 | ||
|
Unavailable |
|||
|
#26
SPRING, THRTL VALVE
3X3-14131-00-00
|
$13.49 | ||
|
Available to order. Add to View Price |
|||
|
#27
GASKET
193-14126-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
TOP, MIXING CHAMBER
525-14158-00-33
|
$5.02 | ||
|
Unavailable |
|||
|
#29
NUT, CABLE ADJUSTING
802-14161-00-00
|
$7.99 | ||
|
Available to order. Add to View Price |
|||
|
#30
SCREW, CABLE ADJUSTING
360-14124-20-00
|
$12.49 | ||
|
Unavailable |
|||
|
#31
CAP
525-14169-00-00
|
$3.96 | ||
|
Unavailable |
|||
|
#32
PLUNGER, STARTER
304-14171-00-00
|
$41.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
SPRING, PLUNGER
156-14135-00-00
|
$8.99 | ||
|
Available to order. Add to View Price |
|||
|
#34
CAP, PLUNGER
152-14174-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
CLIP, PLUNGER
152-14138-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#36
COVER, PLUNGER CAP
132-14173-00-00
|
$9.99 | ||
|
Available to order. Add to View Price |
|||
|
#37
HOLDER
304-14261-00-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#38
PIN, COTTER
91490-16020-00
|
$6.20 | ||
|
Available to order. Add to View Price |
|||
|
#39
PIPE, AIRVENT
313-14197-00-00
|
$4.84 | ||
|
Unavailable |
|||
|
#40
PIPE, AIRVENT
23F-14197-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
