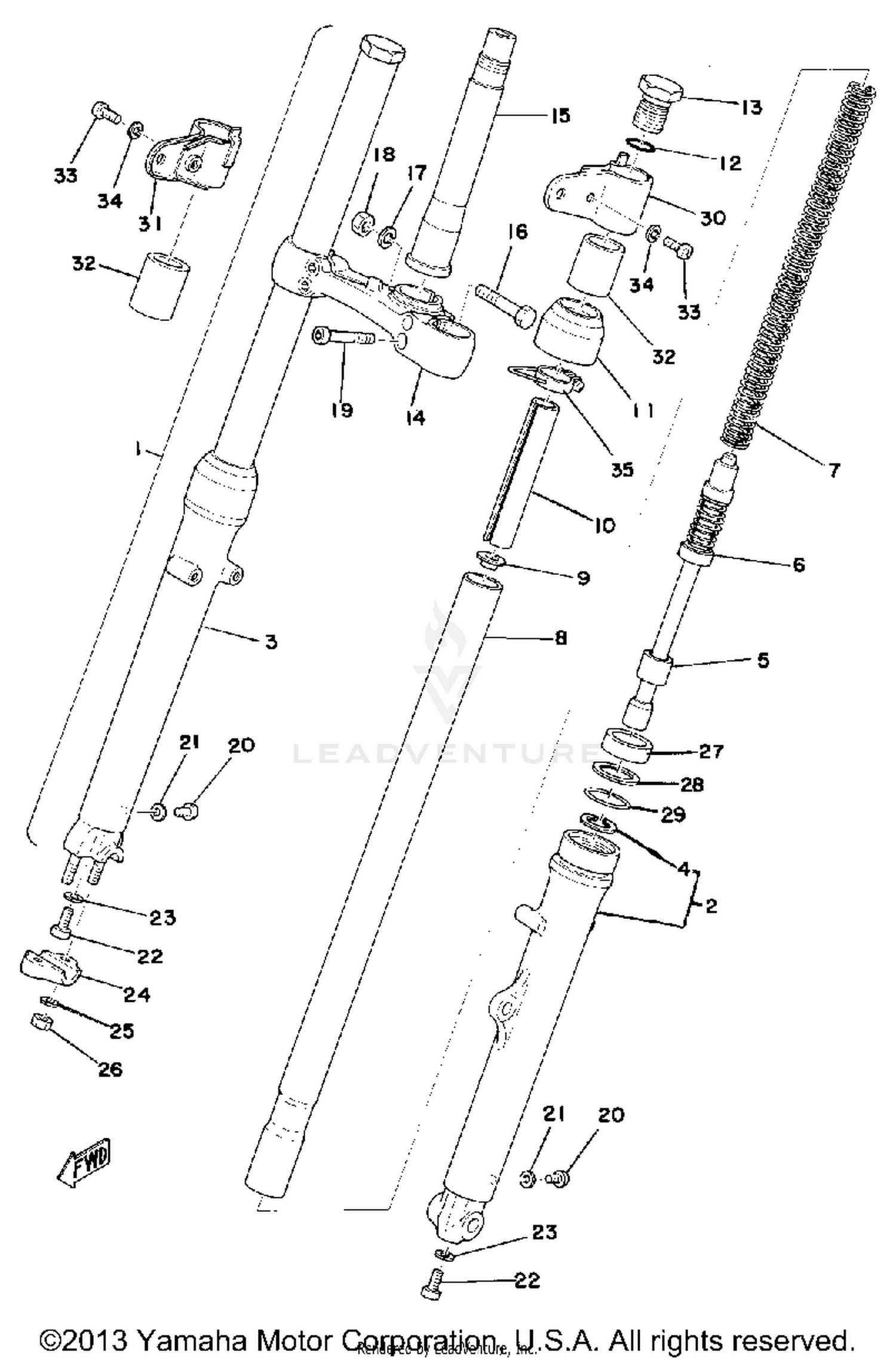

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONT FORK ASSEMBLY
525-23101-01-00
|
$203.99 | ||
|
Unavailable |
|||
|
#2
TUBE, OUTER 1
525-23126-00-00
|
$69.99 | ||
|
Unavailable |
|||
|
#3
TUBE, OUTER 2
525-23136-00-00
|
$76.99 | ||
|
Unavailable |
|||
|
#4
CIRCLIP
535-23183-01-00
|
$4.10 | ||
|
Unavailable |
|||
|
#5
NO LONGER AVAILABLE
535-23171-00-00
|
$6.44 | ||
|
Unavailable |
|||
|
#6
CYLINDER, FRTFRK
525-23170-00-00
|
$56.74 | ||
|
Unavailable |
|||
|
#7
SPRING, FRONT FORK
525-23141-01-00
|
$25.99 | ||
|
Unavailable |
|||
|
#8
TUBE, INNER 1
525-23124-00-00
|
$74.77 | ||
|
Unavailable |
|||
|
#9
SEAT, SPRING UPPER
304-23142-50-00
|
$4.60 | ||
|
Unavailable |
|||
|
#10
SPACER
315-23118-50-00
|
$5.24 | ||
|
Unavailable |
|||
|
#11
SEAL, DUST
535-23144-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
O-RING
146-23114-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, CAP
2K5-23111-00-00
|
$24.99 | ||
|
Unavailable |
|||
|
#14
BRACKET, LOWER
525-23345-00-00
|
$62.68 | ||
|
Unavailable |
|||
|
#15
SHAFT, STEERING
516-23341-31-00
|
$63.99 | ||
|
Unavailable |
|||
|
#16
BOLT 2
322-23356-00-00
|
$3.57 | ||
|
Unavailable |
|||
|
#17
WASHER, SPRING
92990-10100-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
NUT
322-23357-00-00
|
$2.58 | ||
|
Unavailable |
|||
|
#19
BOLT 1
322-23346-00-00
|
$3.96 | ||
|
Unavailable |
|||
|
#20
SCREW, PAN HEAD
98580-04008-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
GASKET, DRAIN PLUG
122-23129-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, HEXAGON SOCKET HEAD
91311-08020-00
Superseded by 91314-08020-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
GASKET
214-23158-00-00
|
$3.76 | ||
|
Unavailable |
|||
|
#24
HOLDER, AXLE
315-23167-51-00
|
$101.99 | ||
|
Unavailable |
|||
|
#25
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
NUT, HEXAGON
90170-08176-00
|
$1.74 | ||
|
Unavailable |
|||
|
#27
OIL SEAL
137-23145-01-00
|
$42.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, OIL SEAL
315-23146-50-00
|
$2.97 | ||
|
Unavailable |
|||
|
#29
CLIP, OIL SEAL
315-23156-50-00
|
$3.16 | ||
|
Unavailable |
|||
|
#30
COVER, UPPER 1
525-23121-00-93
|
$21.99 | ||
|
Unavailable |
|||
|
#31
COVER, UPPER 2
525-23131-00-93
|
$21.99 | ||
|
Unavailable |
|||
|
#32
GASKET
525-23163-00-00
|
$3.57 | ||
|
Unavailable |
|||
|
#33
SCREW, PAN HEAD
98580-06018-00
Superseded by 97880-06018-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#34
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#35
HOLDER, CABLE 1
525-23318-01-00
|
$6.66 | ||
|
Unavailable |
|||
