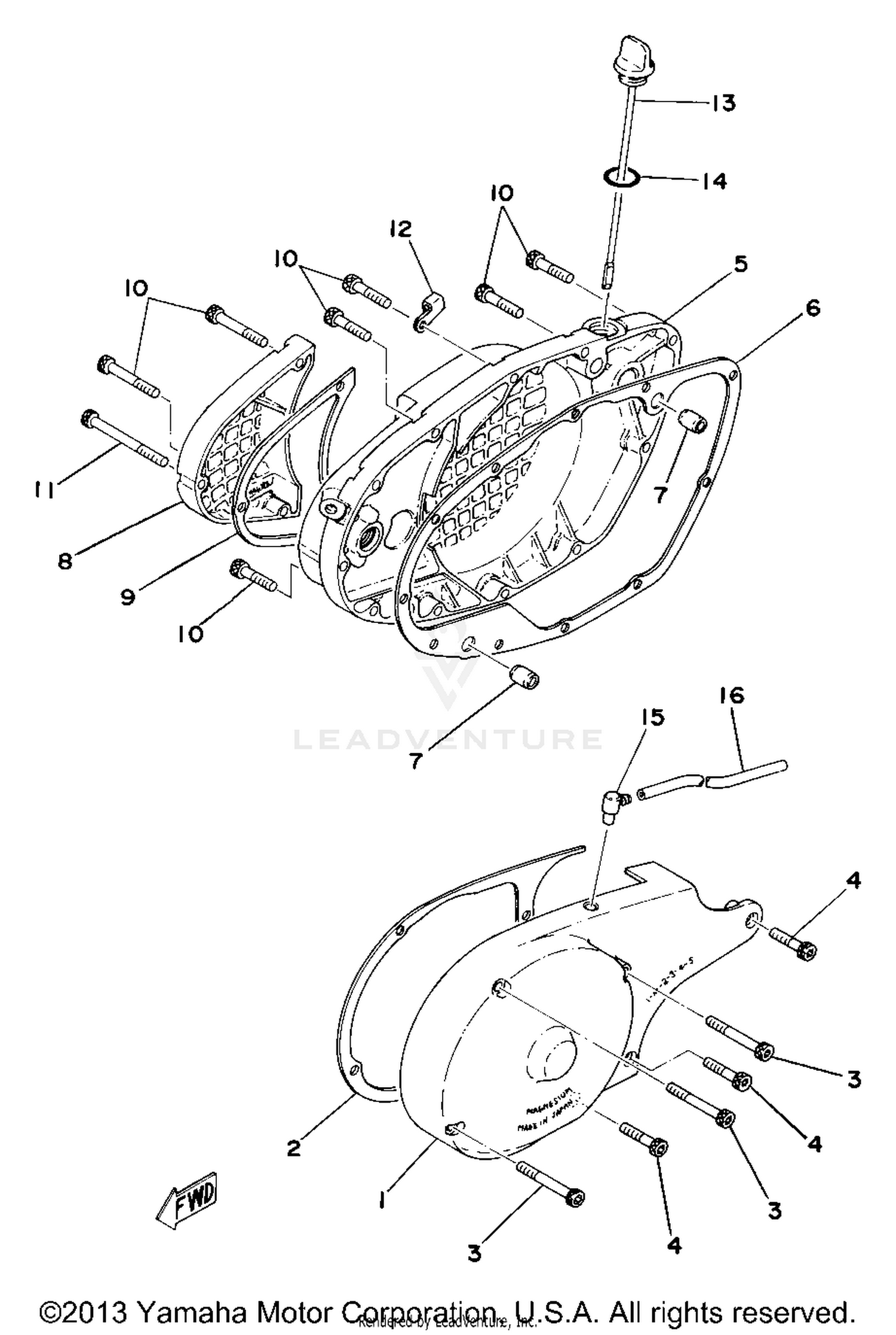

Crankcase Cover Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
COVER, CRANKCASE L
493-15411-00-00
|
$65.31 | ||
|
Unavailable |
|||
|
#2
GASKET
434-15451-00-00
Superseded by 434-15451-10-00
|
$20.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
BOLT
91316-06050-00
Superseded by 91317-06050-00
|
$3.65 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOLT, HEXAGON SOCKET HEAD
90110-06138-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER, CRANKCASE 3
493-15431-00-00
|
$118.99 | ||
|
Unavailable |
|||
|
#6
GASKET,CROCS CVR 2
434-15461-00-00
Superseded by 434-15461-10-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
PIN, DOWEL
99510-12016-00
Superseded by 99530-12016-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#8
COVER, OIL PUMP
493-15416-00-00
|
$50.93 | ||
|
Unavailable |
|||
|
#9
GASKET, O/PMP CVR 1
493-15456-00-00
|
$3.36 | ||
|
Unavailable |
|||
|
#10
BOLT, HEXAGON SOCKET HEAD
90110-06138-00
|
$5.49 | ||
|
Unavailable |
|||
|
#11
BOLT
91316-06070-00
Superseded by 91317-06070-00
|
$4.70 | ||
|
Available to order. Add to View Price |
|||
|
#12
CLAMP
90465-10072-00
|
$1.01 | ||
|
Unavailable |
|||
|
#13
PLUG, OIL
498-15363-00-00
|
$7.90 | ||
|
Unavailable |
|||
|
#14
O-RING
93210-19123-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#15
BREATHER
583-15371-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
HOSE (L310)
90445-07040-00
Superseded by 90445-072G8-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
