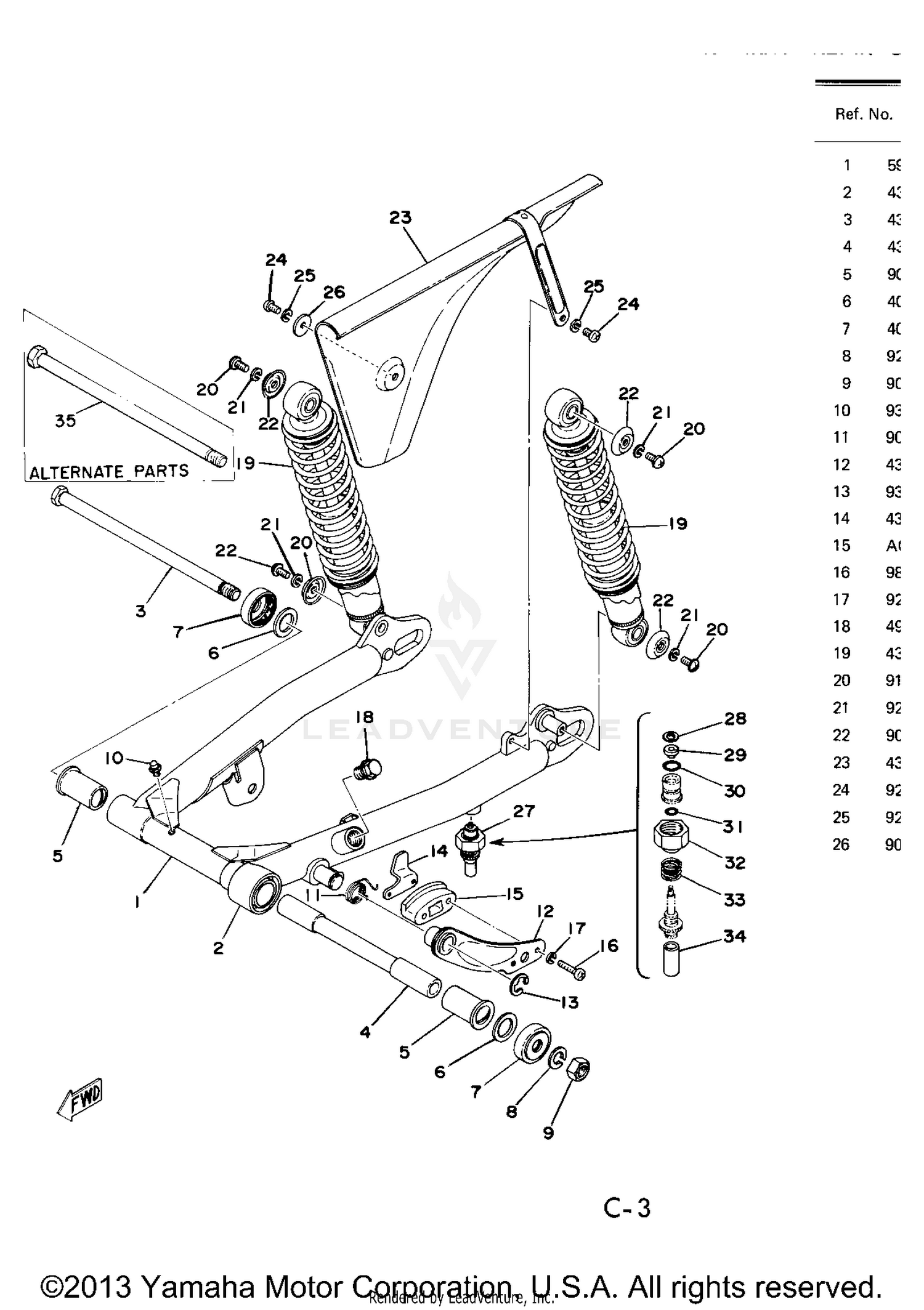

Rear Arm - Rear Cushion - Chain Case Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
UNAVAILABLE IN PRICE BOOK
593-22110-02-35
|
|||
|
Unavailable |
|||
|
#2
SEAL, GUARD
434-22151-00-00
|
$4.15 | ||
|
Unavailable |
|||
|
#3
SHAFT, PIVOT
34X-22141-00-00
|
$32.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
BUSH 2
434-22124-01-00
|
$43.99 | ||
|
Unavailable |
|||
|
#5
BUSH
90386-18028-00
|
$24.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
SHIM
401-22127-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#
1
COV-ER,TH-RU-ST
|
|||
|
Unavailable |
|||
|
#8
WASHER, SPRING
92901-12100-00
Superseded by 92990-12100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
NUT, HEXAGON
90170-12132-00
|
$2.39 | ||
|
Unavailable |
|||
|
#10
NIPPLE, GREASE
93700-06005-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
SPRING, TORSION
90508-32140-00
|
$4.70 | ||
|
Unavailable |
|||
|
#12
ARM, TENSIONER
434-22179-00-93
|
$17.60 | ||
|
Unavailable |
|||
|
#13
CIRCLIP
93430-10015-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
GUARD, CHAIN
434-22153-00-00
|
$18.49 | ||
|
Unavailable |
|||
|
#15
TENSIONER (2N0-22178-00-00)
ACC-11130-00-25
|
$9.45 | ||
|
Unavailable |
|||
|
#16
SCREW, PAN HEAD
98503-05025-00
Superseded by 98580-05525-00
|
$1.85 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, SPRING
92990-05100-00
|
$0.30 | ||
|
Available to order. Add to View Price |
|||
|
#18
CAP
493-21815-00-00
|
$17.60 | ||
|
Unavailable |
|||
|
#19
SHK/ABS ASSEMBLY, REAR
434-22210-01-00
|
$126.99 | ||
|
Unavailable |
|||
|
#20
SCREW, BIND
98903-06012-00
Superseded by 98980-06012-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, FINISH
90207-06009-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
CASE, CHAIN
434-22311-00-35
|
$43.24 | ||
|
Unavailable |
|||
|
#24
SCREW, PAN HEAD (92503-06010-00
98580-06010-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, SPRING
92995-06100-00
|
$3.20 | ||
|
Unavailable |
|||
|
#26
WASHER PLAIN
90201-06067-00
Superseded by 90201-06380-00
|
$0.55 | ||
|
Available to order. Add to View Price |
|||
|
#27
CHAIN OILER ASSEMBLY
434-22280-02-00
|
$31.99 | ||
|
Unavailable |
|||
|
#28
NUT, SPRING
90183-03009-00
|
$0.19 | ||
|
Unavailable |
|||
|
#29
GASKET, VALVE
434-22283-00-00
|
$3.16 | ||
|
Unavailable |
|||
|
#30
O-RING
93210-09091-00
|
$0.94 | ||
|
Unavailable |
|||
|
#31
O-RING
93210-05098-00
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#32
NUT, OILER
434-22281-01-00
|
$7.99 | ||
|
Unavailable |
|||
|
#33
SPRING
434-22286-00-00
|
$0.25 | ||
|
Unavailable |
|||
|
#34
TUBE
434-22285-00-00
|
$1.38 | ||
|
Unavailable |
|||
|
#35
SHAFT, PIVOT
493-22141-00-00
|
$8.88 | ||
|
Unavailable |
|||
