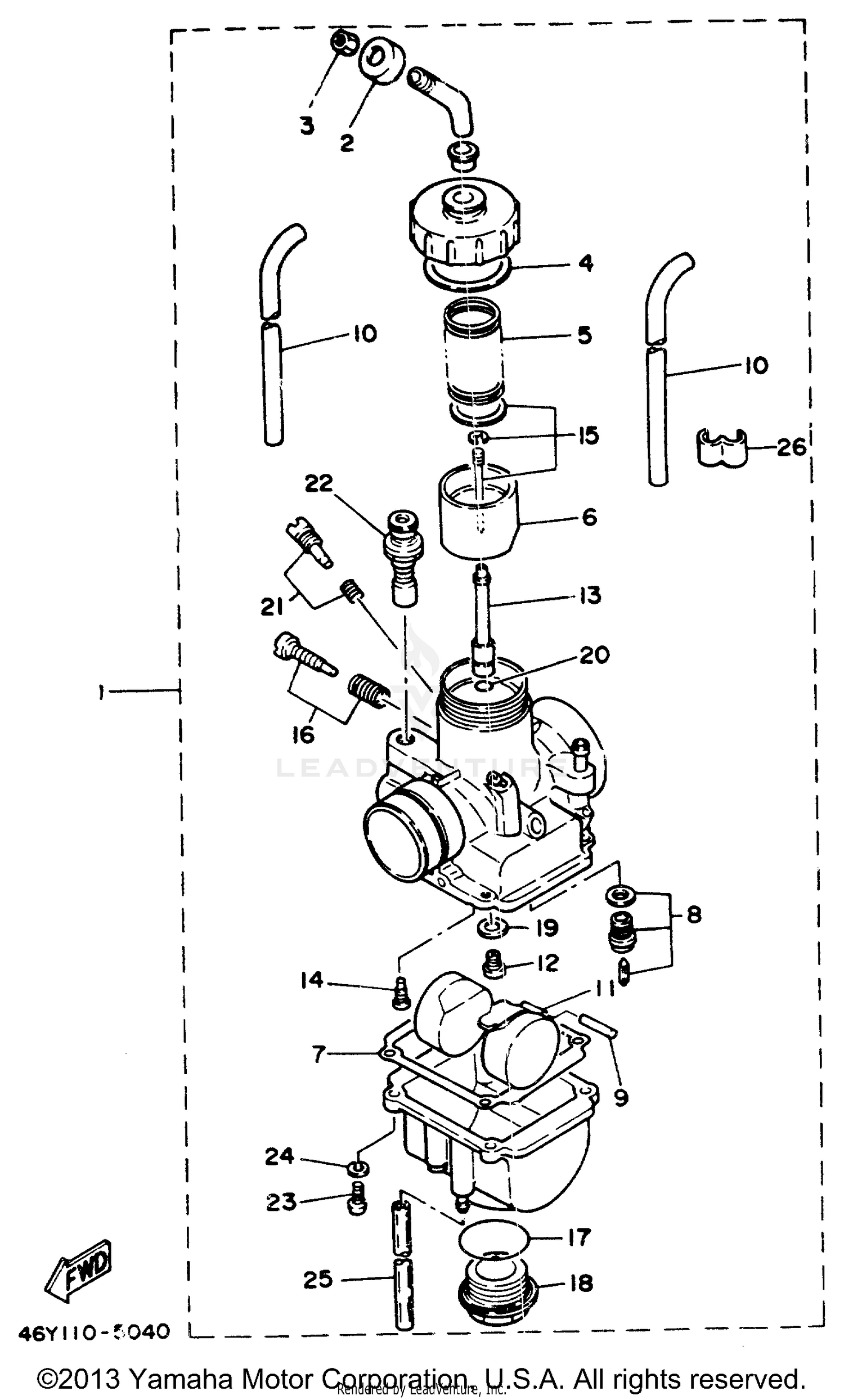

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
CARBURETOR ASSEMBLY
46Y-14301-01-00
|
$271.99 | ||
|
Unavailable |
|||
|
#2
CAP
15A-14118-00-00
|
$19.49 | ||
|
Unavailable |
|||
|
#3
NUT, CABLE ADJUSTING
288-14161-00-00
Superseded by 85L-14161-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
GASKET
434-14126-00-00
|
$6.06 | ||
|
Unavailable |
|||
|
#5
SPRING, THRTL VALVE
434-14331-00-00
|
$25.99 | ||
|
Unavailable |
|||
|
#6
VALVE, THROTTLE 1
1LW-14312-25-00
|
$94.99 | ||
|
Unavailable |
|||
|
#7
GASKET,FLOAT CHMBR
434-14384-00-00
Superseded by 4ML-14384-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
NEEDLE VALVE SET
46Y-14107-00-00
|
$53.99 | ||
|
Available to order. Add to View Price |
|||
|
#9
PIN, FLOAT
647-14386-10-00
|
$1.80 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIPE
367-14396-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#11
FLOAT
46Y-14385-00-00
|
$67.99 | ||
|
Available to order. Add to View Price |
|||
|
#12
MAIN JET #146
288-14343-73-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, MAIN (#140)
288-14343-70-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#
JET, MAIN (150)
288-14343-75-00
Superseded by 288-14329-75-00
|
$6.49 | ||
|
Unavailable |
|||
|
#13
NOZZLE, MAIN
38V-14341-00-00
|
$28.27 | ||
|
Unavailable |
|||
|
#14
JET, PILOT #38
43F-14342-68-00
|
$4.00 | ||
|
Unavailable |
|||
|
#
JET, PILOT (#36)
43F-14342-18-00
|
$22.99 | ||
|
Unavailable |
|||
|
#
JET, PILOT (#38)
43F-14342-19-00
|
$30.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
NEEDLE SET
38V-1490J-00-00
|
$12.49 | ||
|
Unavailable |
|||
|
#16
THROTTLE SCREW SET
46Y-14103-00-00
|
$6.99 | ||
|
Unavailable |
|||
|
#17
O-RING
38V-14397-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
DRAIN PLUG
38V-14191-00-00
|
$17.99 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER, MAIN JET
38V-14153-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
O-RING
360-24512-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#21
AIR SCREW SET
46Y-14104-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#22
PLUNGER, STARTER
38V-14371-00-00
|
$74.99 | ||
|
Available to order. Add to View Price |
|||
|
#23
SCREW, PAN HEAD
98503-04014-00
Superseded by 98580-04014-00
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER, PLATE
92901-04600-00
Superseded by 92990-04600-00
|
$4.99 | ||
|
Available to order. Add to View Price |
|||
|
#25
PIPE
367-14396-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#26
PIPE
44J-14349-00-00
|
$6.90 | ||
|
Available to order. Add to View Price |
|||
