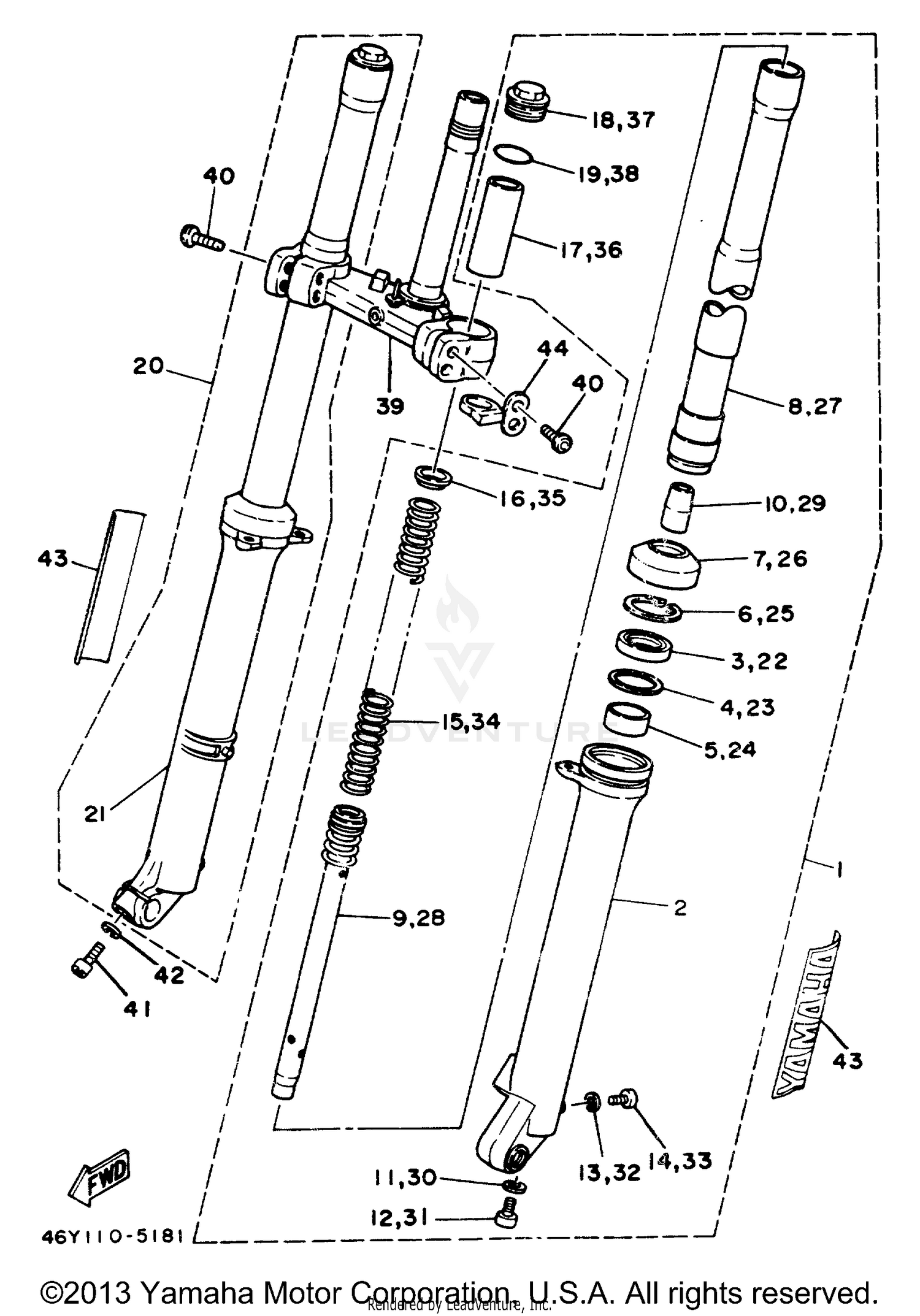

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FRONTFORK ASSEMBLY LH
53Y-23102-00-00
|
$269.99 | ||
|
Unavailable |
|||
|
#2
OUTER TUBE LH
38V-23126-00-FH
|
$188.99 | ||
|
Unavailable |
|||
|
#3
OIL SEAL
48Y-23145-00-00
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#4
WASHER, SPRING UPPER
5K5-23149-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
METAL, SLIDE 1
30X-23125-00-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
RING, SNAP
4A1-23156-00-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#7
SEAL, DUST
3J2-23144-00-00
|
$31.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
INNER TUBE
38V-23110-00-00
|
$243.99 | ||
|
Unavailable |
|||
|
#9
CYLINDER, FRTFRK
38V-23170-00-00
|
$45.40 | ||
|
Unavailable |
|||
|
#10
SPINDLE, TAPER
1W1-23173-L0-00
|
$29.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
GASKET
509-23158-L0-00
|
$15.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, HEXAGON SOCKET HEAD
278-23181-50-00
Superseded by 3D8-23181-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
GASKET, DRAIN PLUG
122-23129-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW, PAN HEAD
4H7-23119-00-00
Superseded by 98517-04006-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#15
SPRING
38V-23141-00-00
|
$27.99 | ||
|
Unavailable |
|||
|
#16
SEAT, SPRING UPPER
1W1-23142-L0-00
|
$13.49 | ||
|
Unavailable |
|||
|
#17
SPACER
38V-23118-01-00
Superseded by 4V5-23118-L1-00
|
$12.99 | ||
|
Unavailable |
|||
|
#18
BOLT, CAP
53Y-23111-00-00
|
$32.99 | ||
|
Unavailable |
|||
|
#19
GASKET
1W1-23114-L0-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
FRONT FORK ASSEMBLY RH
53Y-23103-00-00
|
$269.99 | ||
|
Unavailable |
|||
|
#21
OUTER TUBE RH
38V-23136-00-FH
|
$133.99 | ||
|
Unavailable |
|||
|
#22
OIL SEAL
48Y-23145-00-00
|
$28.99 | ||
|
Unavailable |
|||
|
#23
WASHER, SPRING UPPER
5K5-23149-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#24
METAL, SLIDE 1
30X-23125-00-00
|
$27.99 | ||
|
Unavailable |
|||
|
#25
RING, SNAP
4A1-23156-00-00
|
$5.49 | ||
|
Unavailable |
|||
|
#26
SEAL, DUST
3J2-23144-00-00
|
$31.99 | ||
|
Unavailable |
|||
|
#27
INNER TUBE
38V-23110-00-00
|
$243.99 | ||
|
Unavailable |
|||
|
#28
CYLINDER, FRTFRK
38V-23170-00-00
|
$45.40 | ||
|
Unavailable |
|||
|
#29
SPINDLE, TAPER
1W1-23173-L0-00
|
$29.99 | ||
|
Unavailable |
|||
|
#30
GASKET
509-23158-L0-00
|
$15.49 | ||
|
Unavailable |
|||
|
#31
BOLT, HEXAGON SOCKET HEAD
278-23181-50-00
Superseded by 3D8-23181-00-00
|
$8.49 | ||
|
Unavailable |
|||
|
#32
GASKET, DRAIN PLUG
122-23129-00-00
|
$7.49 | ||
|
Unavailable |
|||
|
#33
SCREW, PAN HEAD
4H7-23119-00-00
Superseded by 98517-04006-00
|
$4.15 | ||
|
Unavailable |
|||
|
#34
SPRING
38V-23141-00-00
|
$27.99 | ||
|
Unavailable |
|||
|
#35
SEAT, SPRING UPPER
1W1-23142-L0-00
|
$13.49 | ||
|
Unavailable |
|||
|
#36
SPACER
38V-23118-01-00
Superseded by 4V5-23118-L1-00
|
$12.99 | ||
|
Unavailable |
|||
|
#37
BOLT, CAP
53Y-23111-00-00
|
$32.99 | ||
|
Unavailable |
|||
|
#38
GASKET
1W1-23114-L0-00
|
$9.49 | ||
|
Unavailable |
|||
|
#39
UNDER BRACKET (46Y-23340-00)
46Y-23340-00-39
|
$363.99 | ||
|
Unavailable |
|||
|
#40
BOLT, HEXAGON SOCKET HEAD
90110-08071-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#41
BOLT, SKT HEAD 46Y
91311-08028-00
|
$0.75 | ||
|
Unavailable |
|||
|
#42
WASHER, SPRING
92990-08100-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#43
EMBLEM, YAMAHA
38V-21784-00-00
Superseded by 99241-00140-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#44
HOLDER, CABLE
3R4-23317-00-00
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
