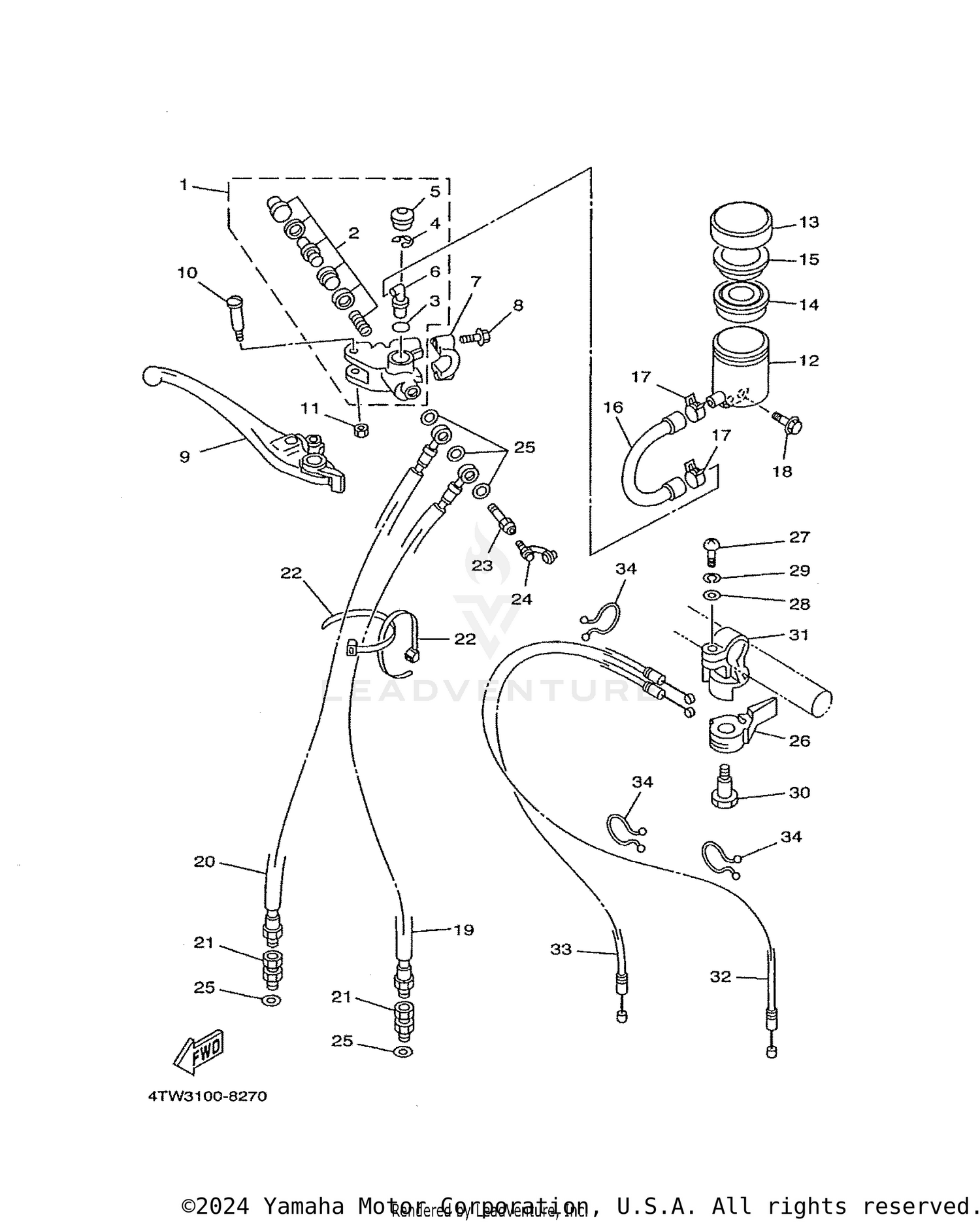

Front Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
MASTER CYLINDER SUB ASSY
3FV-W2587-00-00
|
$204.99 | ||
|
Unavailable |
|||
|
#2
CYLINDER KIT, MASTER
4K0-W0041-50-00
|
$87.99 | ||
|
Available to order. Add to View Price |
|||
|
#3
O-RING
93210-15620-00
Superseded by 93210-15566-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
CIRCLIP
2VN-25866-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
COVER, DUST
3FV-2589A-00-00
|
$19.49 | ||
|
Available to order. Add to View Price |
|||
|
#6
JOINT
2VN-2582A-50-00
|
$19.99 | ||
|
Available to order. Add to View Price |
|||
|
#7
BRACKET, MASTER CYLINDER
56A-25867-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#8
BOLT, FLANGE
95026-06025-00
Superseded by 95027-06025-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#9
LEVER 2
4JT-83922-00-00
|
$80.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOLT, LEVER
3FV-2589F-00-00
|
$15.99 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, U
95606-06100-00
Superseded by 95617-06100-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#12
TANK, RESERVOIR
3FV-25894-00-00
|
$57.99 | ||
|
Available to order. Add to View Price |
|||
|
#13
CAP, RESERVOIR
3FV-25852-00-00
Superseded by 3GM-25852-50-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#14
DIAPHRAGM, RESERVOIR
3FV-25854-00-00
|
$25.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
BUSH, DIAPHRAGM
2J2-25855-50-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
HOSE
3YL-2582F-00-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
|
#17
CLIP, PIPE 1
3PA-24356-00-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT, FLANGE
95027-06014-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
HOSE, BRAKE 1
4DP-25872-01-00
|
$139.73 | ||
|
Unavailable |
|||
|
#20
HOSE, BRAKE 2
4TW-25873-01-00
|
$121.99 | ||
|
Unavailable |
|||
|
#21
JOINT
3LC-25885-00-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
CLAMP
90465-13275-00
Superseded by 90464-15152-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, UNION
90401-10174-00
|
$4.75 | ||
|
Unavailable |
|||
|
#24
BLEED SCREW KIT
36Y-W0048-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER, PLATE
90201-10118-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#26
LEVER, STARTER
240-83941-00-00
|
$176.99 | ||
|
Available to order. Add to View Price |
|||
|
#27
SCREW, PAN HEAD
98507-06018-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER, PLATE
90201-12175-00
|
$7.49 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER, SPRING
92907-06100-00
|
$4.00 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT
90109-08398-00
|
$12.49 | ||
|
Unavailable |
|||
|
#31
HOLDER, STARTER LEVER
240-83946-00-00
|
$155.99 | ||
|
Available to order. Add to View Price |
|||
|
#32
CABLE, STARTER 1
4DP-26331-00-00
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#33
CABLE, STARTER 2
4DP-26334-00-00
Superseded by 4DP-26334-01-00
|
$11.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
CLAMP
90464-23041-00
Superseded by 90464-25267-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
