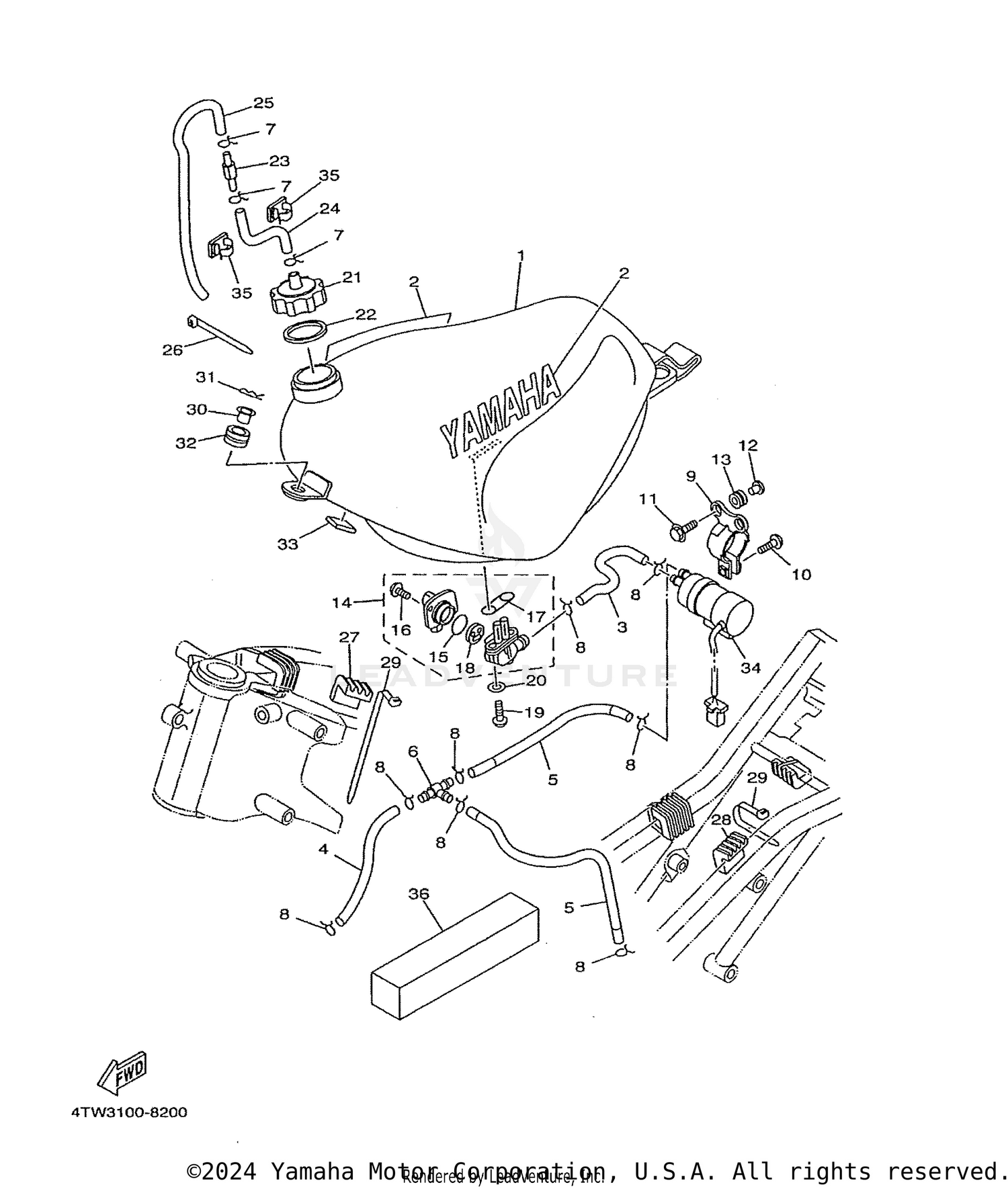

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FUEL TANK COMP.
4TW-24110-00-36
|
$1,248.99 | ||
|
Available to order. Add to View Price |
|||
|
#2
EMBLEM, YAMAHA
99237-00180-00
|
$22.99 | ||
|
Unavailable |
|||
|
#3
PIPE, FUEL 1
4JT-24311-01-00
|
$14.99 | ||
|
Unavailable |
|||
|
#4
HOSE
90445-111K1-00
Superseded by 90445-117F2-00
|
$27.99 | ||
|
Available to order. Add to View Price |
|||
|
#5
HOSE (L390)
90445-110H4-00
Superseded by 90445-110H9-00
|
$12.99 | ||
|
Available to order. Add to View Price |
|||
|
#6
JOINT, FUEL PIPE
1X2-24376-00-00
|
$41.99 | ||
|
Unavailable |
|||
|
#7
CLIP
90467-09006-00
Superseded by 90467-090A2-00
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLIP
90467-10008-00
Superseded by 90467-100A1-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#9
BRACKET, FUEL PUMP
3CV-24491-10-00
|
$37.99 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW, BIND
98907-05008-00
|
$2.05 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT, WITH WASHER
90119-06096-00
|
$3.75 | ||
|
Available to order. Add to View Price |
|||
|
#12
COLLAR
90387-06737-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
GROMMET
90480-13163-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
FUEL COCK ASSY 1
4JT-24500-00-00
Superseded by 4JT-24500-20-00
|
$103.99 | ||
|
Available to order. Add to View Price |
|||
|
#15
SEAL, COCK
3AJ-24534-00-00
Superseded by 3AJ-24534-01-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW, PAN HEAD
97801-03008-00
Superseded by 98580-03008-00
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#17
O-RING
4X8-24512-00-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#18
VALVE PACKING
3AJ-24523-00-00
Superseded by 3AC-24523-00-00
|
$12.49 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW
90149-06011-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER, PLATE
90202-05193-00
Superseded by 90202-05187-00
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
|
#21
BODY, CAP
2A6-24611-00-00
|
$39.99 | ||
|
Unavailable |
|||
|
#22
GASKET, CAP
1W1-24612-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#23
PIPE JOINT ASSY
3XJ-24380-00-00
|
$34.99 | ||
|
Available to order. Add to View Price |
|||
|
#24
TUBE, FLEXIBLE VINYL (91A-20050
91A20-05020-00
Superseded by 91A20-05039-00
|
$2.10 | ||
|
Available to order. Add to View Price |
|||
|
#25
TUBE, FLEXIBLE VINYL
91A20-05095-00
Superseded by 91A20-05145-00
|
$26.99 | ||
|
Available to order. Add to View Price |
|||
|
#26
BAND
90465-13152-00
Superseded by 1UA-82591-00-00
|
$4.60 | ||
|
Available to order. Add to View Price |
|||
|
#27
DAMPER, LOCATING 1
4DP-24181-00-00
|
$40.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
DAMPER,LOCATING 2
3LC-24182-00-00
Superseded by 1RK-24182-00-00
|
$23.99 | ||
|
Available to order. Add to View Price |
|||
|
#29
CLAMP
90465-13275-00
Superseded by 90464-15152-00
|
$5.49 | ||
|
Available to order. Add to View Price |
|||
|
#30
COLLAR
90387-083U8-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#31
CLIP
4JT-2411M-00-00
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#32
GROMMET
90480-18418-00
Superseded by 90480-18495-00
|
$8.49 | ||
|
Available to order. Add to View Price |
|||
|
#33
DAMPER, LOCATING 1
22F-24181-00-00
|
$6.49 | ||
|
Available to order. Add to View Price |
|||
|
#34
FUEL PUMP COMP.
4NK-13907-00-00
Superseded by 4NK-13907-01-00
|
$240.99 | ||
|
Available to order. Add to View Price |
|||
|
#35
CLAMP
90464-25160-00
|
$10.49 | ||
|
Available to order. Add to View Price |
|||
|
#36
PLATE 1
4JT-2411R-00-00
|
$14.99 | ||
|
Available to order. Add to View Price |
|||
